ATE

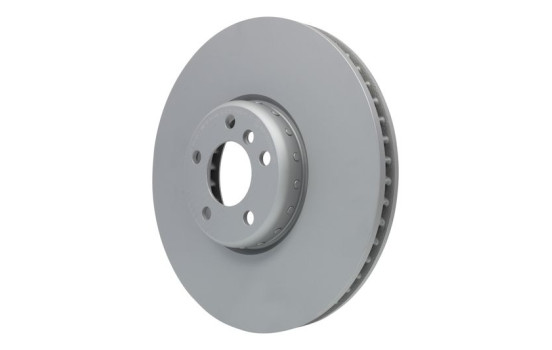

Brake Disc 24.0136-0121.2 ATE

Product number: 0385064

Manufacturer number: 24.0136-0121.2

EAN: 4006633372503

€ 246,37

Incl. VAT
View product specifications
In stock
Delivery 05-11-2024
Secure payment

  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

  • Specifications

    Application: brake disc

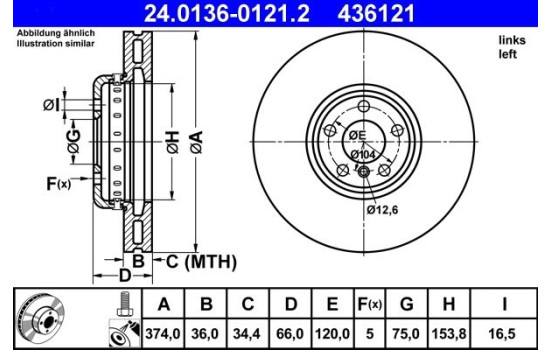

    Outer diameter [mm]374,0
    Brake Disc TypeVented
    SurfaceCoated
    Number of Holes5
    AssemblyFront
    Brake padsExclusive
    Inner diameter [mm]153,8
    Paired article numbers24.0136-0120.2
    Bolt Hole Circle Ø [mm]120,0
    Brake Disc TypeTwo-piece brake disc
    Centering Diameter [mm]75,0
    MachiningHigh-carbon
    Bore Ø [mm]16,5
    Inspection TagE1 90R-02C0391 / 1034
    MAPP code available
    Guarantee2 years
    Height [mm]66,0
    Additional informationWith screws
    Brake disc thickness (mm)36,0
    Minimum thickness (mm)34,4

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 19007
    AP 25522 Z
    ASHIKA 60-00-0135C
    ASHIKA 60-00-0135
    ATE 24.0136-0121.2 (this product)
    BLUE PRINT ADBP430023
    € 105,33
    BOSCH 0 986 479 E30
    € 238,20
    BRECO BZ 9132
    BREMBO 09.C416.13
    € 246,58
    BREMSI CD8619VLS
    CAR 242.1936
    DJ PARTS BD2945
    FEBI BILSTEIN 171459
    € 126,80
    FERODO DDF2619LVC-1
    GIRLING 6066225
    HELLA 8DD 355 120-701
    HELLA PAGID 8DD 355 120-701
    € 214,65
    JAPANPARTS DI-0135
    JAPANPARTS DI-0135C
    JAPANPARTS DI0135JM
    Manufacturer Manufacturer number Price
    JAPKO 600135
    JAPKO 600135C
    JURID 563204JVC-1
    KAWE 61905 10
    LYNXauto BN-1327L
    MAGNETI MARELLI 360406131904
    OPTIMAL BS-9340HC
    PILENGA V729L.B1
    PROTECHNIC PRD3109
    ROTINGER RT 22183-GL T5
    ROTINGER RT 22183-GL
    ROTINGER RT 22183
    ROTINGER RT 22183-GL T6
    ROTINGER RT 22183-GL T3
    ROTINGER RT 22183-GL T9
    SWAG 33 10 5262
    TEXTAR 92266225
    € 255,16
    TRW DF6622S
    € 212,51
    ZIMMERMANN 150.2914.32
    € 190,95
    ZIMMERMANN 150.2914.20
    € 114,75
  • Applicability

    BMW
    5 Gran
    5 Gran Turismo (F07) | 01.2009-02.2017 550 i - 4395ccm, 408pk, 300kw - N63 B44 A
    5 Gran Turismo (F07) | 01.2009-02.2017 550 i - 4395ccm, 449pk, 330kw - N63 B44 A, N63 B44 B
    5 Gran Turismo (F07) | 01.2009-02.2017 550 i xDrive - 4395ccm, 408pk, 300kw - N63 B44 A
    5 Gran Turismo (F07) | 01.2009-02.2017 550 i xDrive - 4395ccm, 449pk, 330kw - N63 B44 B
    7
    7 (F01, F02, F03, F04) | 02.2008-12.2015 750 d xDrive - 2993ccm, 381pk, 280kw - N57 D30 C
    7 (F01, F02, F03, F04) | 02.2008-12.2015 750 i, Li - 4395ccm, 408pk, 300kw - N63 B44 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 750 i, Li - 4395ccm, 449pk, 330kw - N63 B44 B
    7 (F01, F02, F03, F04) | 02.2008-12.2015 750 i, Li xDrive - 4395ccm, 408pk, 300kw - N63 B44 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 750 i, Li xDrive - 4395ccm, 449pk, 330kw - N63 B44 B
    7 (F01, F02, F03, F04) | 02.2008-12.2015 760 i, Li - 5972ccm, 544pk, 400kw - N74 B60 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 ActiveHybrid 7 - 4395ccm, 465pk, 342kw - N63 B44 A
  • Original part numbers

    34 11 6 783 777 BMW
    34 11 6 789 543 BMW
  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
