Brembo

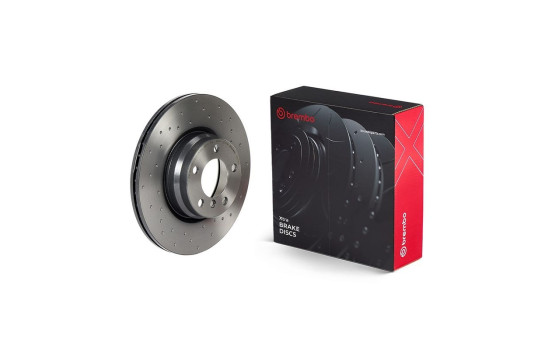

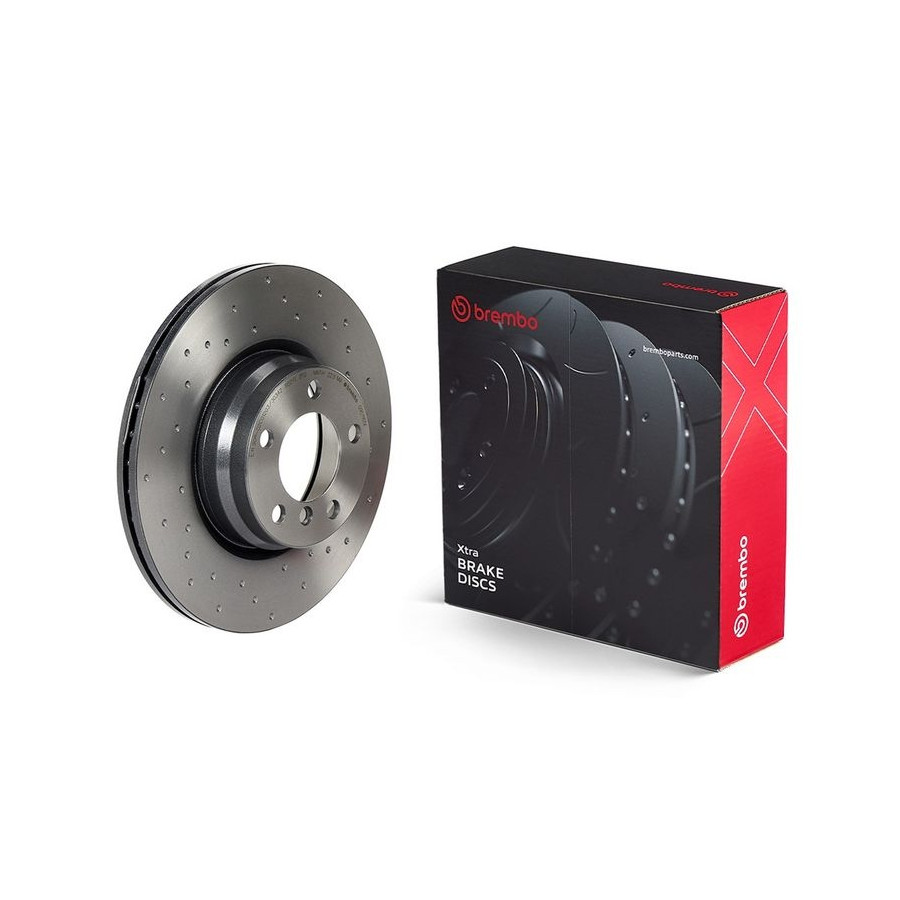

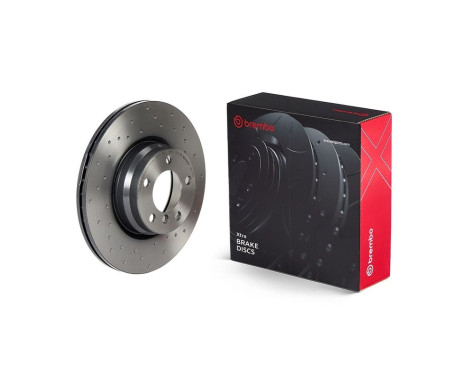

Brake disc 09.C116.1X Brembo

Brake disc 09.C116.1X Brembo Brake disc 09.C116.1X Brembo, Image 2

Product number: 2000424

Manufacturer number: 09.C116.1X

EAN: 8020584325513

€ 148,61

Incl. VAT
View product specifications
In stock
Delivery 04-05-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications


    The specific bore of the Brembo Xtra brake discs offers on
    brilliant and efficient performance in all circumstances,
    able to improve the driving style of real enthusiasts.

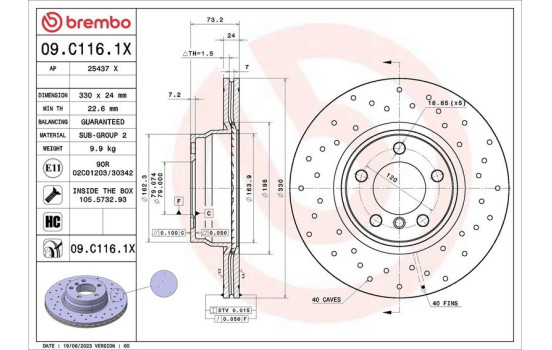

    Outer diameter [mm]330
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Brake Disc TypePerforated/internal ventilation
    Centering Diameter [mm]164
    MachiningHigh-carbon
    Warranty2 years
    Height [mm]73,2
    Additional informationWith screws
    Brake disc thickness (mm)24
    Minimum thickness (mm)22,6

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18162
    € 57,05
    ASHIKA 60-00-0117C
    BELACO BDS1663HC
    BLUE PRINT ADB114339
    € 52,01
    BOSCH 0 986 479 A06
    € 90,44
    BREMBO 09.C116.1X (this product)
    DELPHI BG4458C
    € 51,05
    DON PCD12911
    FEBI BILSTEIN 43956
    € 51,34
    FERODO DDF2603C
    € 158,43
    GIRLING 6080501
    HELLA 8DD 355 119-561
    HELLA 8DD 355 129-651
    ICER 78BD3417-2
    JAPANPARTS DI-0117C
    Manufacturer Manufacturer number Price
    JAPKO 600117C
    LORO 231-03-294
    MINTEX MDC2534
    OPEN PARTS BDR2625.20
    OPTIMAL BS-0284HC
    PAGID 55420NHC
    R BRAKE 78RBD23417
    SWAG 20 94 3956
    € 52,35
    TEXTAR 92242005
    € 79,04
    TRW DF8050
    € 53,84
    ZIMMERMANN 150.2901.20
    € 68,00
    ZIMMERMANN 150.2901.55
    € 110,06
    ZIMMERMANN 150.2901.52
    € 96,27
    ZIMMERMANN 150.2901.54
    € 110,06

  • Applicability

    BMW
    2 Convertible
    2 Convertible (F23) | 03.2014-06.2021 228 i - 1997ccm, 245pk, 180kw - N20 B20 A
    2 Convertible (F23) | 03.2014-06.2021 230 i - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    2 Coupe
    2 Coupe (F22, F87) | 10.2012-06.2021 228 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    2 Coupe (F22, F87) | 10.2012-06.2021 230 i - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    3
    3 (F30, F80) | 11.2011-10.2018 325 d - 1995ccm, 224pk, 165kw - B47 D20 B
    3 (F30, F80) | 11.2011-10.2018 325 d - 1995ccm, 211pk, 155kw - N47 D20 D
    3 (F30, F80) | 11.2011-10.2018 325 d - 1995ccm, 218pk, 160kw - N47 D20 D
    3 (F30, F80) | 11.2011-10.2018 328 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 (F30, F80) | 11.2011-10.2018 328 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 (F30, F80) | 11.2011-10.2018 330 d - 2993ccm, 258pk, 190kw - N57 D30 A
    3 (F30, F80) | 11.2011-10.2018 330 d - 2993ccm, 286pk, 210kw - N57 D30 A
    3 (F30, F80) | 11.2011-10.2018 330 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    3 (F30, F80) | 11.2011-10.2018 330 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    3 (F30, F80) | 11.2011-10.2018 330 i - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    3 (F30, F80) | 11.2011-10.2018 330 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 A, B48 B20 B, B46 B20 B
    3 Gran
    3 Gran Turismo (F34) | 11.2012-03.2018 325 d - 1995ccm, 224pk, 165kw - B47 D20 B
    3 Gran Turismo (F34) | 11.2012-03.2018 325 d - 1995ccm, 211pk, 155kw - N47 D20 D
    3 Gran Turismo (F34) | 11.2012-03.2018 325 d - 1995ccm, 218pk, 160kw - N47 D20 D
    3 Gran Turismo (F34) | 11.2012-03.2018 328 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 Gran Turismo (F34) | 11.2012-03.2018 328 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 Gran Turismo (F34) | 11.2012-03.2018 330 d - 2993ccm, 258pk, 190kw - N57 D30 A
    3 Gran Turismo (F34) | 11.2012-03.2018 330 d - 2993ccm, 286pk, 210kw - N57 D30 A
    3 Gran Turismo (F34) | 11.2012-03.2018 330 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    3 Gran Turismo (F34) | 11.2012-03.2018 330 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    3 Gran Turismo (F34) | 11.2012-03.2018 330 i - 1998ccm, 252pk, 185kw - B48 B20 B
    3 Gran Turismo (F34) | 11.2012-03.2018 330 i xDrive - 1998ccm, 249pk, 183kw - B48 B20 B
    3 Gran Turismo (F34) | 11.2012-03.2018 330 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    3 Gran Turismo (F34) | 11.2012-03.2018 335 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    3 Touring
    3 Touring (F31) | 07.2012-06.2019 325 d - 1995ccm, 224pk, 165kw - B47 D20 B
    3 Touring (F31) | 07.2012-06.2019 325 d - 1995ccm, 211pk, 155kw - N47 D20 D
    3 Touring (F31) | 07.2012-06.2019 325 d - 1995ccm, 218pk, 160kw - N47 D20 D
    3 Touring (F31) | 07.2012-06.2019 328 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 Touring (F31) | 07.2012-06.2019 328 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    3 Touring (F31) | 07.2012-06.2019 330 d - 2993ccm, 258pk, 190kw - N57 D30 A
    3 Touring (F31) | 07.2012-06.2019 330 d - 2993ccm, 286pk, 210kw - N57 D30 A
    3 Touring (F31) | 07.2012-06.2019 330 d M Performance Power Kit xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    3 Touring (F31) | 07.2012-06.2019 330 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    3 Touring (F31) | 07.2012-06.2019 330 i - 1998ccm, 252pk, 185kw - B48 B20 A
    3 Touring (F31) | 07.2012-06.2019 330 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    4 Convertible
    4 Convertible (F33, F83) | 10.2013-07.2020 420 d - 1995ccm, 190pk, 140kw - B47 D20 A
    4 Convertible (F33, F83) | 10.2013-07.2020 425 d - 1995ccm, 224pk, 165kw - B47 D20 B
    4 Convertible (F33, F83) | 10.2013-07.2020 425 d - 1995ccm, 218pk, 160kw - N47 D20 D
    4 Convertible (F33, F83) | 10.2013-07.2020 428 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    4 Convertible (F33, F83) | 10.2013-07.2020 428 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A
    4 Convertible (F33, F83) | 10.2013-07.2020 430 d - 2993ccm, 258pk, 190kw - N57 D30 A
    4 Convertible (F33, F83) | 10.2013-07.2020 430 d - 2993ccm, 286pk, 210kw - N57 D30 A
    4 Convertible (F33, F83) | 10.2013-07.2020 430 i - 1998ccm, 252pk, 185kw - B48 B20 B
    4 Convertible (F33, F83) | 10.2013-07.2020 430 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 B
    4 Coupe
    4 Coupe (F32, F82) | 07.2013-06.2020 425 d - 1995ccm, 224pk, 165kw - B47 D20 B
    4 Coupe (F32, F82) | 07.2013-06.2020 425 d - 1995ccm, 218pk, 160kw - N47 D20 D
    4 Coupe (F32, F82) | 07.2013-06.2020 428 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    4 Coupe (F32, F82) | 07.2013-06.2020 428 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    4 Coupe (F32, F82) | 07.2013-06.2020 430 d - 2993ccm, 258pk, 190kw - N57 D30 A
    4 Coupe (F32, F82) | 07.2013-06.2020 430 d - 2993ccm, 286pk, 210kw - N57 D30 A
    4 Coupe (F32, F82) | 07.2013-06.2020 430 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    4 Coupe (F32, F82) | 07.2013-06.2020 430 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    4 Coupe (F32, F82) | 07.2013-06.2020 430 i - 1998ccm, 249pk, 183kw - B48 B20 B
    4 Coupe (F32, F82) | 07.2013-06.2020 430 i - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    4 Coupe (F32, F82) | 07.2013-06.2020 430 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 B, B46 B20 B
    4 Gran
    4 Gran Coupe (F36) | 03.2014-05.2021 425 d - 1995ccm, 211pk, 155kw - B47 D20 B
    4 Gran Coupe (F36) | 03.2014-05.2021 425 d - 1995ccm, 224pk, 165kw - B47 D20 B
    4 Gran Coupe (F36) | 03.2014-05.2021 428 i - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    4 Gran Coupe (F36) | 03.2014-05.2021 428 i xDrive - 1997ccm, 245pk, 180kw - N20 B20 A, N26 B20 A
    4 Gran Coupe (F36) | 03.2014-05.2021 430 d - 2993ccm, 258pk, 190kw - N57 D30 A
    4 Gran Coupe (F36) | 03.2014-05.2021 430 d - 2993ccm, 286pk, 210kw - N57 D30 A
    4 Gran Coupe (F36) | 03.2014-05.2021 430 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    4 Gran Coupe (F36) | 03.2014-05.2021 430 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    4 Gran Coupe (F36) | 03.2014-05.2021 430 i - 1998ccm, 252pk, 185kw - B48 B20 B
    4 Gran Coupe (F36) | 03.2014-05.2021 430 i xDrive - 1998ccm, 252pk, 185kw - B48 B20 B

  • Original part numbers

    34116792221 BMW

  • Manufacturer

    Brembo

    Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.


    The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.


    Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.


    Brembo brake parts distinguish themselves on the following points:


    • Coverage of over 96% of the worldwide passenger car fleet

    • Top quality

    • Sportsmanship

    • Better braking performance than other manufacturers

    • Number 1 braking system used in sports cars and Formula 1


    We currently have the following Brembo products in our range:


    • Brake pads

    • Brake discs

    • Brake Shoe Set

    • Wear Indicators

    • Brake drums

    • Calipers

    • Brake hoses

    • Wheel brake cylinders

    • Master cylinders

    • Penetrating Oil & Lubricants

    • Brake power distributors


    Is sportsmanship important to you? Then order Brembo brake parts!
