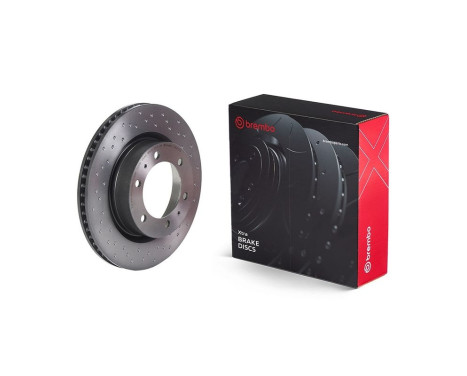

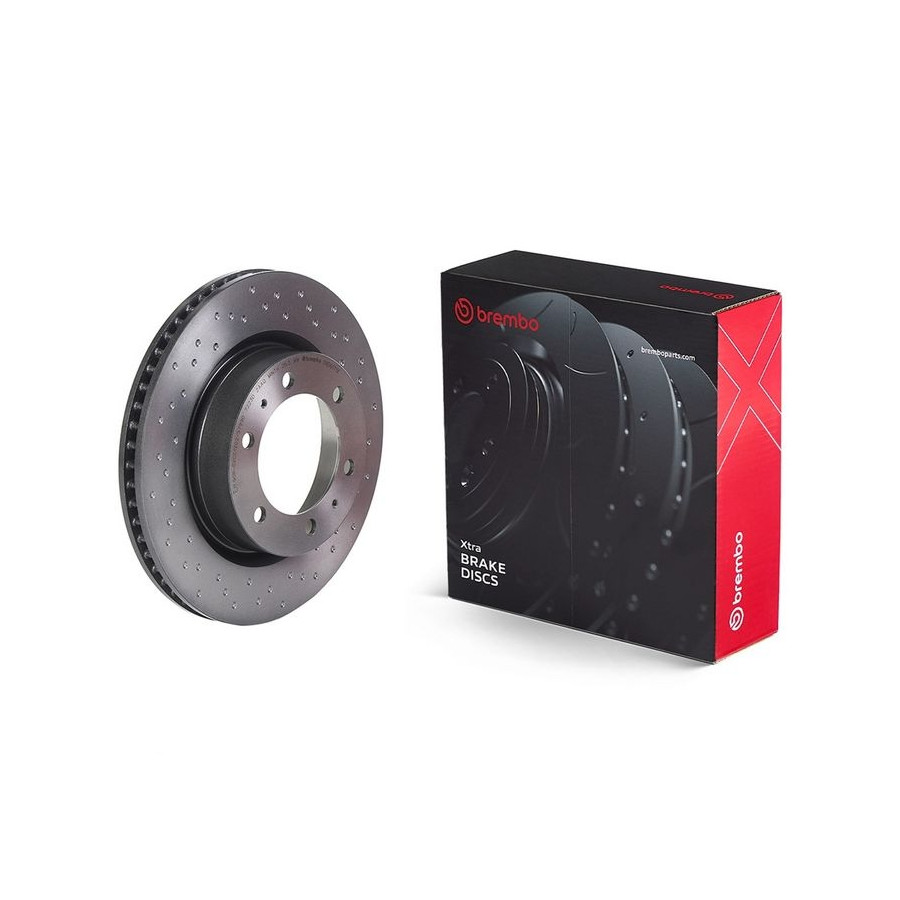

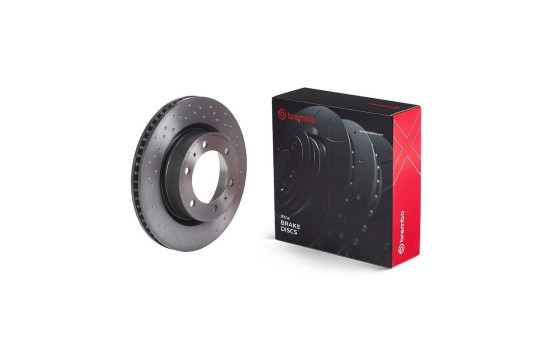

Brake disc 09.D617.1X Brembo
Product number: 1913635
Manufacturer number: 09.D617.1X
EAN: 8020584323298
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
The specific bore of the Brembo Xtra brake discs offers on
brilliant and efficient performance in all circumstances,
able to improve the driving style of real enthusiasts.

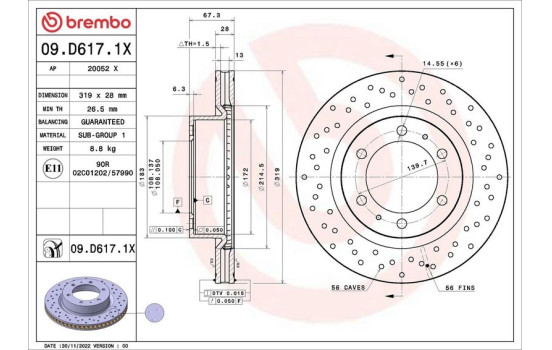

Outer diameter [mm] 319 Surface Coated Number of Holes 5 Brake pads Exclusive Brake Disc Type Perforated/internal ventilation Centering Diameter [mm] 108 Warranty 2 years Height [mm] 67,3 Brake disc thickness (mm) 28 Minimum thickness (mm) 26,5 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18189 AISIN A6F227S ASHIKA 60-02-285C ASHIKA 60-02-2044C ASHUKI T603-04 ASPART 3BDI1149 BELACO BDS1535 BLUE PRINT ADT343275 BLUE PRINT ADT343219 BOSCH 0 986 479 R46 BOSCH 0 986 479 G19 BREMBO 09.D617.1X (this product) DON PCD17122 FEBI BILSTEIN 108490 FEBI BILSTEIN 108411 FERODO DDF2606C FERODO DDF2746 GIRLING 6067265 HELLA 8DD 355 126-771 HERTH+BUSS JAKOPARTS J3302185 ICER 78BD4113-2 IOTO 10104-30305 JAPANPARTS DI-2044C JAPANPARTS DI-285C JAPKO 60285C JAPKO 602044C JP GROUP 4863105100 Manufacturer Manufacturer number Price JURID 563183JC KAMOKA 103042 LORO 231-03-380 MINTEX MDC2803CMX MINTEX MDC2803C OPEN PARTS BDA2850.20 OPTIMAL BS-0286C PAGID 55749NC R BRAKE 78RBD14113 RED-LINE 26TO099 REMSA 62527.10 ROADHOUSE 62527.10 ROTINGER RT 4087-GL ROTINGER RT 4087-GL T3 ROTINGER RT 4087-GL T6 ROTINGER RT 4087 ROTINGER RT 4087-GL T9 ROTINGER RT 4087-GL T5 SWAG 33 10 7077 TEXTAR 92274903 TRW DF3934S TRW DF6726S WOKING D62527.10 ZIMMERMANN 590.2833.53 ZIMMERMANN 590.2833.52 ZIMMERMANN 590.2833.20 -
Applicability
TOYOTA HILUX VIGO HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 2.5 D 4WD (KUN25) - 2494ccm, 102pk, 75kw - 2KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 2.5 D-4D (KUN15, KUN35) - 2494ccm, 144pk, 106kw - 2KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 2.5 D-4D 4WD (KUN25) - 2494ccm, 144pk, 106kw - 2KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 2.5 D-4D 4WD (KUN25_, KUN25R) - 2494ccm, 120pk, 88kw - 2KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 163pk, 120kw - 1KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 171pk, 126kw - 1KD-FTV HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) | 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 197pk, 145kw - 1KD-FTV HILUX VII HILUX VII Platform/Chassis (_N1_, _N2_) | 02.2005-??? 3.0 D 4WD (KUN26) - 2982ccm, 171pk, 126kw - 1KD-FTV HILUX VIII HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... - 2393ccm, 150pk, 110kw - 2GD-FTV HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.4 D (GUN135) - 2393ccm, 170pk, 125kw - 2GD-FTV HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.4 D 4WD (GUN125) - 2393ccm, 170pk, 125kw - 2GD-FTV HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.4 D 4WD (GUN125_, GUN125R) - 2393ccm, 150pk, 110kw - 2GD-FTV HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.8 D-4D (GUN123_, GUN136_, GUN136) - 2755ccm, 177pk, 130kw - 1GD-FTV HILUX VIII Pickup (_N1_) | 05.2015-02.2021 2.8 D-4D 4WD (GUN126_, GUN126R) - 2755ccm, 177pk, 130kw - 1GD-FTV HILUX VIII Platform/Chassis (_N1_) | 07.2015-??? 2.4 D 4WD (GUN125_, GUN125R) - 2393ccm, 150pk, 110kw - 2GD-FTV -
Original part numbers
435120K140 TOYOTA 435120K101 TOYOTA 435120K090 TOYOTA 435120K100 TOYOTA 435120K150 TOYOTA -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
