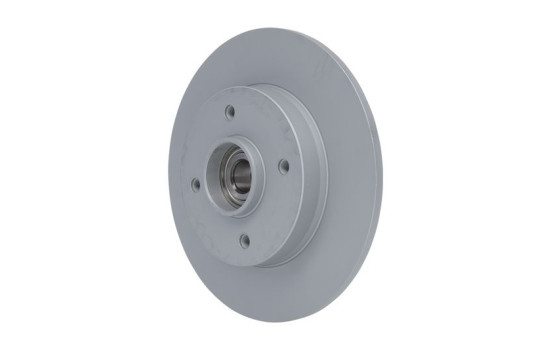

Brake Disc 24.0109-0150.2 ATE
Product number: 0384898
Manufacturer number: 24.0109-0150.2
EAN: 4006633322867
-
Free 30 days exchanges
-
Any part, any car
-
Fast Next day delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-

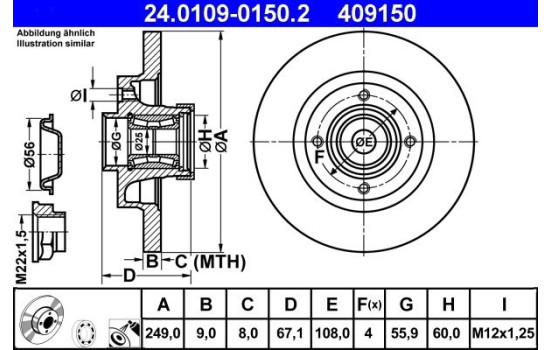

Specifications
Application: brake disc
Outer diameter [mm] 249,0 Brake Disc Type Complete Surface Coated Number of Holes 4 Assembly Rear Brake pads Exclusive Inner diameter [mm] 60,0 Bolt Hole Circle Ø [mm] 108,0 Centering Diameter [mm] 55,9 Thread Size M12X1,25 Support plate diameter [mm] 25 Inspection Tag E1 90R-02C0444/2505 MAPP code available Guarantee 2 years Height [mm] 67,1 Additional information With wheel bearing With ABS sensor ring Brake disc thickness (mm) 9,0 Minimum thickness (mm) 7,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17631C AP X 14900 AP 14900 X AP 14900 Y ASAM 71262 ASHIKA 61-00-0618C ASHIKA 61-00-0618 ASHUKI P331-026 ATE 24.0109-0150.2 (this product) AUTOKIT 01.97579D BELACO BDS1088 BLUE PRINT ADP154352 BORG & BECK BBD5796S BOSCH 0 986 479 279 BOSCH 0 986 479 S42 BRECO BY 7679 BREDA LORETT DFM0008 BREMBO 08.9512.17 BREMBO 08.9512.1X BREMBO 08.9512.75 BREMSI CD7561S BSG BSG 70-210-010 CIFAM 800-827 COMLINE AND8517 COMLINE ADC3017 DELPHI BG9021RS DENCKERMANN B130658 DENCKERMANN B130425 Dr!ve+ DP1010.11.1645 EUROBRAKE 5815311947 EUROBRAKE 5815201947 FEBI BILSTEIN 27201 FERODO DDF1561 FERODO DDF1561-1 FI.BA FBD434 FTE 9071389 FTE BS5425LS GALFER B1.G209-0150.2 GIRLING 6044526 HELLA 8DD 355 123-291 HELLA PAGID 8DD 355 123-291 ICER 78BD4744-1 JAPANPARTS DP-0618C JAPANPARTS DP-0618 JAPKO 610618C JAPKO 610618 JP GROUP 4163200600 JP GROUP 4163201200 JURID 562373J-1 JURID 562373J KAMOKA 1031132 KAMOKA 1031137 KEY PARTS KBD5796S KLAXCAR FRANCE 25129a KLAXCAR FRANCE 25129z LORO 231-04-141 LPR C1005PCA Manufacturer Manufacturer number Price MAGNETI MARELLI 361302040821 MAGNETI MARELLI 360406056500 MAPCO 15329C MAPCO 15329 MASTER-SPORT 2401090150B-PCS-MS MASTER-SPORT 2401090150B-SET-MSP MASTER-SPORT 2401090150B-PCS-MSP MASTER-SPORT 2401090150B-SET-MS MAXGEAR 19-1909SPORT MAXGEAR 19-1277SPORT MAXGEAR 19-1277 MAXGEAR 19-1909 METELLI 23-0827 METZGER 6110945 METZGER 6110723 MEYLE 11-15 523 4101 MEYLE 11-15 523 0041 MINTEX MDC1860 MOTAQUIP LVBD1190 NATIONAL NBD1642 NK 311947 NK 201947 NPS P331A01 OPTIMAL BS-7934 OPTIMAL 602893BS1 OPTIMAL BS-7934C Omnicraft 2134658 PILENGA 5177 PROTECHNIC PRD5286B QUARO QD8939 R BRAKE 78RBD14744 ROTINGER RT 3214BS-GL T9 ROTINGER RT 3214-GL T9 ROTINGER RT 3214 ROTINGER RT 3214-GL ROTINGER RT 3214-GL T3 ROTINGER RT 3214BS-GL T5 ROTINGER RT 3214-GL T5 ROTINGER RT 3214BS-GL T6 ROTINGER RT 3214BS-GL ROTINGER RT 3214BS-GL T3 ROTINGER RT 3214BS ROTINGER RT 3214-GL T6 RUVILLE 221185 SASIC 6100005 SNR KF159.48U SWAG 62 92 7201 TEXTAR 92133303 TOPRAN 721 185 TRISCAN 8120 28127C TRISCAN 8120 28124C TRUSTING DF1079A TRW DF4452BS VAICO V22-40016 VALEO 186899 VALEO 197307 -
Applicability
CITROEN C4 Coupe C4 Coupe (LA_) | 11.2004-07.2011 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4) C4 Coupe (LA_) | 11.2004-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) C4 Coupe (LA_) | 11.2004-07.2011 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU) C4 Coupe (LA_) | 11.2004-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) C4 Coupe (LA_) | 11.2004-07.2011 1.6 THP - 1598ccm, 140pk, 103kw - 5FT (EP6DT) C4 Coupe (LA_) | 11.2004-07.2011 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FX (EP6DT) C4 Coupe (LA_) | 11.2004-07.2011 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FW (EP6) C4 Coupe (LA_) | 11.2004-07.2011 2.0 16V - 1997ccm, 177pk, 130kw - RFK (EW10J4S) C4 Coupe (LA_) | 11.2004-07.2011 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4) C4 Coupe (LA_) | 11.2004-07.2011 2.0 HDi - 1997ccm, 140pk, 103kw - RHF (DW10BTED4) C4 Coupe (LA_) | 11.2004-07.2011 2.0 HDi - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) C4 Coupe (LA_) | 11.2004-07.2011 2.0 VTR - 1997ccm, 140pk, 103kw - RFJ (EW10A) C4 I C4 I (LC_) | 11.2004-07.2011 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4) C4 I (LC_) | 11.2004-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) C4 I (LC_) | 11.2004-07.2011 1.6 16V Bio-Flex - 1587ccm, 109pk, 80kw - NFU (TU5JP4) C4 I (LC_) | 11.2004-07.2011 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU) C4 I (LC_) | 11.2004-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) C4 I (LC_) | 11.2004-07.2011 1.6 THP 140 - 1598ccm, 140pk, 103kw - 5FT (EP6DT) C4 I (LC_) | 11.2004-07.2011 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FX (EP6DT) C4 I (LC_) | 11.2004-07.2011 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FW (EP6) C4 I (LC_) | 11.2004-07.2011 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A) C4 I (LC_) | 11.2004-07.2011 2.0 16V - 1997ccm, 143pk, 105kw - RFJ (EW10A) C4 I (LC_) | 11.2004-07.2011 2.0 16V - 1997ccm, 177pk, 130kw - RFK (EW10J4S) C4 I (LC_) | 11.2004-07.2011 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4) C4 I (LC_) | 11.2004-07.2011 2.0 HDi - 1997ccm, 140pk, 103kw - RHF (DW10BTED4) C4 I (LC_) | 11.2004-07.2011 2.0 HDi - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) C4 I Hatchback Van (LR_) | 02.2005-12.2010 2.0 HDi - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) C4 I Saloon | 07.2006-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) C4 I Saloon | 07.2006-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) PEUGEOT 307 307 (3A/C) | 08.2000-04.2012 1.4 - 1360ccm, 75pk, 55kw - KFW (TU3JP) 307 (3A/C) | 08.2000-04.2012 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4) 307 (3A/C) | 08.2000-04.2012 1.4 HDi - 1398ccm, 68pk, 50kw - 8HX (DV4TD), 8HZ (DV4TD) 307 (3A/C) | 08.2000-04.2012 1.6 - 1587ccm, 110pk, 81kw - NFU (TU5JP4) 307 (3A/C) | 08.2000-04.2012 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) 307 (3A/C) | 08.2000-04.2012 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU) 307 (3A/C) | 08.2000-04.2012 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) 307 (3A/C) | 08.2000-04.2012 2.0 - 1997ccm, 143pk, 105kw - RFJ (EW10A), RFN (EW10J4) 307 (3A/C) | 08.2000-04.2012 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A) 307 (3A/C) | 08.2000-04.2012 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4) 307 (3A/C) | 08.2000-04.2012 2.0 HDi 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED) 307 (3A/C) | 08.2000-04.2012 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) 307 (3A/C) | 08.2000-04.2012 2.0 HDi 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD) 307 CC 307 CC (3B) | 03.2003-06.2009 1.6 16V - 1587ccm, 110pk, 80kw - NFU (TU5JP4) 307 CC (3B) | 03.2003-06.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A) 307 CC (3B) | 03.2003-06.2009 2.0 16V - 1997ccm, 143pk, 105kw - RFJ (EW10A) 307 CC (3B) | 03.2003-06.2009 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4) 307 CC (3B) | 03.2003-06.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) 307 Estate 307 Estate (3E) | 03.2002-12.2009 1.4 - 1360ccm, 75pk, 55kw - KFW (TU3JP) 307 Estate (3E) | 03.2002-12.2009 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4) 307 Estate (3E) | 03.2002-12.2009 1.4 HDi - 1398ccm, 68pk, 50kw - 8HZ (DV4TD) 307 Estate (3E) | 03.2002-12.2009 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) 307 Estate (3E) | 03.2002-12.2009 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HX (DV6AUTED4), 9HV (DV6TED4B), 9HV (DV6TED4BU) 307 Estate (3E) | 03.2002-12.2009 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) 307 Estate (3E) | 03.2002-12.2009 2.0 - 1997ccm, 136pk, 100kw - RFN (EW10J4) 307 Estate (3E) | 03.2002-12.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A) 307 Estate (3E) | 03.2002-12.2009 2.0 HDI 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED) 307 Estate (3E) | 03.2002-12.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) 307 Estate (3E) | 03.2002-12.2009 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD) 307 SW 307 SW (3H) | 03.2002-12.2009 1.4 - 1360ccm, 75pk, 55kw - KFW (TU3JP) 307 SW (3H) | 03.2002-12.2009 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4) 307 SW (3H) | 03.2002-12.2009 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4) 307 SW (3H) | 03.2002-12.2009 1.6 HDI 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4) 307 SW (3H) | 03.2002-12.2009 1.6 HDI 90 - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HX (DV6AUTED4), 9HV (DV6TED4B), 9HV (DV6TED4BU) 307 SW (3H) | 03.2002-12.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A) 307 SW (3H) | 03.2002-12.2009 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4) 307 SW (3H) | 03.2002-12.2009 2.0 HDI 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED) 307 SW (3H) | 03.2002-12.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) 307 SW (3H) | 03.2002-12.2009 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD) -
Original part numbers
4246 Z9 CITROËN 4249 34 CITROËN 4246 Z9 PEUGEOT -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
