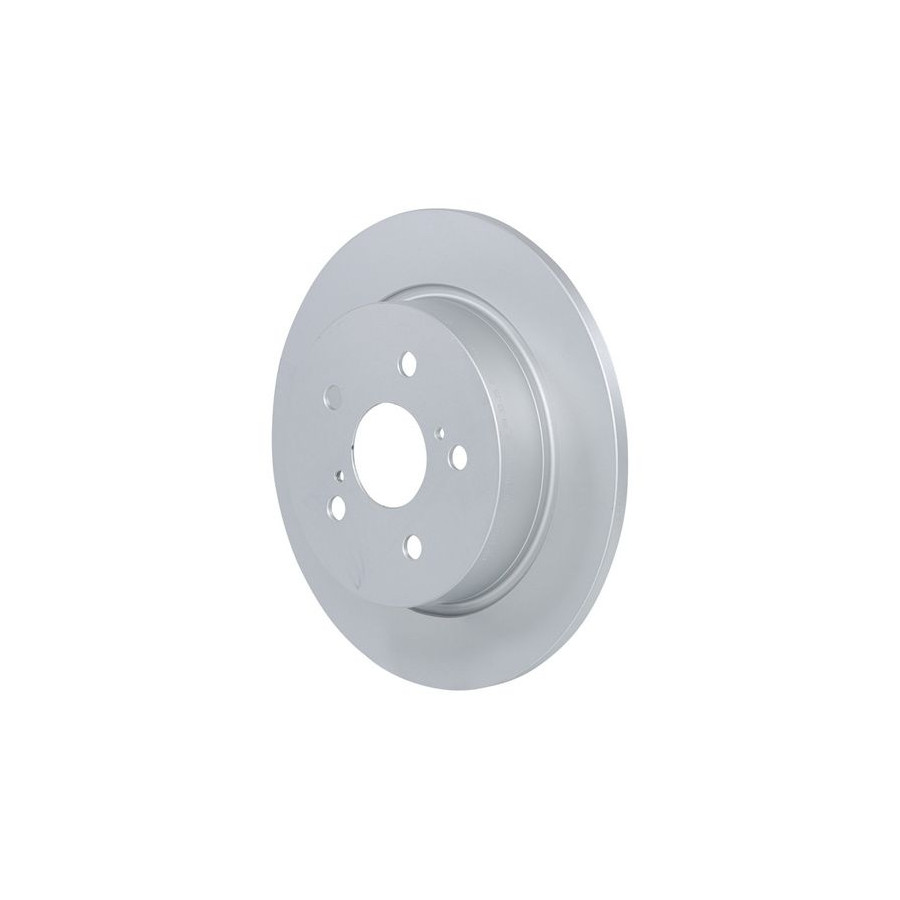

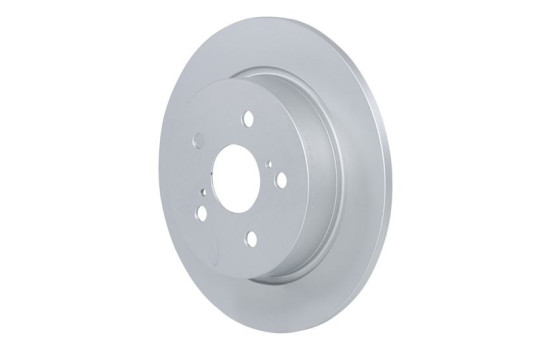

Brake disc 24.0111-0200.1 ATE

Brake disc 24.0111-0200.1 ATE Brake disc 24.0111-0200.1 ATE, Image 2

Product number: 2136377

Manufacturer number: 24.0111-0200.1

EAN: 4006633507257

€ 39,58

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

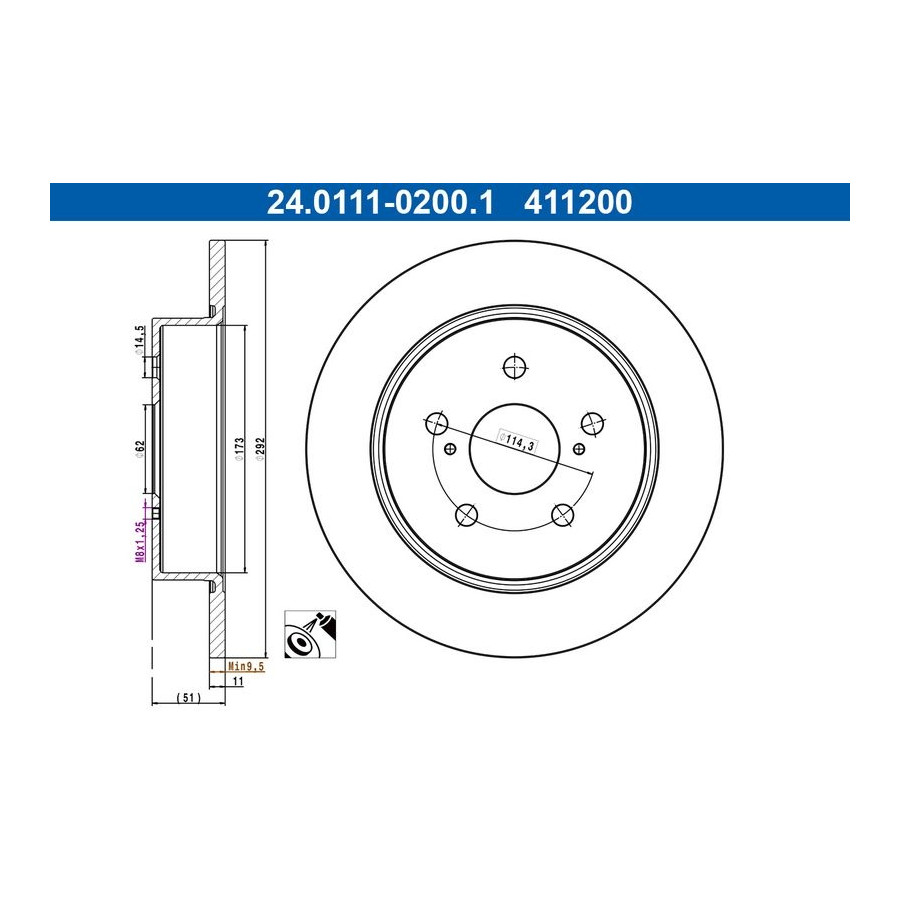

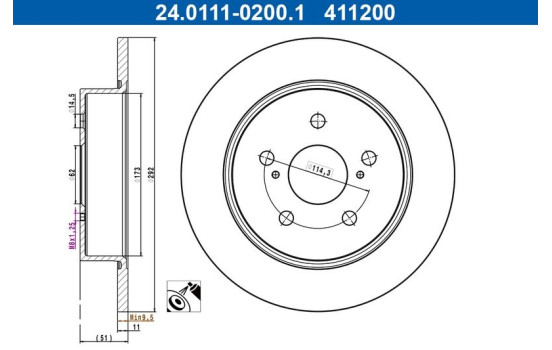

  • Specifications

    Outer diameter [mm]292,0
    Brake Disc TypeSolid
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]173,0
    Bolt Hole Circle Ø [mm]114,3
    Centering Diameter [mm]62,0
    Inspection TagE1 90R-02C0165/1318
    MAPP code available
    Warranty2 years
    Height [mm]51,0
    Brake disc thickness (mm)11,0
    Minimum thickness (mm)9,5
    Hole diameter [mm]14,5

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18919
    € 25,77
    A.Z. Meisterteile AZMT-44-024-2551
    ATE 24.0111-0200.1 (this product)
    BLUE PRINT ADBP430131
    € 37,26
    DELPHI BG5169C
    € 34,04
    DON PCD23652
    FEBI BILSTEIN 179054
    € 34,34
    FERODO DDF3112C
    € 74,78
    HERTH+BUSS JAKOPARTS J3312089
    Manufacturer Manufacturer number Price
    MAXGEAR 19-4843
    MINTEX MDC3223C
    MINTEX MDC3223CMX
    OPTIMAL BS-1112C
    PAGID 56478NC
    RIDEX 82B3374
    SWAG 33 10 7355
    € 37,50
    TEXTAR 92347803
    € 41,99

  • Applicability

    TOYOTA
    C-HR
    C-HR (_X1_) | 10.2016-??? 1.2 4WD (NGX50) - 1197ccm, 131pk, 96kw - 8NR-FTS
    C-HR (_X1_) | 10.2016-??? 1.2 4WD (NGX50_, NGX50R) - 1197ccm, 116pk, 85kw - 8NR-FTS
    C-HR (_X1_) | 10.2016-??? 2.0 Hybrid (MAXH10) - 1987ccm, 184pk, 135kw - M20A-FXS

  • Original part numbers

    42431-F4020 TOYOTA

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
