ATE

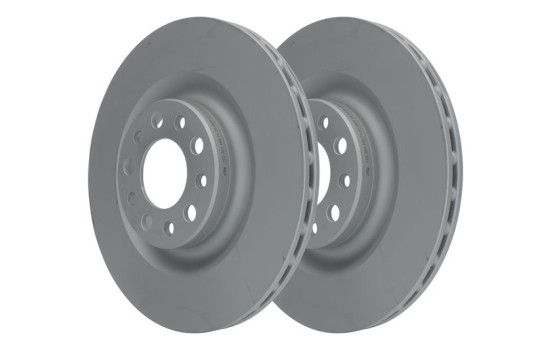

Brake Disc 24.0122-0304.1 ATE

Brake Disc 24.0122-0304.1 ATE Brake Disc 24.0122-0304.1 ATE, Image 2

Product number: 1386704

Manufacturer number: 24.0122-0304.1

EAN: 4006633474757

€ 78,88

Incl. VAT
View product specifications
In stock
Delivery 07-05-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

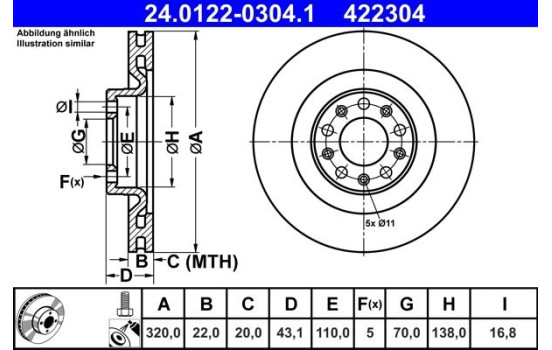

  • Specifications

    Outer diameter [mm]320,0
    Brake Disc TypeVented
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]138,0
    Bolt Hole Circle Ø [mm]110,0
    Centering Diameter [mm]70,0
    Inspection TagE1 90R-02C0115/1327
    MAPP code available
    Warranty2 years
    Height [mm]43,1
    Additional informationWith screws
    Brake disc thickness (mm)22,0
    Minimum thickness (mm)20,0
    Hole diameter [mm]16,8

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    ATE 24.0122-0304.1 (this product)
    LORO 231-04-193
    Manufacturer Manufacturer number Price
    MAXGEAR 19-4849

  • Applicability

    ALFA ROMEO
    GIULIA
    GIULIA (952_) | 10.2015-10.2022 2.0 (952ABA25B) - 1995ccm, 200pk, 147kw - 552 73 835
    GIULIA (952_) | 10.2015-10.2022 2.0 (952ACA25) - 1995ccm, 280pk, 206kw - 552 73 835, EC2
    GIULIA (952_) | 10.2015-10.2022 2.0 Q4 (952ACA45, 952ACA25) - 1995ccm, 280pk, 206kw - 552 73 835, EC2
    STELVIO
    STELVIO (949_) | 12.2016-??? 2.0 Q4 (949.AXA2A) - 1995ccm, 280pk, 206kw - 552 73 835, EC2
    STELVIO (949_) | 12.2016-??? 2.0 Q4 (949.AXF2A) - 1995ccm, 201pk, 148kw - 552 73 835
    STELVIO (949_) | 12.2016-??? 2.0 Q4 (949.AXR2A) - 1995ccm, 250pk, 184kw - 552 73 835

  • Original part numbers

    50546509 FIAT
    50571045 FIAT
    50554319 FIAT

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
