Zimmermann

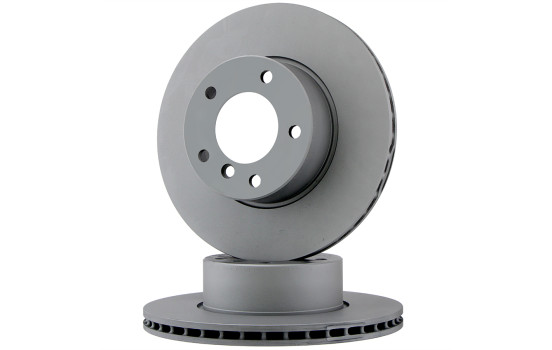

Brake Disc COAT Z 150.1284.20 Zimmermann

5 5/5 (1 review)

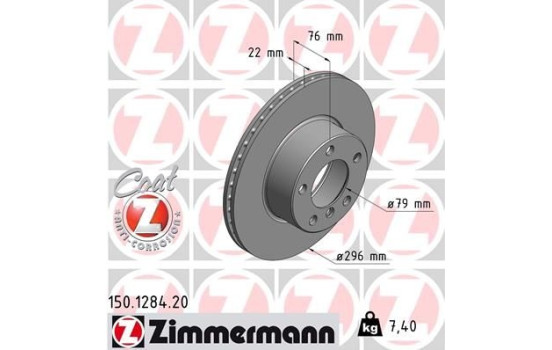

Brake Disc COAT Z 150.1284.20 Zimmermann Brake Disc COAT Z 150.1284.20 Zimmermann, Image 2

Product number: 0847236

Manufacturer number: 150.1284.20

EAN: 4250238718390

€ 45,66

Incl. VAT
View product specifications
In stock
Delivery 23-05-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]296
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]120
    Centering Diameter [mm]79
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]76
    Brake disc thickness (mm)22
    Minimum thickness (mm)20,4
    Weight [kg]7,40

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    7 SEVEN PARTS SV03D0352
    A.B.S. 16332
    € 46,14
    A.Z. Meisterteile AZMT-44-024-1508
    ABTEX BD613V
    AISIN W6F1527S
    ALLIED NIPPON AND6423
    ALTE AUTOMOTIVE 128206FCAL
    AMBMI RDB-046
    ANDEL AND0420
    AP 24637 E
    AP 24637 X
    AP X 24637
    AP 24637 V
    ASHIKA 60-00-0125C
    ASPART 3BDI1068
    ATE 24.0122-0159.1
    € 66,52
    BARUM BAR22159
    BELACO BDS1227HC
    BLUE PRINT ADB114341
    € 39,86
    BORG & BECK BBD4067
    BOSCH 0 986 478 848
    € 53,10
    BOSCH 0 986 479 R72
    € 48,67
    BRECO BV 8256
    BRECO BS 8256
    BREMBO 09.6924.75
    € 73,76
    BREMBO 09.6924.1X
    € 93,18
    BREMBO 09.6924.14
    BREMBO 09.6924.11
    € 55,04
    BREMSI CD6834V
    BSG BSG 15-210-017
    Burig B010482
    CHAMPION 562035CH
    CIFAM 800-396C
    COMLINE ADC1705V
    DACO 601525
    DAVID VASCO T2769
    DELPHI BG3043
    € 42,87
    DENCKERMANN B130255
    DENCKERMANN B130255S
    DON PCD10922
    Dr!ve+ DBD0711C
    Dr!ve+ DP1010.11.0711
    EUROBRAKE 5815311536
    EUROBRAKE 5815201536
    FEBI BILSTEIN 10753
    € 39,35
    FERODO DDF834
    € 56,27
    FERODO DDF834C
    € 95,36
    FREMAX BD-4839
    FRIGAIR DC02.101
    FTE 9081225
    FTE 9082540
    FTE 9071013
    GALFER B1.G222-0159.1
    GH GH-401581
    GIRLING 6027691
    GIRLING 6027695
    HELLA 8DD 355 127-251
    HELLA 8DD 355 104-591
    JAPANPARTS DI-0125C
    JAPKO 600125C
    JP GROUP 1463104700
    JPN 30H9112-JPN
    JURATEK BMW104
    JURID 562035JC
    KAWE 6514 10
    KRAFT AUTOMOTIVE 6042630
    LORO 231-03-068
    LORO 231-03-068-2
    LPR B2441VR
    LYNXauto BN-1002
    MAGNETI MARELLI 360406016302
    MAGNETI MARELLI 361302040366
    MAGNETI MARELLI 360406016305
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 360406016301
    MAGNETI MARELLI 361302040662
    MASTER-SPORT 24012201591PR-PCS-MSP
    MASTER-SPORT 24012201591PR-SET-MSP
    MASTER-SPORT 24012201591-SET-MS
    MASTER-SPORT 24012201591-PCS-MS
    MASTER-SPORT 24012201591PR-PCS-MS
    MASTER-SPORT 24012201591-PCS-MSP
    MASTER-SPORT 24012201591-SET-MSP
    MASTER-SPORT 24012201591PR-SET-MS
    MATRIX PRO MX01421126
    MAXGEAR 19-0692
    MAXGEAR 19-0692SPORT
    MAXGEAR 19-0692MAX
    MAXTECH 873028
    METELLI 23-0396C
    METZGER 6110028
    MEYLE 383 521 3019/PD
    € 49,55
    MEYLE 315 521 3019
    € 57,18
    MINTEX MDC989
    MINTEX MDC989CMX
    MJA MB100420
    MOTAQUIP LVBE122
    MTR 13217018
    NATIONAL NBD811
    NK 311536
    NK 201536
    OPEN PARTS BDR1669.20
    OPTIMAL BS-5140C
    Omnicraft 2134449
    PAGID 50439NHC
    ProfiPower 3B1092
    QUARO QD6517
    QUARO QD6517HC
    RAICAM RD00061
    RAP BRAKES R-D0728
    RAP BRAKES R-D0728C
    REMSA 6514.10
    RIDEX 82B0032
    ROADHOUSE 6514.10
    ROTINGER RT 2496-GL T3
    ROTINGER RT 2496HP-GL T3
    ROTINGER RT 2496
    ROTINGER RT 2496-GL T5
    ROTINGER RT 2496HP-GL T6
    ROTINGER RT 2496HP-GL T5
    ROTINGER RT 2496HP-GL T9
    ROTINGER RT 2496HP-GL
    ROTINGER RT 2496HP
    ROTINGER RT 2496-GL T6
    ROTINGER RT 2496-GL T9
    ROTINGER RT 2496-GL
    SAMKO B2441VR
    SKF VKBD 80410 V1
    SRLine S71-0093
    STARK SKBM-2031
    STELLOX 6020-1536V-SX
    SWAG 20 91 0753
    TEXTAR 92075005
    € 58,74
    TEXTAR 92075000
    TOMEX Brakes TX 71-05
    TOPRAN 500 570
    TRUCKTEC AUTOMOTIVE 08.34.021
    TRUSTING DF475
    TRW DF2769
    € 46,84
    VAICO V20-80025
    VALEO 197330
    WOKING D6514.10
    ZIMMERMANN 150.1284.52
    € 104,85
    ZIMMERMANN 150.1284.20 (this product)
    ZentParts Z05995
    goCORE GCH20036

  • Applicability

    BMW
    5
    5 (E39) | 09.1995-06.2003 520 d - 1951ccm, 136pk, 100kw - M47 D20 (204D1)
    5 (E39) | 09.1995-06.2003 520 i - 1990ccm, 136pk, 100kw - M52 B20 (206S3), M52 B20 (206S4)
    5 (E39) | 09.1995-06.2003 520 i - 1990ccm, 150pk, 110kw - M52 B20 (206S3), M52 B20 (206S4)
    5 (E39) | 09.1995-06.2003 520 i - 2171ccm, 163pk, 120kw - M54 B22 (226S1)
    5 (E39) | 09.1995-06.2003 520 i - 2171ccm, 170pk, 125kw - M54 B22 (226S1)
    5 (E39) | 09.1995-06.2003 523 i - 2494ccm, 170pk, 125kw - M52 B25 (256S3), M52 B25 (256S4)
    5 (E39) | 09.1995-06.2003 525 d - 2497ccm, 163pk, 120kw - M57 D25 (256D1)
    5 (E39) | 09.1995-06.2003 525 i - 2494ccm, 192pk, 141kw - M54 B25 (256S5)
    5 (E39) | 09.1995-06.2003 525 td - 2497ccm, 116pk, 85kw - M51 D25 (256T1)
    5 (E39) | 09.1995-06.2003 525 tds - 2497ccm, 143pk, 105kw - M51 D25 (256T1)
    5 (E39) | 09.1995-06.2003 528 i - 2793ccm, 193pk, 142kw - M52 B28 (286S1), M52 B28 (286S2)
    5 (E39) | 09.1995-06.2003 535 i - 3498ccm, 235pk, 173kw - M62 B35 (358S1)
    5 Touring
    5 Touring (E39) | 11.1996-05.2004 520 d - 1951ccm, 136pk, 100kw - M47 D20 (204D1)
    5 Touring (E39) | 11.1996-05.2004 520 i - 1990ccm, 136pk, 100kw - M52 B20 (206S3), M52 B20 (206S4)
    5 Touring (E39) | 11.1996-05.2004 520 i - 1990ccm, 150pk, 110kw - M52 B20 (206S3), M52 B20 (206S4)
    5 Touring (E39) | 11.1996-05.2004 520 i - 2171ccm, 163pk, 120kw - M54 B22 (226S1)
    5 Touring (E39) | 11.1996-05.2004 520 i - 2171ccm, 170pk, 125kw - M54 B22 (226S1)
    5 Touring (E39) | 11.1996-05.2004 523 i - 2494ccm, 170pk, 125kw - M52 B25 (256S3), M52 B25 (256S4)
    5 Touring (E39) | 11.1996-05.2004 525 d - 2497ccm, 163pk, 120kw - M57 D25 (256D1)
    5 Touring (E39) | 11.1996-05.2004 525 i - 2494ccm, 192pk, 141kw - M54 B25 (256S5)
    5 Touring (E39) | 11.1996-05.2004 525 tds - 2497ccm, 143pk, 105kw - M51 D25 (256T1)
    5 Touring (E39) | 11.1996-05.2004 528 i - 2793ccm, 193pk, 142kw - M52 B28 (286S1), M52 B28 (286S2)

  • Original part numbers

    3411 1 163 013 BMW
    3411 1 163 081 BMW
    3411 1 164 839 BMW
    3411 6 767 061 BMW

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums

  • Delivery time

    Expected delivery date:

    23-05-2026

  • Reviews 1

    • 5 By: de Beauvesier Watson on 20-03-2024

      Yes, amazing quality. Definitely recommended
