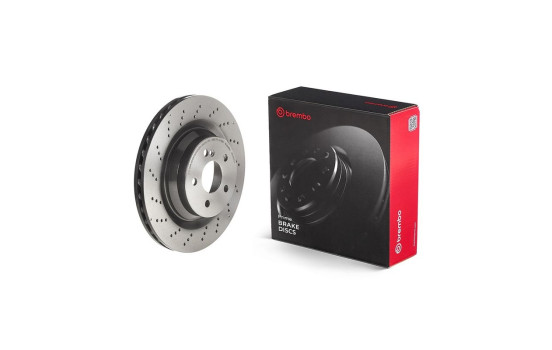

Brake Disc COATED DISC LINE 09.C502.11 Brembo
Product number: 1033180
Manufacturer number: 09.C502.11
EAN: 8020584231876
-
Free 30 days exchanges
-
Any part, any car
-
Fast Next day delivery
-
Expert span> support
Fit guarantee, show parts suitable for your vehicle.
or .
-

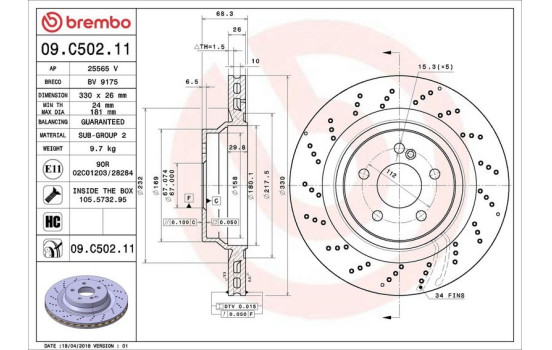

Specifications
Outer diameter [mm] 330 Brake Disc Type Perforated / Vented Diameter [mm] 330 Surface Anticorrosion coating Coated Number of Holes 5 Brake pads Exclusive Brake Disc Type Perforated/internal ventilation Centering Diameter [mm] 67 Machining High-carbon Guarantee 2 years Height [mm] 68 Additional information With screws Brake disc thickness (mm) 26 Minimum thickness (mm) 24 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17563 A.B.S. 09.C502.11 ATE 24.0126-0136.1 BLUE PRINT ADU1743125 BREMBO 09.C502.11 (this product) CAR 142.1104 DELPHI BG3917 DJ PARTS BD2324 EUROBRAKE 5815203379 EUROBRAKE 5815313379 FEBI BILSTEIN 43897 FERODO DDF1669 FERODO DDF1669C-1 FTE BS7514 FTE 9071332 HELLA 8DD 355 127-931 Manufacturer Manufacturer number Price HELLA 8DD 355 126-401 HELLA PAGID 8DD 355 126-401 HELLA PAGID 8DD 355 127-931 JURID 562400J JURID 562400JC JURID 562400JC-1 MEYLE 015 523 0017/PD MINTEX MDC2786 NK 203379 NK 313379 OPTIMAL BS-7822C PILENGA V594 SWAG 10 94 3897 TEXTAR 92289603 TRISCAN 8120 231015C ZIMMERMANN 400.3626.20 -
Applicability
MERCEDES-BENZ CLS CLS (C219) | 10.2004-12.2010 CLS 55 AMG - 5439ccm, 476pk, 350kw - M 113.990 CLS (C219) | 10.2004-12.2010 CLS 55 AMG (219.376) - 5439ccm, 476pk, 350kw - M 113.990 CLS (C219) | 10.2004-12.2010 CLS 63 AMG (219.377) - 6208ccm, 514pk, 378kw - M 156.983 E-CLASS E-CLASS (W211) | 03.2002-12.2008 E 55 AMG Kompressor (211.076) - 5439ccm, 476pk, 350kw - M 113.990 E-CLASS (W211) | 03.2002-12.2008 E 63 AMG (211.077) - 6208ccm, 514pk, 378kw - M 156.983 E-CLASS T-Model E-CLASS T-Model (S211) | 03.2003-07.2009 E 55 T AMG Kompressor - 5439ccm, 476pk, 350kw - M 113.990 E-CLASS T-Model (S211) | 03.2003-07.2009 E 55 T AMG Kompressor (211.276) - 5439ccm, 476pk, 350kw - M 113.990 E-CLASS T-Model (S211) | 03.2003-07.2009 E 63 AMG (211.277) - 6208ccm, 514pk, 378kw - M 156.983 -
Original part numbers
2114231012 MERCEDES-BENZ 2114231112 MERCEDES-BENZ A2114231012 MERCEDES-BENZ A2114231112 MERCEDES-BENZ -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
