TRW

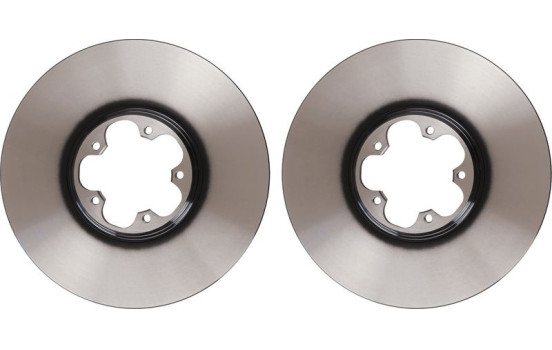

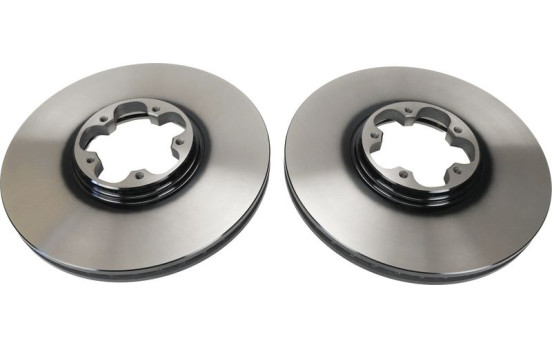

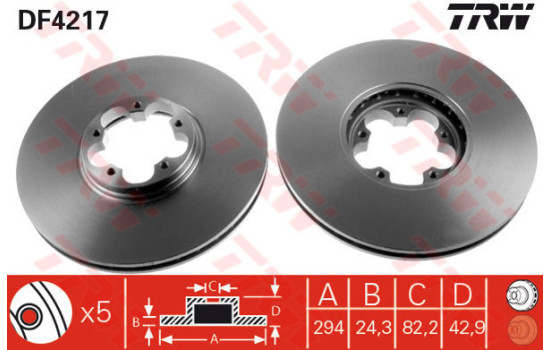

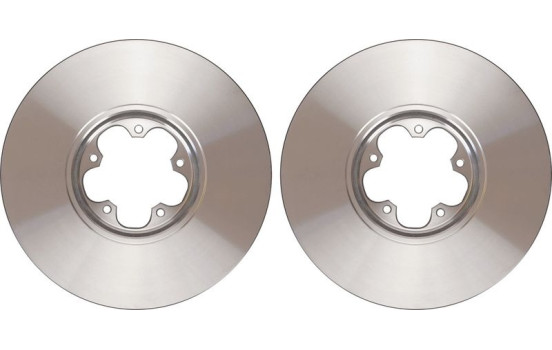

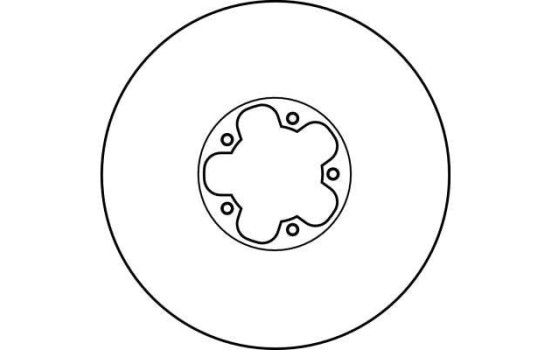

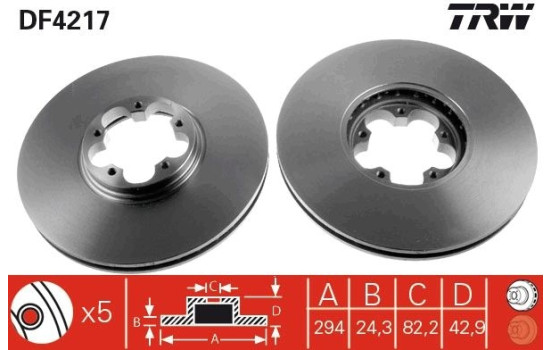

Brake Disc DF4217 TRW

Brake Disc DF4217 TRW Brake Disc DF4217 TRW, Image 2 Brake Disc DF4217 TRW, Image 3 Brake Disc DF4217 TRW, Image 4 Brake Disc DF4217 TRW, Image 5 Brake Disc DF4217 TRW, Image 6

Product number: 0166828

Manufacturer number: DF4217

EAN: 3322937321148

€ 36,15

Incl. VAT
View product specifications
In stock
Delivery 26-10-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Shipment within 3 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: 056 771 9932

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]294
    Brake Disc TypeVented
    ColourBlack
    SurfacePainted
    Number of Holes5
    AssemblyFront
    Brake padsExclusive
    Centering Diameter [mm]82
    Thread SizeM10 x 1,5
    Inspection TagE190R-02C0176/0490
    Warranty2 years
    Height [mm]42,9
    Brake disc thickness (mm)24,3
    Minimum thickness (mm)22,1
    Wheel bolt pitch [mm]100

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    7 SEVEN PARTS SV03D0095
    A.B.S. 17115
    € 36,79
    A.Z. Meisterteile AZMT-44-024-1058
    ABE C3G033ABE
    ABTEX BD842V
    AISIN K6F1620S
    ALLIED NIPPON AND6057
    ALTE AUTOMOTIVE 128068FCAL
    ANDEL AND0498
    AP XENERGY X602076
    ASAM 71420
    ASHIKA 60-00-0330C
    ATE 24.0124-0168.1
    € 62,14
    BELACO BDS1308
    BLUE PRINT ADF124341
    € 37,39
    BORG & BECK BBD4221
    BOSCH 0 986 478 303
    € 40,28
    BOSCH 0 986 479 B29
    BREMBO 09.8837.14
    € 47,30
    BREMSI CD7112V
    BSG BSG 30-210-005
    Burig B010078
    CAR 142.228
    CAR HPD 228
    CASALS 55256
    CHAMPION 562140CH
    CIFAM 800-702
    COMLINE ADC1213V
    DACO 602544
    DANAHER DR11259
    DANBLOCK DB 521875
    DAVID VASCO T4217
    DELPHI BG3504
    € 37,23
    DENCKERMANN B130153
    DIAMAX N08115
    DJ PARTS BD1476
    DON PCD18072
    DT Spare Parts 13.31002
    Dr!ve+ DP1010.11.0764
    EGT 410445EGT
    EGT 410445cEGT
    EUROBRAKE 5815202544
    EUROREPAR 1618871580
    FAI AutoParts FPBD1246
    FAI AutoParts BD368
    FAST FT31157
    FEBI BILSTEIN 19515
    € 35,38
    FERODO DDF1112C
    FERODO DDF1112
    € 52,90
    FI.BA FBD260
    FREMAX BD-5613
    FROW 5041101002
    FTE 9082682
    GALFER B1.G224-0168.1
    GH GH-402551
    GIRLING 6042171
    HART 241 149
    HART 215 673
    HELLA 8DD 355 127-541
    HELLA 8DD 355 107-311
    Hi-Q SD5331
    ICER 78BD5613-2
    JAPANPARTS DI-0330C
    JAPKO 600330C
    JURATEK FOR109
    JURID 562140JC
    KAMOKA 1032224
    KAWE 6608 10
    Manufacturer Manufacturer number Price
    KEY PARTS KBD4221
    KRAFT AUTOMOTIVE 6042350
    LPR F1002V
    LYNXauto BN-1474
    MAGNETI MARELLI 360406026300
    MAGNETI MARELLI 361302040170
    MALÒ 1110177
    MANDO MBC035007
    MAPCO 15819
    MASTER-SPORT 24012401681-PCS-MS
    MASTER-SPORT 24012401681-SET-MSP
    MASTER-SPORT 24012401681-PCS-MSP
    MASTER-SPORT 24012401681-SET-MS
    MAXGEAR 19-0841MAX
    MAXGEAR 19-0841SPORT
    MAXGEAR 19-0841
    MAXTECH 827027
    MERITOR MBR6003
    METELLI 23-0702
    METZGER 6110405
    MEYLE 715 521 7021
    € 36,59
    MINTEX MDC1082
    MINTEX MDC1082C
    MINTEX MDC1082CMX
    MJA MB100540
    MOTAQUIP LVBE221Z
    MOTRIO 8671019242
    MTR 13217031
    NATIONAL NBD994
    NK 202544
    OPEN PARTS BDA1946.20
    OPTIMAL BS-6040HC
    PAGID 54038NC
    PILENGA V252
    ProfiPower 3B1234
    QUARO QD4053
    QUINTON HAZELL BDC5214
    R BRAKE 78RBD25613
    RAICAM RD00254
    RAP BRAKES R-D0551
    REMSA 6608.10
    RIDEX 82B0749
    ROADHOUSE 6608.10
    ROTINGER RT 2711-GL T5
    ROTINGER RT 2711-GL T3
    ROTINGER RT 2711
    ROTINGER RT 2711-GL
    ROTINGER RT 2711-GL T6
    ROTINGER RT 2711-GL T9
    SAMKO F1002V
    SASIC 9004827J
    SKF VKBD 80279 V2
    SRLine S71-0207
    STARK SKBD-0022899
    STELLOX 6020-2544VK-SX
    STELLOX 6020-2544V-SX
    SWAG 50 91 9515
    TEXTAR 92103803
    € 62,14
    TOMEX Brakes TX 70-96
    TOPRAN 302 087
    TRUSTING DF810
    TRW DF4217 (this product)
    VAICO V25-80015
    VALEO 186710
    VALEO 673130
    WOKING D6608.10
    ZIMMERMANN 250.1349.20
    € 49,09
    ZentParts Z06212

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.3 16V RWD (F_B_, F_C_, F_A_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI (F_B_, F_C_, F_A_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_, F_A_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE (F_C_, F_B_, F_A_) - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 16V (F_A_, F_B_, F_C_, F_D_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 90pk, 66kw - D2FA, D2FB, D2FE
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 16V RWD (FAA_, FAB_, FAC_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 BiFuel - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TD - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA

  • Original part numbers

    4041428 FORD
    1387781 FORD
    1568640 FORD
    1738815 FORD
    YC1W-1125-B1B FORD
    YC1J-1125-B2B FORD
    YC1W-1125-B1A FORD
    YC1W-1125-BA FORD

  • Manufacturer

    TRW

    TRW aftermarket is one of the largest suppliers of original car parts and OE quality parts. TRW is the ideal partner for the initial installation on vehicles for many car brands. TRW has become known for producing exceptional quality brake system, steering and chassis components.


    TRW invests in its own production lines, which means that the majority of the products are manufactured within the EU. Because TRW stands for quality, the products are not only tested in-house, but independent external parties are also engaged to guarantee the quality of the TRW products.

    TRW products are characterized on the following points:


    • Originally supplied on over 250 car models

    • 40 major car manufacturers underline TRW quality at first installation

    • Very high quality, equal to original


    We currently have the following TRW products in our range:


    • Shock Absorbers & Springs

    • Brake Pads, Brake Shoes & Calipers

    • Brake discs

    • Tie rod ends

    • Ball Joints

    • Wishbones

    • Wishbone bushes

    • Brake and clutch cylinders

    • Thrust bearings

    • Brake hoses
