Brake Disc FORMULA F COAT Z 150.3480.32 Zimmermann

Brake Disc FORMULA F COAT Z 150.3480.32 Zimmermann Brake Disc FORMULA F COAT Z 150.3480.32 Zimmermann, Image 2

Product number: 0848385

Manufacturer number: 150.3480.32

EAN: 4250238769477

€ 161,98

Incl. VAT
View product specifications
In stock
Delivery 16-11-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Shipment within 6 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: 056 771 9932

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    These Zimmermann Formula F brake discs are specially designed for newer BMWs. They are constructed of lightweight material with a protective coating.

    Specially developed:

    • Specially developed for new BMWs
    • Developed for sports use
    • 15% lower sprung weight, so more comfort
    • Do not deform at extreme temperatures

    Key benefits:

    • Equipped with a lightweight aluminum hub
    • Provided with rust-resistant Coat Z coating
    • High carbon alloy
    • Better cooling

    Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.

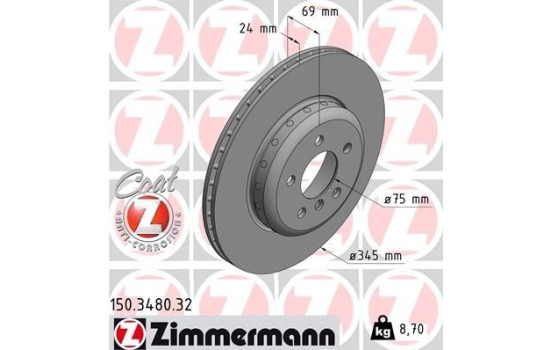

    Outer diameter [mm]345
    Fitting PositionRear Axle
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Brake Disc TypeTwo-piece brake disc
    Aluminum brake disc head
    Centering Diameter [mm]75
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]69
    Brake disc thickness (mm)24
    Minimum thickness (mm)22,4
    Weight [kg]8,7
    Wheel bolt pitch [mm]120

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18206
    € 90,99
    ABTEX BD2149V
    AISIN W6R657S
    ASAM 102612
    ASHIKA 61-00-0124C
    ATE 24.0124-0233.2
    € 170,08
    BLUE PRINT ADB114367
    € 85,85
    BOSCH 0 986 479 E08
    € 162,20
    BOSCH 0 986 479 D59
    BREMBO 09.C404.13
    € 136,41
    BREMBO 09.C404.1S
    BREMSI CD8037V
    DACO 600351
    DELPHI BG9130BC
    DENCKERMANN B131005
    EUROBRAKE 5815341594
    EUROBRAKE 58153415117
    FEBI BILSTEIN 104805
    € 84,67
    FERODO DDF2037VC-1
    FERODO DDF2037C-1
    € 69,32
    FREMAX BD-3562
    FREY 845217601
    FTE 9081209
    HELLA 8DD 355 120-871
    HELLA 8DD 355 119-281
    JAPANPARTS DP-0124C
    JAPKO 610124C
    JPN 40H9122-JPN
    JURATEK BMW185
    Manufacturer Manufacturer number Price
    JURID 563149JVC-1
    LYNXauto BN-1325
    MAGNETI MARELLI 360406130804
    MAPCO 15012C
    MASTER-SPORT 24012402331PR-PCS-MS
    MASTER-SPORT 24012402331PR-PCS-MSP
    MASTER-SPORT 24012402331PR-SET-MS
    MASTER-SPORT 24012402331PR-SET-MSP
    MATRIX PRO MX01423230
    MAXTECH 873086
    MEYLE 383 523 1003/PD
    € 104,64
    MOTRIO 8550502149
    NK 341594
    NK 3415117
    OPTIMAL BS-9360HC
    PAGID 65150NHC
    ProfiPower 3B2221
    RIDEX 82B0772
    RIDEX 82B0772P
    STARK SKBD-0022922
    SWAG 20 10 4805
    TEXTAR 92253925
    € 133,83
    TOPRAN 502 241
    VALEO 672690
    ZIMMERMANN 150.3480.54
    € 155,98
    ZIMMERMANN 150.3480.52
    € 121,74
    ZIMMERMANN 150.3480.20
    € 98,54
    ZIMMERMANN 150.3480.55
    € 155,98
    ZIMMERMANN 150.3480.32 (this product)

  • Applicability

    BMW
    5
    5 (F10) | 06.2009-10.2016 525 d - 1995ccm, 211pk, 155kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 525 d - 1995ccm, 218pk, 160kw - N47 D20 D
    5 (F10) | 06.2009-10.2016 525 d - 2993ccm, 204pk, 150kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 528 i - 1997ccm, 245pk, 180kw - N20 B20 A
    5 (F10) | 06.2009-10.2016 530 d - 2993ccm, 245pk, 180kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d - 2993ccm, 258pk, 190kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d - 2993ccm, 286pk, 210kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 530 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    5 (F10) | 06.2009-10.2016 535 d - 2993ccm, 299pk, 220kw - N57 D30 B
    5 (F10) | 06.2009-10.2016 535 d - 2993ccm, 313pk, 230kw - N57 D30 B
    5 (F10) | 06.2009-10.2016 535 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    5 (F10) | 06.2009-10.2016 535 i - 2979ccm, 306pk, 225kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i - 2979ccm, 326pk, 240kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i xDrive - 2979ccm, 306pk, 225kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 535 i xDrive - 2979ccm, 326pk, 240kw - N55 B30 A
    5 (F10) | 06.2009-10.2016 550 i - 4395ccm, 408pk, 300kw - N63 B44 A
    5 (F10) | 06.2009-10.2016 550 i - 4395ccm, 449pk, 330kw - N63 B44 B
    5 (F10) | 06.2009-10.2016 550 i xDrive - 4395ccm, 408pk, 300kw - N63 B44 A
    5 (F10) | 06.2009-10.2016 550 i xDrive - 4395ccm, 449pk, 330kw - N63 B44 B
    5 (F10) | 06.2009-10.2016 M 550 d xDrive - 2993ccm, 381pk, 280kw - OM 616.963, 4RB, 4RC, 4GA, RF, F2N 750, J7R 740, J7T 754, J7T 755, 125 B.000, 132 C3.031, 138 C2.04
    5 Gran
    5 Gran Turismo (F07) | 01.2009-02.2017 520 d - 1995ccm, 163pk, 120kw - N47 D20 C
    5 Gran Turismo (F07) | 01.2009-02.2017 520 d - 1995ccm, 184pk, 135kw - N47 D20 C
    5 Gran Turismo (F07) | 01.2009-02.2017 528 i - 1997ccm, 245pk, 180kw - N20 B20 A
    5 Gran Turismo (F07) | 01.2009-02.2017 530 d - 2993ccm, 211pk, 155kw - N57 D30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 530 d - 2993ccm, 245pk, 180kw - N57 D30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 530 d - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 530 d xDrive - 2993ccm, 245pk, 180kw - N57 D30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 530 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 535 d - 2993ccm, 299pk, 220kw - N57 D30 B
    5 Gran Turismo (F07) | 01.2009-02.2017 535 d - 2993ccm, 313pk, 230kw - N57 D30 B
    5 Gran Turismo (F07) | 01.2009-02.2017 535 d xDrive - 2993ccm, 299pk, 220kw - N57 D30 B
    5 Gran Turismo (F07) | 01.2009-02.2017 535 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    5 Gran Turismo (F07) | 01.2009-02.2017 535 i - 2979ccm, 306pk, 225kw - N55 B30 A
    5 Gran Turismo (F07) | 01.2009-02.2017 535 i xDrive - 2979ccm, 306pk, 225kw - N55 B30 A
    5 Touring
    5 Touring (F11) | 11.2009-02.2017 520 d - 1995ccm, 190pk, 140kw - B47 D20 A
    5 Touring (F11) | 11.2009-02.2017 520 d xDrive - 1995ccm, 190pk, 140kw - B47 D20 A
    5 Touring (F11) | 11.2009-02.2017 525 d - 1995ccm, 211pk, 155kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d - 1995ccm, 218pk, 160kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d - 2993ccm, 204pk, 150kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 525 d xDrive - 1995ccm, 211pk, 155kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 525 d xDrive - 1995ccm, 218pk, 160kw - N47 D20 D
    5 Touring (F11) | 11.2009-02.2017 530 d - 2993ccm, 245pk, 180kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d - 2993ccm, 286pk, 210kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 530 d xDrive - 2993ccm, 286pk, 210kw - N57 D30 A
    5 Touring (F11) | 11.2009-02.2017 535 d - 2993ccm, 299pk, 220kw - N57 D30 B
    5 Touring (F11) | 11.2009-02.2017 535 d - 2993ccm, 313pk, 230kw - N57 D30 B
    5 Touring (F11) | 11.2009-02.2017 535 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    5 Touring (F11) | 11.2009-02.2017 535 i - 2979ccm, 306pk, 225kw - N55 B30 A
    5 Touring (F11) | 11.2009-02.2017 535 i - 2979ccm, 326pk, 240kw - N55 B30 A
    5 Touring (F11) | 11.2009-02.2017 535 i xDrive - 2979ccm, 306pk, 225kw - N55 B30 A
    5 Touring (F11) | 11.2009-02.2017 535 i xDrive - 2979ccm, 326pk, 240kw - N55 B30 A
    6 Convertible
    6 Convertible (F12) | 12.2010-06.2018 640 i - 2979ccm, 320pk, 235kw - AR 30550, N55 B30 A, J8S 711, B1A (XU51C), D9B (XUD9A), 14 K4C, DHX (XUD9TE), CDZ (TU9M), D8B (XUD9
    6 Convertible (F12) | 12.2010-06.2018 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Convertible (F12) | 12.2010-06.2018 650 i - 4395ccm, 408pk, 300kw - AR 30587, AR 30550, AR 06202, VM 81 A, AR 67101, AR 06416, N55 B30 A, J8S 711, B1A (XU51C), D9B (XU
    6 Convertible (F12) | 12.2010-06.2018 650 i - 4395ccm, 405pk, 298kw - N63 B44 A
    6 Convertible (F12) | 12.2010-06.2018 650 i xDrive - 4395ccm, 407pk, 300kw - N63 B44 A
    6 Coupe
    6 Coupe (F13) | 07.2011-10.2017 640 d - 2993ccm, 313pk, 230kw - N57 D30 B
    6 Coupe (F13) | 07.2011-10.2017 640 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    6 Coupe (F13) | 07.2011-10.2017 640 i - 2979ccm, 320pk, 235kw - AR 30587, AR 30550, AR 06202, VM 81 A, AR 67101, AR 06416, N55 B30 A, J8S 711, B1A (XU51C), D9B (XU
    6 Coupe (F13) | 07.2011-10.2017 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Coupe (F13) | 07.2011-10.2017 650 i - 4395ccm, 408pk, 300kw - AR 30502, AR 30587, AR 30550, AR 06202, VM 81 A, AR 67101, AR 06416, N55 B30 A, J8S 711, B1A (XU51C
    6 Gran
    6 Gran Coupe (F06) | 03.2012-10.2018 640 d - 2993ccm, 313pk, 230kw - N57 D30 B
    6 Gran Coupe (F06) | 03.2012-10.2018 640 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    6 Gran Coupe (F06) | 03.2012-10.2018 640 i - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Gran Coupe (F06) | 03.2012-10.2018 640 i xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    6 Gran Coupe (F06) | 03.2012-10.2018 650 i - 4395ccm, 449pk, 330kw - N63 B44 B
    6 Gran Coupe (F06) | 03.2012-10.2018 650 i xDrive - 4395ccm, 449pk, 330kw - N63 B44 B
    7
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 d - 2993ccm, 211pk, 155kw - N57 D30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 d - 2993ccm, 245pk, 180kw - N57 D30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 d - 2993ccm, 258pk, 190kw - N57 D30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 d xDrive - 2993ccm, 211pk, 155kw - N57 D30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 d xDrive - 2993ccm, 258pk, 190kw - N57 D30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 730 i, Li - 2996ccm, 258pk, 190kw - N52 B30 A, N52 B30 BF, N52 B30 AF
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 d - 2993ccm, 306pk, 225kw - N57 D30 B
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 d - 2993ccm, 313pk, 230kw - N57 D30 B
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 d xDrive - 2993ccm, 313pk, 230kw - N57 D30 B
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 d xDrive - 2993ccm, 306pk, 225kw - N57 D30 B, N63 B44 A, 182 A3.000, 182 A8.000, Y5A, AR 67106, AR 67601, LNP
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 i, Li - 2979ccm, 326pk, 240kw - N54 B30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 i, Li - 2979ccm, 320pk, 235kw - N55 B30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 740 i, Li xDrive - 2979ccm, 320pk, 235kw - N55 B30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 ActiveHybrid 7 - 2979ccm, 354pk, 260kw - N55 B30 A
    7 (F01, F02, F03, F04) | 02.2008-12.2015 ActiveHybrid 7 - 4395ccm, 465pk, 342kw - N63 B44 A, 182 A3.000, 182 A8.000, Y5A, AR 67106, AR 67601, LNP

  • Original part numbers

    3421 6 775 289 BMW
    3420 6 894 381 BMW

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
