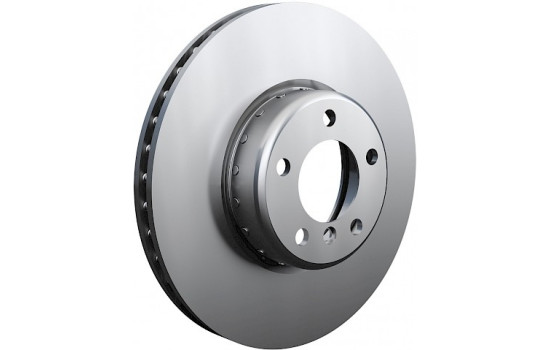

Brake Disc FORMULA F COAT Z 150.3490.32 Zimmermann

Brake Disc FORMULA F COAT Z 150.3490.32 Zimmermann Brake Disc FORMULA F COAT Z 150.3490.32 Zimmermann, Image 2

Product number: 0848390

Manufacturer number: 150.3490.32

EAN: 4250238769354

€ 140,68

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    These Zimmermann Formula F brake discs are specially designed for newer BMWs. They are constructed of lightweight material with a protective coating.

    Specially developed:

    • Specially developed for new BMWs
    • Developed for sports use
    • 15% lower sprung weight, so more comfort
    • Do not deform at extreme temperatures

    Key benefits:

    • Equipped with a lightweight aluminum hub
    • Provided with rust-resistant Coat Z coating
    • High carbon alloy
    • Better cooling

    Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.

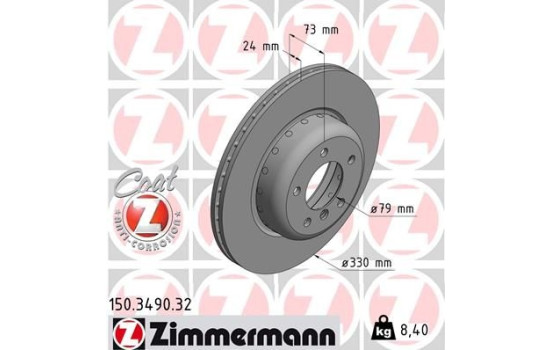

    Outer diameter [mm]330
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]120
    Brake Disc TypeTwo-piece brake disc
    QualityAlu-Topf is enjoying
    Alu hub riveted
    Centering Diameter [mm]79
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]73
    Brake disc thickness (mm)24
    Minimum thickness (mm)22,4
    Weight [kg]8,4

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18651
    € 68,49
    AP 20103 Z
    BLUE PRINT ADB114392
    € 62,46
    BOSCH 0 986 479 E23
    € 169,82
    BRECO BZ 8110
    BREMBO 09.C402.13
    € 133,28
    BREMSI CD8617V
    FEBI BILSTEIN 106492
    € 61,65
    FERODO DDF2617VC-1
    Manufacturer Manufacturer number Price
    HELLA 8DD 355 120-761
    HELLA PAGID 8DD 355 120-761
    € 89,67
    JURID 563202JVC-1
    MEYLE 383 521 1001/PD
    € 42,49
    SWAG 20 10 6492
    TEXTAR 92269725
    ZIMMERMANN 150.3490.20
    € 87,01
    ZIMMERMANN 150.3490.52
    € 107,68
    ZIMMERMANN 150.3490.32 (this product)

  • Applicability

    BMW
    Z4 Roadster
    Z4 Roadster (E89) | 02.2009-08.2016 sDrive 28 i - 1997ccm, 245pk, 180kw - N20 B20 A
    Z4 Roadster (E89) | 02.2009-08.2016 sDrive 30 i - 2996ccm, 258pk, 190kw - N52 B30 A, N52 B30 BF, N52 B30 B
    Z4 Roadster (E89) | 02.2009-08.2016 sDrive 35 i - 2979ccm, 306pk, 225kw - N54 B30 A

  • Original part numbers

    3411 6 782 601 BMW
    3411 6 794 427 BMW

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
