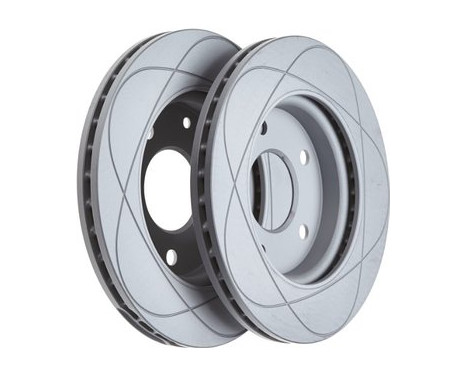

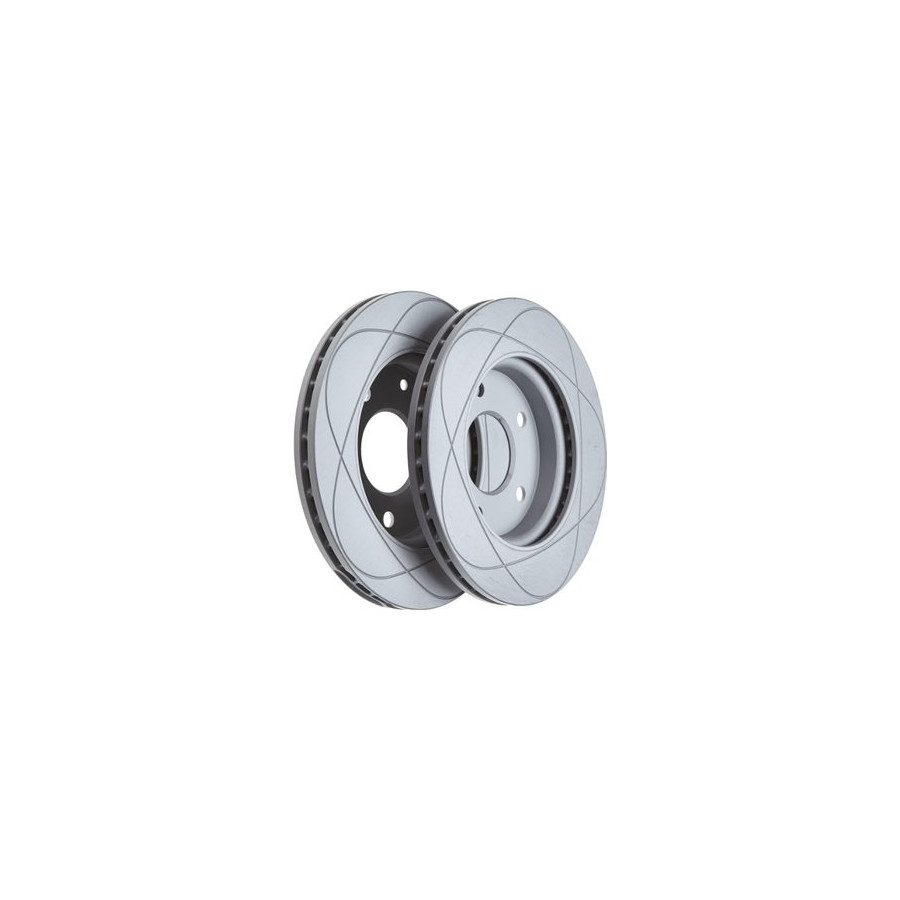

Brake Disc PowerDisc 24.0322-0103.1 ATE
Product number: 0384573
Manufacturer number: 24.0322-0103.1
EAN: 4006633276160
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

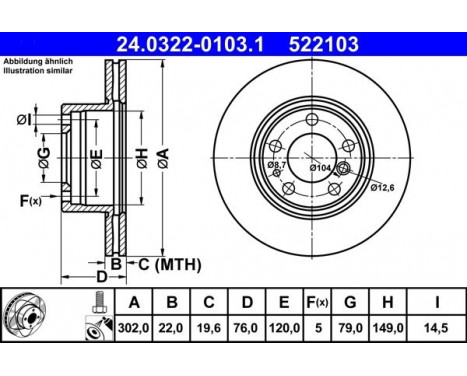

Outer diameter [mm] 302,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 149,0 Bolt Hole Circle Ø [mm] 120,0 Centering Diameter [mm] 79,0 Machining High-carbon Bore Ø [mm] 14,5 MAPP code available Warranty 2 years application Ventilated disc PowerDisc Height [mm] 76,0 Additional information With screws Brake disc thickness (mm) 22,0 Minimum thickness (mm) 19,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 15870 A.B.S. 09.5142.24 AP X 24230 AP 24230 E ASHIKA 60-00-0119C ASHIKA 60-00-0119 ATE 24.0322-0103.1 (this product) BELACO BDS1887 BLUE PRINT ADB114393 BOSCH 0 986 478 318 BRECO BS 8248 BREMBO 09.5142.76 BREMBO 09.5142.24 BREMSI CD6211V DENCKERMANN B130025 DON PCD14652 EUROBRAKE 5815311519 FEBI BILSTEIN 04438 FERODO DDF211 FREMAX BD-8040 FTE BS3642 GIRLING 6025561 HELLA 8DD 355 101-711 HELLA PAGID 8DD 355 101-711 IJS GROUP 80-1922 JAPANPARTS DI-0119 JAPANPARTS DI-0119C JAPKO 600119C JAPKO 600119 JURID 561478J JURID 561478JC KAWE 6348 10 KRAFT AUTOMOTIVE 6042540 MAGNETI MARELLI 360406015705 MAGNETI MARELLI 360406015700 MAPCO 15715 MASTER-SPORT 24012201031PR-PCS-MS MASTER-SPORT 24012201031-SET-MS Manufacturer Manufacturer number Price MASTER-SPORT 24012201031-PCS-MS MAXGEAR 19-0689 MAXGEAR 19-0689SPORT MAXTECH 873001.0000 MAXTECH 873001.0080 MAXTECH 873001.6060 MAXTECH 873001.6880 MAXTECH 873001.6980 MAXTECH 873001.0060 METZGER 6110461 MEYLE 315 521 3008 MINTEX MDC459 NK 311519 OPTIMAL BS-3480C OPTIMAL BS-3480 PILENGA V116 PROTECHNIC PRD2127 RAICAM RD00045 REMSA 6348.10 ROADHOUSE 6348.10 ROTINGER RT 2047-GL T3 ROTINGER RT 2047-GL T5 ROTINGER RT 2047-GL ROTINGER RT 2047-GL T9 ROTINGER RT 2047-GL T6 ROTINGER RT 2047 STELLOX 6020-1519V-SX STELLOX 6020-1519VK-SX SWAG 20 90 4438 TEXTAR 92042203 TRUCKTEC AUTOMOTIVE 08.34.028 TRW DF2556 VAICO V20-80039 VALEO 186767 WOKING D6348.10 ZIMMERMANN 150.1264.20 ZIMMERMANN 150.1264.52 sbs 1815311519 -
Applicability
BMW 5 5 (E34) | 06.1987-12.1995 520 i - 1990ccm, 129pk, 95kw - M20 B20 (206KA) 5 (E34) | 06.1987-12.1995 520 i 24V - 1990ccm, 150pk, 110kw - M50 B20 (206S1), M50 B20 (206S2) 5 (E34) | 06.1987-12.1995 525 i - 2494ccm, 170pk, 125kw - M20 B25 (256K1) 5 (E34) | 06.1987-12.1995 525 i 24V - 2494ccm, 192pk, 141kw - M50 B25 (256S1), M50 B25 (256S2) 5 (E34) | 06.1987-12.1995 530 i - 2986ccm, 188pk, 138kw - M30 B30 (306KA) 5 (E34) | 06.1987-12.1995 530 i V8 - 2997ccm, 218pk, 160kw - M60 B30 (308S1) 5 (E34) | 06.1987-12.1995 535 i - 3430ccm, 211pk, 155kw - M30 B34 (346KB) 5 Touring 5 Touring (E34) | 07.1991-07.1996 520 i - 1990ccm, 150pk, 110kw - M50 B20 (206S1), M50 B20 (206S2) 5 Touring (E34) | 07.1991-07.1996 525 i - 2494ccm, 192pk, 141kw - M50 B25 (256S1), M50 B25 (256S2) 5 Touring (E34) | 07.1991-07.1996 525 td - 2497ccm, 115pk, 85kw - M51 D25 (256T1) 5 Touring (E34) | 07.1991-07.1996 525 tds - 2497ccm, 143pk, 105kw - M51 D25 (256T1) 5 Touring (E34) | 07.1991-07.1996 530 i - 2997ccm, 218pk, 160kw - M60 B30 (308S1) 7 7 (E32) | 03.1985-09.1994 730 i, iL - 2986ccm, 197pk, 145kw - M30 B30 (306EA) 7 (E32) | 03.1985-09.1994 730 i, iL - 2986ccm, 188pk, 138kw - M30 B30 (306KA) 7 (E32) | 03.1985-09.1994 730 i, iL V8 - 2997ccm, 218pk, 160kw - M60 B30 (308S1) -
Original part numbers
34 11 1 158 040 BMW 34 11 1 159 897 BMW 34 11 1 160 936 BMW -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
