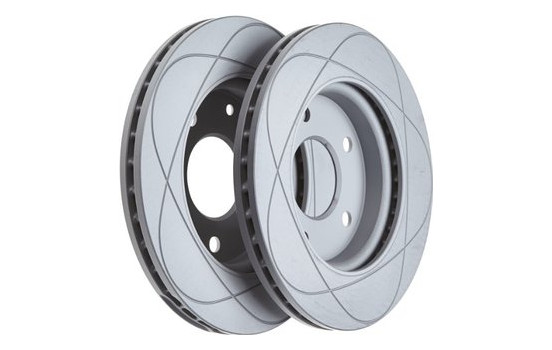

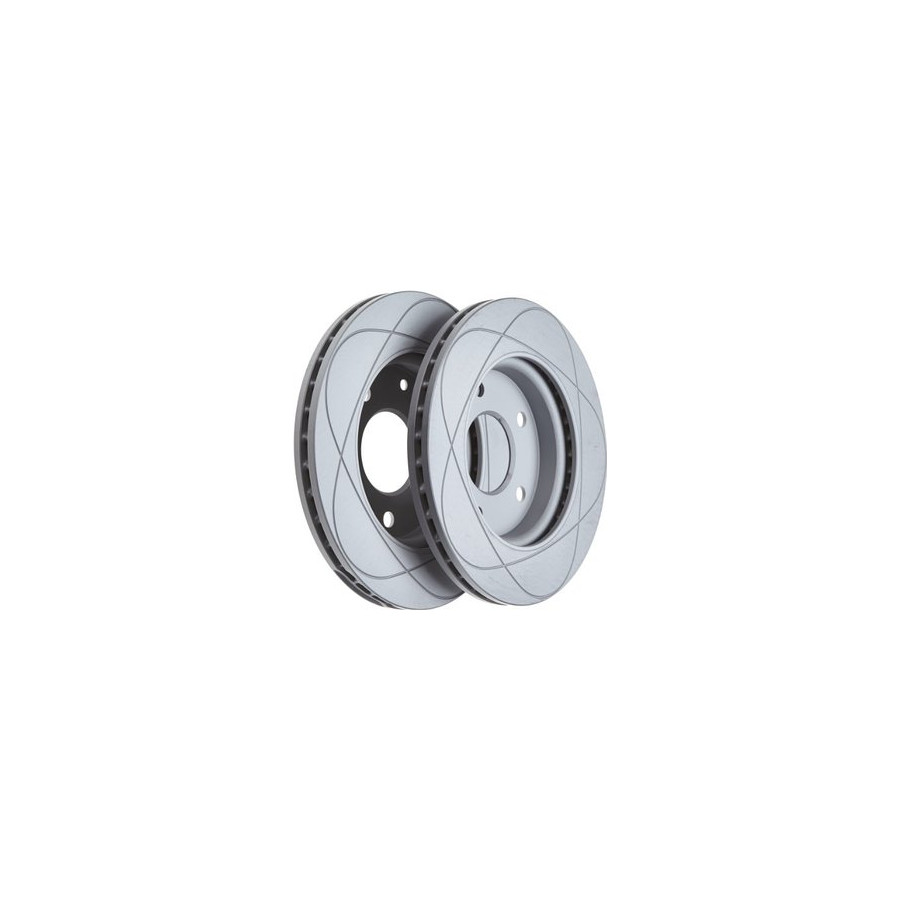

Brake Disc PowerDisc 24.0324-0166.1 ATE
Product number: 0384157
Manufacturer number: 24.0324-0166.1
EAN: 4006633120333
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

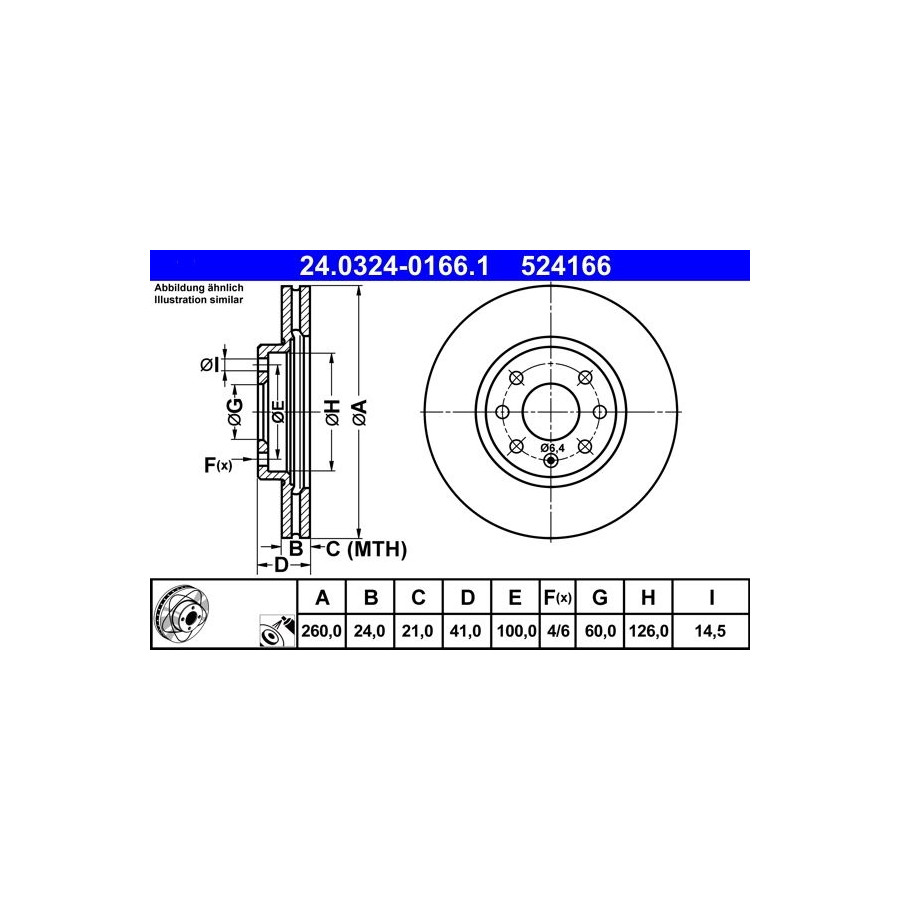

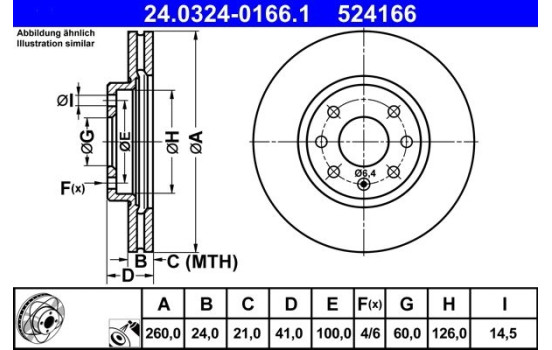

Outer diameter [mm] 260,0 Brake Disc Type Vented Surface Coated Number of Holes 4 Assembly Front Brake pads Exclusive Inner diameter [mm] 126,0 Bolt Hole Circle Ø [mm] 100,0 Centering Diameter [mm] 60,0 Machining Alloyed / High-carbon Bore Ø [mm] 14,5 MAPP code available No. of holes 2 6 Warranty 2 years application Ventilated disc PowerDisc Height [mm] 41,0 Brake disc thickness (mm) 24,0 Minimum thickness (mm) 21,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17148 A.B.S. 09.8601.11 AP 24796 X AP 24796 AP X 24796 AP 24796 V ASAM 74851 ASHIKA 60-00-0406 ASHIKA 60-00-0406C ASHUKI P330-003 ATE 24.0324-0166.1 (this product) AUTOMEGA 120067010 BELACO BDS1113 BLUE PRINT ADW194327 BORG & BECK BBD4253 BOSCH 0 986 478 730 BOSCH 0 986 479 B46 BRECO BS 8422 BRECO BV 8422 BREMBO 09.8601.10 BREMBO 09.8601.11 BREMBO 09.8601.1X BREMBO 09.8601.75 BREMSI CD7131V BSG BSG 65-210-006 CASALS 55439 CHAMPION 562196CH CIFAM 800-604C DACO 603617 DENCKERMANN B130145 DON PCD10732 EUROBRAKE 5815313637 EUROBRAKE 5815203637 FAST FT31121 FEBI BILSTEIN 19509 FERODO DDF1131 FERODO DDF1131C FI.BA FBD150 FREMAX BD-9000 FTE BS5219 GIRLING 6041651 HELLA 8DD 355 127-731 HELLA 8DD 355 108-271 HELLA PAGID 8DD 355 108-271 HELLA PAGID 8DD 355 127-731 JAPANPARTS DI-0406 JAPANPARTS DI-0406C JAPKO 600406C JAPKO 600406 JPN 30H9064-JPN JURATEK VAU106 JURID 562196JC JURID 562196J KEY PARTS KBD4253 KLAXCAR FRANCE 25065z KRAFT AUTOMOTIVE 6041670 MAGNETI MARELLI 360406039500 MAGNETI MARELLI 361302040190 Manufacturer Manufacturer number Price MAGNETI MARELLI 360406039505 MAGNETI MARELLI 360406039502 MALÒ 1110180 MASTER-SPORT 24012401661-PCS-MS MASTER-SPORT 24012401661-SET-MS MAXGEAR 19-0808MAX MAXGEAR 19-0808SPORT MAXGEAR 19-0808 MAXTECH 871526.6060 MAXTECH 871526.0000 MAXTECH 871526.6980 MAXTECH 871526.6880 MAXTECH 871526.0080 MAXTECH 871526.0060 METELLI 23-0604C METZGER 6110145 MEYLE 615 521 6016 MINTEX MDC1455C MINTEX MDC1455 MOTRIO 8671012051 MTR 12108559 NK 203637 NK 313637 NPS O330L02 OPTIMAL BS-6260 OPTIMAL BS-6260C Omnicraft 2133990 PILENGA V761 PROTECHNIC PRD2516 ProfiPower 3B1056 QUARO QD2181HC QUARO QD2181 RAICAM RD00599 RIDEX 82B0080 ROTINGER RT 2724-GL T3 ROTINGER RT 2724-GL ROTINGER RT 2724 ROTINGER RT 2724-GL T5 ROTINGER RT 2724-GL T9 ROTINGER RT 2724-GL T6 STARK SKBD-0020082 STELLOX 6020-3637V-SX STELLOX 6020-3637VK-SX SWAG 40 91 9509 TEXTAR 92111103 TOMEX Brakes TX 70-73 TOPRAN 206 120 TRUSTING DF837 TRW DF4165 VALEO 672658 VALEO 186759 WAGNER WGR1131-1 ZIMMERMANN 430.1490.20 ZIMMERMANN 430.1490.52 fri.tech. BD0837 sbs 1815203637 sbs 1815313637 -
Applicability
OPEL COMBO Box COMBO Box Body/MPV | 10.2001-12.2012 1.3 CDTI 16V - 1248ccm, 69pk, 51kw - Z 13 DT COMBO Box Body/MPV | 10.2001-12.2012 1.3 CDTI 16V - 1248ccm, 75pk, 55kw - Z 13 DTJ COMBO Box Body/MPV | 10.2001-12.2012 1.4 16V - 1364ccm, 90pk, 66kw - Z 14 XEP COMBO Box Body/MPV | 10.2001-12.2012 1.6 - 1598ccm, 87pk, 64kw - Z 16 SE COMBO Box Body/MPV | 10.2001-12.2012 1.7 DI 16V - 1686ccm, 65pk, 48kw - Y 17 DTL COMBO Box Body/MPV | 10.2001-12.2012 1.7 DTI 16V - 1686ccm, 75pk, 55kw - Y 17 DT COMBO Tour COMBO Tour | 10.2001-12.2011 1.3 CDTI 16V - 1248ccm, 69pk, 51kw - Z 13 DT, Y 13 DT COMBO Tour | 10.2001-12.2011 1.3 CDTI 16V - 1248ccm, 75pk, 55kw - Z 13 DTJ COMBO Tour | 10.2001-12.2011 1.4 - 1364ccm, 90pk, 66kw - Z 14 XEP COMBO Tour | 10.2001-12.2011 1.6 - 1598ccm, 87pk, 64kw - Z 16 SE COMBO Tour | 10.2001-12.2011 1.7 DI 16V - 1686ccm, 65pk, 48kw - Y 17 DTL COMBO Tour | 10.2001-12.2011 1.7 DTI 16V - 1686ccm, 75pk, 55kw - Y 17 DT CORSA C CORSA C (X01) | 09.2000-12.2009 1.3 CDTI (F08, F68) - 1248ccm, 70pk, 51kw - Z 13 DT, Y 13 DT CORSA C (X01) | 09.2000-12.2009 1.4 (F08, F68) - 1389ccm, 90pk, 66kw - Z 14 XE CORSA C (X01) | 09.2000-12.2009 1.4 Twinport (F08, F68) - 1364ccm, 90pk, 66kw - Z 14 XEP CORSA C (X01) | 09.2000-12.2009 1.7 DTI (F08, F68) - 1686ccm, 75pk, 55kw - Y 17 DT CORSA C (X01) | 09.2000-12.2009 1.8 (F08, F68) - 1796ccm, 125pk, 92kw - Z 18 XE CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.3 CDTI 16V (F08, W5L) - 1248ccm, 69pk, 51kw - Z 13 DT MERIVA A MERIVA A MPV (X03) | 05.2003-05.2010 1.4 16V Twinport (E75) - 1364ccm, 90pk, 66kw - Z 14 XEP MERIVA A MPV (X03) | 05.2003-05.2010 1.4 16V Twinport LPG (E75) - 1364ccm, 90pk, 66kw - Z 14 XEP MERIVA A MPV (X03) | 05.2003-05.2010 1.6 (E75) - 1598ccm, 87pk, 64kw - Z 16 SE TIGRA TwinTop TIGRA TwinTop (X04) | 06.2004-12.2010 1.3 CDTI (R97) - 1248ccm, 69pk, 51kw - Z 13 DT TIGRA TwinTop (X04) | 06.2004-12.2010 1.4 (R97) - 1364ccm, 90pk, 66kw - Z 14 XEP TIGRA TwinTop (X04) | 06.2004-12.2010 1.8 (R97) - 1796ccm, 125pk, 92kw - Z 18 XE -
Original part numbers
5 69 000 OPEL 9196050 OPEL 9196050 VAUXHALL 5 69 000 VAUXHALL -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
