Brake Disc SPORT BRAKE DISC COAT Z 100.3330.52 Zimmermann
Product number: 0846523
Manufacturer number: 100.3330.52
EAN: 4250238750918
-
Free 30 days exchanges
-
Any part, any car
-
Fast Next day delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

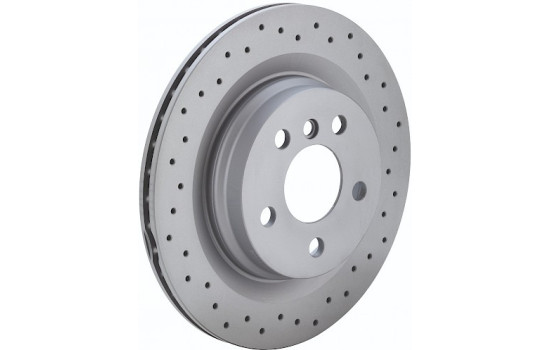

Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

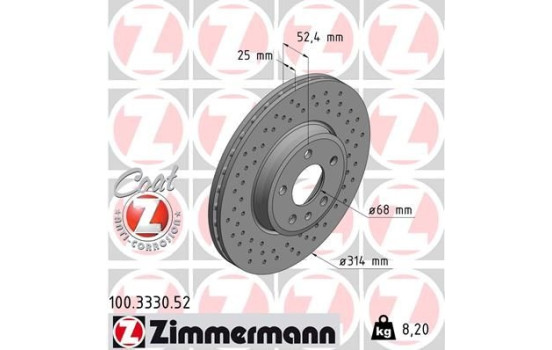

Outer diameter [mm] 314 Rim Hole Number 5 Brake Disc Type Perforated Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 112 Centering Diameter [mm] 68 Hole Arrangement / Number 6/5 Machining High-carbon Inspection Tag KBA 60872 Guarantee 2 years Height [mm] 52 Brake disc thickness (mm) 25 Minimum thickness (mm) 23 Weight [kg] 8,20 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17862 AP 25212 AP 25212 X AP 25212 V ASHIKA 60-00-0916C ATE 24.0125-0184.1 ATE 24.0325-0184.1 BELACO BDS1041HC BORG & BECK BBD4689 BOSCH 0 986 479 467 BRECO BS 8822 BRECO BV 8822 BREMBO 09.A820.1X BREMBO 09.A820.10 BREMBO 09.A820.11 BREMSI CD7663V CHAMPION 562466CH DENCKERMANN B130474 DON PCD10342 Dr!ve+ DP1010.11.0619 FERODO DDF1663 FERODO DDF1663C FREMAX BD-6077 GALFER B1.G225-0184.1 HELLA 8DD 355 113-881 HELLA 8DD 355 128-711 HELLA PAGID 8DD 355 128-711 HELLA PAGID 8DD 355 113-881 HERTH+BUSS JAKOPARTS J3300823 JAPANPARTS DI-0916C JAPKO 600916C JURATEK VAG204 JURID 562466JC JURID 562466J KEY PARTS KBD4689 KLAXCAR FRANCE 25739z LORO 231-03-149 Manufacturer Manufacturer number Price MAGNETI MARELLI 361302040580 MAPCO 25879C MAPCO 25879 MASTER-SPORT 24012501841-SET-MSP MASTER-SPORT 24012501841-PCS-MS MASTER-SPORT 24012501841-PCS-MSP MASTER-SPORT 24012501841SE-SET-MSP MASTER-SPORT 24012501841PR-SET-MS MASTER-SPORT 24012501841SE-SET-MS MASTER-SPORT 24012501841PR-PCS-MS MASTER-SPORT 24012501841-SET-MS MASTER-SPORT 24012501841PR-PCS-MSP MAXTECH 871139 METZGER 6110138 MINTEX MDC2200C MINTEX MDC2746 Omnicraft 2134052 QUARO QD8004 QUARO QD8004HC ROTINGER RT 4512HP ROTINGER RT 4512-GL T3 ROTINGER RT 4512HP-GL T9 ROTINGER RT 4512HP-GL T3 ROTINGER RT 4512-GL T6 ROTINGER RT 4512 ROTINGER RT 4512HP-GL T5 ROTINGER RT 4512HP-GL ROTINGER RT 4512HP-GL T6 ROTINGER RT 4512-GL T5 ROTINGER RT 4512-GL ROTINGER RT 4512-GL T9 TEXTAR 92159905 TEXTAR 92159903 TRUCKTEC AUTOMOTIVE 07.35.272 ZIMMERMANN 100.3330.20 ZIMMERMANN 100.3330.52 (this product) -
Applicability
AUDI A4 Allroad A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 150pk, 110kw - CJCD, CSUA A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC, CPMA A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TFSI quattro - 1984ccm, 220pk, 162kw - CPMB A4 Allroad B8 (8KH) | 04.2009-05.2016 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA A4 Allroad B8 (8KH) | 04.2009-05.2016 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVB, CKVC A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TDI quattro - 1968ccm, 190pk, 140kw - DESA, DETA, DFVA A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TDI quattro - 1968ccm, 163pk, 120kw - DETB A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TDI quattro - 1968ccm, 150pk, 110kw - DEUA A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TDI quattro - 1968ccm, 136pk, 100kw - DEUB A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TFSI quattro - 1984ccm, 252pk, 185kw - CYRB, CYMC, DLHB A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 2.0 TFSI quattro - 1984ccm, 249pk, 183kw - CYRC A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 3.0 TDI quattro - 2967ccm, 272pk, 200kw - CRTC A4 Allroad B9 (8WH, 8WJ) | 01.2016-10.2019 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CSWB A4 B8 A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 120pk, 88kw - CABA, CDHA A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 160pk, 118kw - CABB, CDHB A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 160pk, 118kw - CDHB A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 170pk, 125kw - CJEB A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 120pk, 88kw - CAGC, CJCC A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 177pk, 130kw - CGLC, CMGB A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 150pk, 110kw - CJCD, CSUA A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CAEA, CFKA A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI flexible fuel - 1984ccm, 180pk, 132kw - CFKA A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI flexible fuel quattro - 1984ccm, 180pk, 132kw - CFKA A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC, CPMA A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A4 B8 (8K2) | 11.2007-12.2015 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA A4 B8 (8K2) | 11.2007-12.2015 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI - 2967ccm, 204pk, 150kw - CLAB A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA, CCLA A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVB, CKVC A4 B8 (8K2) | 11.2007-12.2015 3.0 TFSI quattro - 2995ccm, 272pk, 200kw - CMUA, CRED A4 B8 (8K2) | 11.2007-12.2015 3.2 FSI - 3197ccm, 265pk, 195kw - CALA A4 B8 (8K2) | 11.2007-12.2015 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 160pk, 118kw - CABB, CDHB A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 120pk, 88kw - CDHA A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 160pk, 118kw - CDHB A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 170pk, 125kw - CJEB A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 120pk, 88kw - CAGC, CJCC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 177pk, 130kw - CGLC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 150pk, 110kw - CJCD, CSUA, CMFB A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 190pk, 140kw - CNHA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 150pk, 110kw - CJCD, CSUA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CFKA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 224pk, 165kw - CNCD A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI flexible fuel - 1984ccm, 180pk, 132kw - CFKA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI flexible fuel quattro - 1984ccm, 180pk, 132kw - CFKA A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A4 B8 Avant (8K5) | 11.2007-12.2015 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA A4 B8 Avant (8K5) | 11.2007-12.2015 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI - 2967ccm, 204pk, 150kw - CLAB A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA, CCLA A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVB, CKVC A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TFSI quattro - 2995ccm, 272pk, 200kw - CMUA, CRED A4 B8 Avant (8K5) | 11.2007-12.2015 3.2 FSI - 3197ccm, 265pk, 195kw - CALA A4 B8 Avant (8K5) | 11.2007-12.2015 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA A4 B8 Avant (8K5) | 11.2007-12.2015 S4 quattro - 2995ccm, 333pk, 245kw - CGXC, CREC, CTUB, CAKA, CGWC, CCBA A4 B9 A4 B9 (8W2, 8WC) | 05.2015-11.2019 1.4 TFSI - 1395ccm, 150pk, 110kw - CVNA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI - 1968ccm, 150pk, 110kw - CZHA, DEUA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI - 1968ccm, 190pk, 140kw - DESA, DETA, DFVA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI - 1968ccm, 136pk, 100kw - DEUB A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI - 1968ccm, 122pk, 90kw - DEUC A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI quattro - 1968ccm, 190pk, 140kw - DESA, DETA, DFVA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI quattro - 1968ccm, 163pk, 120kw - DETB A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TDI quattro - 1968ccm, 150pk, 110kw - DEUA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TFSI - 1984ccm, 190pk, 140kw - CVKB, DBPA A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TFSI - 1984ccm, 252pk, 185kw - CYRB, CYMC A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TFSI - 1984ccm, 249pk, 183kw - CYRC A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TFSI quattro - 1984ccm, 252pk, 185kw - CYRB, CYMC A4 B9 (8W2, 8WC) | 05.2015-11.2019 2.0 TFSI quattro - 1984ccm, 249pk, 183kw - CYRC A4 B9 (8W2, 8WC) | 05.2015-11.2019 3.0 TDI - 2967ccm, 218pk, 160kw - CSWB A4 B9 (8W2, 8WC) | 05.2015-11.2019 3.0 TDI quattro - 2967ccm, 272pk, 200kw - CRTC A4 B9 (8W2, 8WC) | 05.2015-11.2019 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CSWB A4 B9 (8W2, 8WC) | 05.2015-11.2019 S4 quattro - 2995ccm, 354pk, 260kw - CWGD A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 1.4 TFSI - 1395ccm, 150pk, 110kw - CVNA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI - 1968ccm, 150pk, 110kw - CZHA, DEUA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI - 1968ccm, 190pk, 140kw - DESA, DETA, DFVA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI - 1968ccm, 136pk, 100kw - DEUB A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI - 1968ccm, 122pk, 90kw - DEUC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI quattro - 1968ccm, 190pk, 140kw - DESA, DETA, DFVA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI quattro - 1968ccm, 163pk, 120kw - DETB A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TDI quattro - 1968ccm, 150pk, 110kw - DEUA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI - 1984ccm, 190pk, 140kw - CVKB, DBPA, DKYA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI - 1984ccm, 252pk, 185kw - CYRB, CYMC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI - 1984ccm, 249pk, 183kw - CYRC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI g-tron - 1984ccm, 170pk, 125kw - CVLA A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI quattro - 1984ccm, 252pk, 185kw - CYRB, CYMC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 2.0 TFSI quattro - 1984ccm, 249pk, 183kw - CYRC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 3.0 TDI - 2967ccm, 218pk, 160kw - CSWB A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 3.0 TDI quattro - 2967ccm, 272pk, 200kw - CRTC A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CSWB A4 B9 Avant (8W5, 8WD) | 08.2015-09.2020 S4 quattro - 2995ccm, 354pk, 260kw - CWGD A5 A5 (8T3) | 06.2007-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB A5 (8T3) | 06.2007-01.2017 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB, CABD A5 (8T3) | 06.2007-01.2017 1.8 TFSI - 1798ccm, 177pk, 130kw - CJEE A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 177pk, 130kw - CGLC A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 190pk, 140kw - CNHA A5 (8T3) | 06.2007-01.2017 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA A5 (8T3) | 06.2007-01.2017 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A5 (8T3) | 06.2007-01.2017 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CDNC A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 224pk, 165kw - CNCD A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 230pk, 169kw - CNCE A5 (8T3) | 06.2007-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC, CPMA A5 (8T3) | 06.2007-01.2017 2.0 TFSI quattro - 1984ccm, 220pk, 162kw - CAED, CPMB A5 (8T3) | 06.2007-01.2017 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A5 (8T3) | 06.2007-01.2017 2.0 TFSI quattro - 1984ccm, 230pk, 169kw - CNCE A5 (8T3) | 06.2007-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA A5 (8T3) | 06.2007-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB A5 (8T3) | 06.2007-01.2017 3.0 TDI - 2967ccm, 204pk, 150kw - CLAB A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVB, CKVC A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CKVD A5 (8T3) | 06.2007-01.2017 3.0 TFSI quattro - 2995ccm, 272pk, 200kw - CMUA, CRED, CHMB A5 (8T3) | 06.2007-01.2017 3.2 FSI - 3197ccm, 265pk, 195kw - CALA A5 (8T3) | 06.2007-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA A5 (8T3) | 06.2007-01.2017 S5 quattro - 4163ccm, 354pk, 260kw - CAUA A5 (8T3) | 06.2007-01.2017 S5 quattro - 2995ccm, 333pk, 245kw - CGXC, CREC, CTDA, CTUB, CAKA, CGWC A5 (F53, F5P) | 06.2016-08.2020 2.0 TDI - 1968ccm, 190pk, 140kw - DESA, DETA A5 (F53, F5P) | 06.2016-08.2020 2.0 TDI quattro - 1968ccm, 190pk, 140kw - DESA, DETA A5 (F53, F5P) | 06.2016-08.2020 2.0 TFSI - 1984ccm, 190pk, 140kw - CVKB, DKYA A5 (F53, F5P) | 06.2016-08.2020 2.0 TFSI quattro - 1984ccm, 252pk, 185kw - CYRB, CYMC, DLHB A5 (F53, F5P) | 06.2016-08.2020 2.0 TFSI quattro - 1984ccm, 249pk, 183kw - CYRC A5 (F53, F5P) | 06.2016-08.2020 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CSWB A5 (F53, F5P) | 06.2016-08.2020 S5 quattro - 2995ccm, 354pk, 260kw - CWGD A5 Convertible A5 Convertible (8F7) | 03.2009-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB A5 Convertible (8F7) | 03.2009-01.2017 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB A5 Convertible (8F7) | 03.2009-01.2017 1.8 TFSI - 1798ccm, 177pk, 130kw - CJEE A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 177pk, 130kw - CGLC A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 150pk, 110kw - CJCD, CSUA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI - 1968ccm, 190pk, 140kw - CNHA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A5 Convertible (8F7) | 03.2009-01.2017 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI - 1984ccm, 220pk, 162kw - CAED A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CAEA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI - 1984ccm, 224pk, 165kw - CNCD A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI - 1984ccm, 230pk, 169kw - CNCE A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC, CPMA A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A5 Convertible (8F7) | 03.2009-01.2017 2.0 TFSI quattro - 1984ccm, 230pk, 169kw - CNCE A5 Convertible (8F7) | 03.2009-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CGKA A5 Convertible (8F7) | 03.2009-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CGKB A5 Convertible (8F7) | 03.2009-01.2017 3.0 TDI - 2967ccm, 204pk, 150kw - CLAB A5 Convertible (8F7) | 03.2009-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA A5 Convertible (8F7) | 03.2009-01.2017 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVC A5 Convertible (8F7) | 03.2009-01.2017 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CKVD A5 Convertible (8F7) | 03.2009-01.2017 3.0 TFSI quattro - 2995ccm, 272pk, 200kw - CMUA, CRED A5 Convertible (8F7) | 03.2009-01.2017 3.2 FSI - 3197ccm, 265pk, 195kw - CALA A5 Convertible (8F7) | 03.2009-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA A5 Convertible (8F7) | 03.2009-01.2017 S5 quattro - 2995ccm, 333pk, 245kw - CGXC, CREC, CTDA, CTUB, CAKA, CGWC, CCBA A5 Sportback A5 Sportback (8TA) | 09.2009-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB A5 Sportback (8TA) | 09.2009-01.2017 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB A5 Sportback (8TA) | 09.2009-01.2017 1.8 TFSI - 1798ccm, 144pk, 106kw - CJED A5 Sportback (8TA) | 09.2009-01.2017 1.8 TFSI - 1798ccm, 177pk, 130kw - CJEE A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 177pk, 130kw - CGLC A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 150pk, 110kw - CJCD, CSUA, CMFB A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 190pk, 140kw - CNHA A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI quattro - 1968ccm, 177pk, 130kw - CGLC A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI quattro - 1968ccm, 190pk, 140kw - CNHA A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CDNC A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 224pk, 165kw - CNCD A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 230pk, 169kw - CNCE A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI quattro - 1984ccm, 224pk, 165kw - CNCD A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI quattro - 1984ccm, 230pk, 169kw - CNCE A5 Sportback (8TA) | 09.2009-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA A5 Sportback (8TA) | 09.2009-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CGKB A5 Sportback (8TA) | 09.2009-01.2017 3.0 TDI - 2967ccm, 204pk, 150kw - CLAB A5 Sportback (8TA) | 09.2009-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA A5 Sportback (8TA) | 09.2009-01.2017 3.0 TDI quattro - 2967ccm, 245pk, 180kw - CDUC, CKVB, CKVC A5 Sportback (8TA) | 09.2009-01.2017 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CKVD A5 Sportback (8TA) | 09.2009-01.2017 3.0 TFSI quattro - 2995ccm, 272pk, 200kw - CMUA, CRED, CHMB A5 Sportback (8TA) | 09.2009-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA A5 Sportback (8TA) | 09.2009-01.2017 S5 quattro - 2995ccm, 333pk, 245kw - CREC, CTDA, CAKA, CGWC A5 Sportback (F5A, F5F) | 08.2016-02.2020 2.0 TDI - 1968ccm, 190pk, 140kw - DESA, DETA A5 Sportback (F5A, F5F) | 08.2016-02.2020 2.0 TDI quattro - 1968ccm, 190pk, 140kw - DESA, DETA A5 Sportback (F5A, F5F) | 08.2016-02.2020 2.0 TFSI - 1984ccm, 252pk, 185kw - CYRB A5 Sportback (F5A, F5F) | 08.2016-02.2020 2.0 TFSI quattro - 1984ccm, 252pk, 185kw - CYRB, CYMC, DLHB A5 Sportback (F5A, F5F) | 08.2016-02.2020 2.0 TFSI quattro - 1984ccm, 249pk, 183kw - CYRC A5 Sportback (F5A, F5F) | 08.2016-02.2020 3.0 TDI quattro - 2967ccm, 218pk, 160kw - CSWB A5 Sportback (F5A, F5F) | 08.2016-02.2020 S5 quattro - 2995ccm, 354pk, 260kw - CWGD -
Original part numbers
8K0 615 301 VAG 8W0 615 301 G VAG 8W0 615 301 T VAG L8K0 615 301 VAG L8WD 615 301 VAG L8K0 615 301 AUDI (FAW) L8WD 615 301 AUDI (FAW) -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
