Brake Disc SPORT BRAKE DISC COAT Z 285.3518.52 Zimmermann
Product number: 0846732
Manufacturer number: 285.3518.52
EAN: 4250238758891
-
Free 30 days exchanges
-
Any part, any car
-
Fast Next day delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

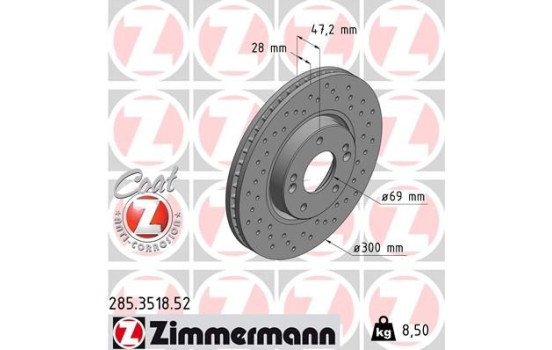

Outer diameter [mm] 300 Rim Hole Number 5 Brake Disc Type Perforated Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 114 Centering Diameter [mm] 69 Hole Arrangement / Number 7/5 Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 47 Brake disc thickness (mm) 28 Minimum thickness (mm) 26,4 Weight [kg] 8,5 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17676 ACKOJAP A52-2511 AP 25230 V AP 25230 AP 25230 X AP 25231 AP 25231 V ASHIKA 60-0H-H23C ASHUKI Y089-25 BELACO BDS1064HC BLUE PRINT ADG043107 BLUE PRINT ADG043136 BORG & BECK BBD4523 BORG & BECK BBD4702 BRECO BS 8841 BRECO BS 8840 BRECO BV 8841 BRECO BV 8840 BREMBO 09.A807.11 BREMBO 09.A532.10 BREMBO 09.A532.11 BREMBO 09.A532.1X BREMBO 09.A807.10 DENCKERMANN B130638 DJ PARTS BD2701 DON PCD10422 Dr!ve+ DP1010.11.0460 EUROBRAKE 5815313422 EUROBRAKE 5815203422 FEBI BILSTEIN 31317 FI.BA FBD250 FREMAX BD-0586 FTE 9071031 FTE BS7315 GIRLING 6061085 HELLA 8DD 355 114-511 HELLA 8DD 355 128-831 HELLA PAGID 8DD 355 114-511 HELLA PAGID 8DD 355 128-831 Manufacturer Manufacturer number Price JAPANPARTS DI-H23C JAPKO 60H23C JURATEK HYU134 KAISHIN CBR441 KEY PARTS KBD4702 MAGNETI MARELLI 361302040546 MAPCO 25249C MAPCO 25249 MASTER-SPORT 24012802561-SET-MSP MASTER-SPORT 24012802561-PCS-MSP MASTER-SPORT 24012802561-PCS-MS MASTER-SPORT 24012802561-SET-MS MAXGEAR 19-1863 MAXGEAR 19-1863MAX MAXGEAR 19-1863SPORT MAXTECH 865271 METZGER 6110155 MEYLE 37-15 521 0030 MEYLE 37-15 521 0030/PD MINTEX MDC2043 NIPPARTS N3300533 NIPPARTS N3300533P NK 203422 NK 313422 NPS H330I26 OPTIMAL BS-8564 OPTIMAL BS-8564HC Omnicraft 2134111 QUARO QD7527 QUARO QD7527HC SWAG 90 93 1317 TEXTAR 92166505 TEXTAR 92166503 TEXTAR 92166500 TRW DF6108S VALEO 197533 ZIMMERMANN 285.3518.20 ZIMMERMANN 285.3518.53 ZIMMERMANN 285.3518.52 (this product) -
Applicability
HYUNDAI i40 I i40 I (VF) | 03.2012-05.2019 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD i40 I (VF) | 03.2012-05.2019 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD i40 I (VF) | 03.2012-05.2019 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD i40 I (VF) | 03.2012-05.2019 1.7 CRDI - 1685ccm, 141pk, 104kw - D4FD i40 I (VF) | 03.2012-05.2019 2.0 GDi - 1999ccm, 165pk, 121kw - G4NC i40 I (VF) | 03.2012-05.2019 2.0 GDI - 1999ccm, 178pk, 131kw - G4NC i40 I CW (VF) | 07.2011-05.2019 1.6 CRDi - 1598ccm, 116pk, 85kw - D4FE i40 I CW (VF) | 07.2011-05.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE i40 I CW (VF) | 07.2011-05.2019 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD i40 I CW (VF) | 07.2011-05.2019 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD i40 I CW (VF) | 07.2011-05.2019 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD i40 I CW (VF) | 07.2011-05.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD i40 I CW (VF) | 07.2011-05.2019 2.0 CVVT - 1999ccm, 177pk, 130kw - G4NA i40 I CW (VF) | 07.2011-05.2019 2.0 GDi - 1999ccm, 165pk, 121kw - G4NC i40 I CW (VF) | 07.2011-05.2019 2.0 GDI - 1999ccm, 177pk, 130kw - G4NC ix35 ix35 (LM, EL, ELH) | 01.2010-12.2015 1.6 - 1591ccm, 135pk, 99kw - G4FD ix35 (LM, EL, ELH) | 01.2010-12.2015 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 - 1998ccm, 163pk, 120kw - G4KD ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 4WD - 1998ccm, 163pk, 120kw - G4KD ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 CRDi - 1995ccm, 136pk, 100kw - D4HA ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 CRDi - 1995ccm, 184pk, 135kw - D4HA ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 CRDi 4WD - 1995ccm, 136pk, 100kw - D4HA ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 CRDi 4WD - 1995ccm, 184pk, 135kw - D4HA ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 GDi - 1999ccm, 166pk, 122kw - G4NC ix35 (LM, EL, ELH) | 01.2010-12.2015 2.0 GDi 4WD - 1999ccm, 166pk, 122kw - G4NC SONATA V SONATA V (NF) | 01.2005-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA SONATA V (NF) | 01.2005-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA SONATA V (NF) | 01.2005-12.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA SONATA V (NF) | 01.2005-12.2010 2.0 VVTi GLS - 1998ccm, 165pk, 121kw - G4KD SONATA V (NF) | 01.2005-12.2010 2.4 - 2359ccm, 162pk, 119kw - G4KC TUCSON TUCSON (JM) | 06.2004-01.2012 2.0 - 1975ccm, 141pk, 104kw - G4GC TUCSON (JM) | 06.2004-01.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC TUCSON (JM) | 06.2004-01.2012 2.0 All-wheel Drive - 1975ccm, 141pk, 104kw - G4GC TUCSON (JM) | 06.2004-01.2012 2.0 CRDi - 1991ccm, 113pk, 83kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi - 1991ccm, 120pk, 88kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 113pk, 83kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 120pk, 88kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 136pk, 100kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 140pk, 103kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 150pk, 110kw - D4EA TUCSON (JM) | 06.2004-01.2012 2.7 All-wheel Drive - 2656ccm, 175pk, 129kw - G6BA KIA CARENS IV CARENS IV | 03.2013-08.2016 1.6 GDi - 1591ccm, 135pk, 99kw - G4FD CARENS IV | 03.2013-08.2016 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD CARENS IV | 03.2013-08.2016 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD CARENS IV | 03.2013-08.2016 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD CARENS IV | 03.2013-08.2016 2.0 GDi - 1999ccm, 166pk, 122kw - G4NC CARENS IV | 03.2013-08.2016 2.0 GDi - 1999ccm, 177pk, 130kw - G4NC OPTIMA OPTIMA (FSGDS6B) | 03.2012-12.2015 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD OPTIMA (FSGDS6B) | 03.2012-12.2015 2.0 - 1998ccm, 170pk, 125kw - G4KD OPTIMA (FSGDS6B) | 03.2012-12.2015 2.0 CVVT Hybrid - 1999ccm, 190pk, 140kw - G4NE OPTIMA (JF) | 09.2015-12.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE OPTIMA (JF) | 09.2015-12.2019 1.6 T-GDI - 1591ccm, 179pk, 132kw - G4FJ OPTIMA (JF) | 09.2015-12.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD OPTIMA (JF) | 09.2015-12.2019 2.0 CVVL - 1999ccm, 163pk, 120kw - G4ND OPTIMA (JF) | 09.2015-12.2019 2.0 T-GDi - 1998ccm, 245pk, 180kw - G4KH OPTIMA Sportswagon OPTIMA Sportswagon (JF) | 09.2016-12.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE OPTIMA Sportswagon (JF) | 09.2016-12.2019 1.6 T-GDI - 1591ccm, 179pk, 132kw - G4FJ OPTIMA Sportswagon (JF) | 09.2016-12.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD OPTIMA Sportswagon (JF) | 09.2016-12.2019 2.0 CVVL - 1999ccm, 163pk, 120kw - G4ND SPORTAGE II SPORTAGE II (JE_, KM_) | 09.2004-12.2010 2.0 i 16V - 1975ccm, 141pk, 104kw - G4GC SPORTAGE III SPORTAGE III (SL) | 06.2010-12.2016 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD SPORTAGE III (SL) | 06.2010-12.2016 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD SPORTAGE III (SL) | 06.2010-12.2016 2.0 CRDi - 1995ccm, 136pk, 100kw - D4HA SPORTAGE III (SL) | 06.2010-12.2016 2.0 CRDi - 1995ccm, 184pk, 135kw - D4HA SPORTAGE III (SL) | 06.2010-12.2016 2.0 CRDi AWD - 1995ccm, 136pk, 100kw - D4HA SPORTAGE III (SL) | 06.2010-12.2016 2.0 CRDi AWD - 1995ccm, 184pk, 135kw - D4HA SPORTAGE III (SL) | 06.2010-12.2016 2.0 CVVT - 1998ccm, 163pk, 120kw - G4KD SPORTAGE III (SL) | 06.2010-12.2016 2.0 CVVT - 1998ccm, 166pk, 122kw - G4KD SPORTAGE III (SL) | 06.2010-12.2016 2.0 CVVT AWD - 1998ccm, 163pk, 120kw - G4KD SPORTAGE III (SL) | 06.2010-12.2016 2.0 CVVT AWD - 1998ccm, 166pk, 122kw - G4KD SPORTAGE III (SL) | 06.2010-12.2016 2.0 GDI - 1998ccm, 166pk, 122kw - G4NC SPORTAGE III (SL) | 06.2010-12.2016 2.0 GDI AWD - 1998ccm, 166pk, 122kw - G4NC -
Original part numbers
51712-3K110 HYUNDAI 51712-3K150 HYUNDAI 51712-3K160 HYUNDAI 51712-0Z000 KIA 51712-2Y000 KIA 51712-M0500 HYUNDAI 51712-3K110 KIA 51712-3K160 KIA 51712-3K110 KIA (DYK) 51712-3K160 KIA (DYK) 51712-A0000 KIA (DYK) 51712-3K160 HYUNDAI (BEIJING) 51712-3K110 HYUNDAI (BEIJING) -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
