Wheel Brake Cylinder
No specifications available yet
Product number: 0846861
Manufacturer number: 430.1466.52
EAN: 4250238752776
or .
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
Key benefits:
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

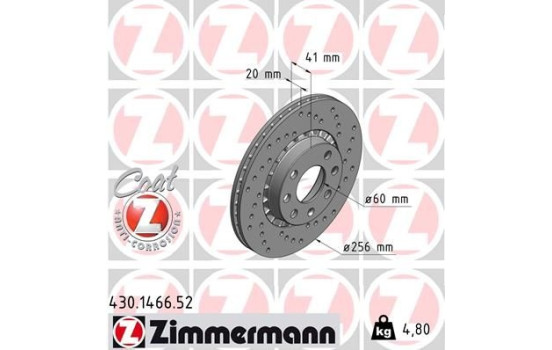

Outer diameter [mm] | 256 |
Rim Hole Number | 4 |
Brake Disc Type | Perforated |
Surface | Coated |
Brake pads | Exclusive |
Bolt Hole Circle Ø [mm] | 100 |
Brake Disc Type | Ventilated outside |
Centering Diameter [mm] | 60 |
Hole Arrangement / Number | 7/4 |
Inspection Tag | ECE R90 APPROVED |
Guarantee | 2 years |
Height [mm] | 41 |
Brake disc thickness (mm) | 20 |
Minimum thickness (mm) | 17 |
Weight [kg] | 4,82 |
Manufacturer | Manufacturer number | Price |
---|---|---|
A.B.S. | 16093 | |
AP | 24730 E | |
ASHIKA | 60-00-0401C | |
ASHIKA | 60-00-0401 | |
BELACO | BDS1957 | |
BLUE PRINT | ADW194337 | |
BOSCH | 0 986 478 535 | |
BRECO | BS 8341 | |
BREMBO | 09.5527.24 | |
BREMSI | CD6328V | |
BSG | BSG 65-210-002 | |
CHAMPION | 561588CH | |
DENCKERMANN | B130066 | |
DON | PCD14952 | |
EUROBRAKE | 5815203617 | |
EUROBRAKE | 5815313617 | |
FEBI BILSTEIN | 05185 | |
FERODO | DDF328 | |
FERODO | DDF328C | |
GIRLING | 6016241 | |
HELLA | 8DD 355 127-071 | |
HELLA PAGID | 8DD 355 127-071 | |
JAPANPARTS | DI-0401C | |
JAPANPARTS | DI-0401 | |
JAPKO | 600401C | |
JAPKO | 600401 | |
JURID | 561588JC | |
JURID | 561588J | |
KLAXCAR FRANCE | 25456z | |
KRAFT AUTOMOTIVE | 6041590 |
Manufacturer | Manufacturer number | Price |
---|---|---|
MAPCO | 15750C | |
MAPCO | 15750 | |
MASTER-SPORT | 24012001401-SET-MSP | |
MASTER-SPORT | 24012001401-SET-MS | |
MASTER-SPORT | 24012001401-PCS-MS | |
MASTER-SPORT | 24012001401-PCS-MSP | |
MAXGEAR | 19-0741 | |
MAXGEAR | 19-0741SPORT | |
MAXTECH | 871505 | |
METZGER | 6110336 | |
MEYLE | 615 521 6005 | |
MINTEX | MDC693 | |
NK | 313617 | |
NK | 203617 | |
OPTIMAL | BS-1740C | |
QUARO | QD2777 | |
RAICAM | RD00579 | |
ROTINGER | RT 2033-GL T5 | |
ROTINGER | RT 2033-GL | |
ROTINGER | RT 2033 | |
ROTINGER | RT 2033-GL T9 | |
ROTINGER | RT 2033-GL T3 | |
ROTINGER | RT 2033-GL T6 | |
SWAG | 40 90 5185 | |
TEXTAR | 92056500 | |
TEXTAR | 92056503 | |
TRW | DF1624 | |
VALEO | 186282 | |
ZIMMERMANN | 430.1466.20 | |
ZIMMERMANN | 430.1466.52 | (this product) |
OPEL |
|
|||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VAUXHALL |
|
569 010 | OPEL |
---|---|
569 046 | OPEL |
569 055 | OPEL |
93182285 | GENERAL MOTORS |
90421727 | GENERAL MOTORS |
90511128 | GENERAL MOTORS |
