Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 470.2438.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 470.2438.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 470.2438.52 Zimmermann, Image 2

Product number: 0846945

Manufacturer number: 470.2438.52

EAN: 4250238758556

€ 92,05

Incl. VAT
View product specifications
In stock
Delivery 28-05-2024
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast Next day delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

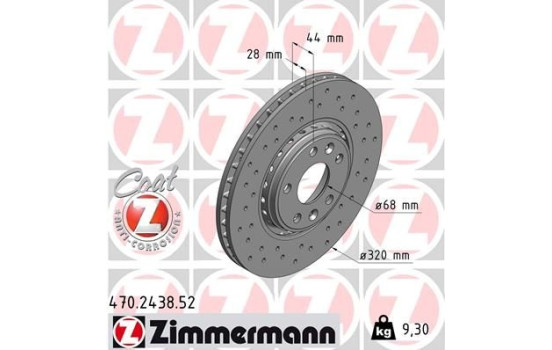

    Outer diameter [mm]320
    Rim Hole Number5
    Brake Disc TypePerforated
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]114
    Brake Disc TypeVentilated outside
    Centering Diameter [mm]68
    Hole Arrangement / Number7/5
    MachiningHigh-carbon
    Inspection TagKBA 60872
    Guarantee2 years
    Height [mm]44
    Brake disc thickness (mm)28
    Minimum thickness (mm)25,4
    Weight [kg]9,3

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17978
    € 52,96
    AP 25272
    AP 25272 X
    AP 25272 V
    ASAM 102624
    ASHIKA 60-00-0702
    ASHIKA 60-00-0702C
    BELACO BDS1186
    BLUE PRINT ADR164308
    € 52,84
    BORG & BECK BBD4781
    BRECO BV 8882
    BRECO BS 8882
    BREMBO 09.B352.10
    BREMBO 09.B352.1X
    € 136,94
    BREMBO 09.B352.11
    € 64,95
    BREMSI CD7727V
    CHAMPION 562596CH
    DENCKERMANN B130596
    DJ PARTS BD2860
    DON PCD14132
    Dr!ve+ DP1010.11.1522
    EUROBRAKE 5815203969
    EUROBRAKE 5815313969
    FEBI BILSTEIN 43949
    € 49,68
    FERODO DDF1727
    FERODO DDF1727C
    € 82,96
    GIRLING 6062085
    HELLA 8DD 355 129-111
    HELLA PAGID 8DD 355 129-111
    € 58,80
    JAPANPARTS DI-0702
    JAPANPARTS DI-0702C
    JAPKO 600702
    JAPKO 600702C
    JURATEK REN187
    JURID 562596JC-1
    Manufacturer Manufacturer number Price
    JURID 562596JC
    MAGNETI MARELLI 361302040757
    MAXGEAR 19-2363SPORT
    MAXGEAR 19-2363
    € 52,26
    MAXTECH 875367
    METZGER 6110002
    MEYLE 16-15 521 0043/PD
    € 70,00
    MINTEX MDC2194
    NK 203969
    NK 313969
    OPTIMAL BS-8302
    OPTIMAL BS-8302HC
    QUARO QD7441
    QUARO QD7441HC
    RAICAM RD00703
    ROTINGER RT 4503-GL T6
    ROTINGER RT 4503HP-GL T5
    ROTINGER RT 4503HP-GL
    ROTINGER RT 4503
    ROTINGER RT 4503HP-GL T9
    ROTINGER RT 4503HP
    ROTINGER RT 4503-GL
    ROTINGER RT 4503HP-GL T3
    ROTINGER RT 4503HP-GL T6
    ROTINGER RT 4503-GL T5
    ROTINGER RT 4503-GL T3
    ROTINGER RT 4503-GL T9
    SWAG 60 94 3949
    TEXTAR 92195403
    € 86,52
    TOPRAN 631 151
    TRW DF6208S
    € 55,54
    VALEO 197486
    ZIMMERMANN 470.2438.20
    € 64,80
    ZIMMERMANN 470.2438.52 (this product)

  • Applicability

    RENAULT
    CLIO IV
    CLIO IV (BH_) | 11.2012-08.2021 1.6 RS (BHJ4, BHJ6, BHMM) - 1618ccm, 200pk, 147kw - M5M 400, M5M 450, M5M 401
    ESPACE V
    ESPACE V (JR_) | 02.2015-03.2023 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
    ESPACE V (JR_) | 02.2015-03.2023 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
    ESPACE V (JR_) | 02.2015-03.2023 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450
    ESPACE V (JR_) | 02.2015-03.2023 2.0 Blue dCi 160 (JRAM) - 1997ccm, 160pk, 118kw - M9R 650
    ESPACE V (JR_) | 02.2015-03.2023 2.0 Blue dCi 200 (JRAL) - 1997ccm, 200pk, 147kw - M9R 650
    GRAND SCÉNIC
    GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 2.0 dCi (JZ0L) - 1995ccm, 160pk, 118kw - M9R 610
    GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 2.0 dCi (JZ0Y, JZ26) - 1995ccm, 150pk, 110kw - M9R 615
    GRAND SCÉNIC IV (R9_) | 09.2016-03.2023 1.2 TCe 115 - 1198ccm, 115pk, 85kw - H5F 408
    GRAND SCÉNIC IV (R9_) | 09.2016-03.2023 1.2 TCe 130 - 1198ccm, 130pk, 96kw - H5F 408
    GRAND SCÉNIC IV (R9_) | 09.2016-03.2023 1.5 dCi 110 (R9A3) - 1461ccm, 110pk, 81kw - K9K 646, K9K 647, K9K 649
    GRAND SCÉNIC IV (R9_) | 09.2016-03.2023 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
    GRAND SCÉNIC IV (R9_) | 09.2016-03.2023 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
    LAGUNA Coupe
    LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811, F4Rt 811
    LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 dCi GT (DT11, DT1E, DT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
    LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
    LAGUNA Coupe (DT0/1) | 09.2008-12.2015 3.0 dCi - 2998ccm, 241pk, 177kw - V9X 891
    LAGUNA Coupe (DT0/1) | 09.2008-12.2015 3.5 V6 (DT0P) - 3498ccm, 238pk, 175kw - V4Y 713
    LAGUNA III
    LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811
    LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 dCi GT (BT11, BT1E, BT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
    LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
    LAGUNA III (BT0/1) | 10.2007-12.2015 3.0 dCi (BT03, BT13) - 2998ccm, 235pk, 173kw - V9X 891, V9X 791
    LAGUNA III (BT0/1) | 10.2007-12.2015 3.5 V6 (BT0C, BT0P) - 3498ccm, 238pk, 175kw - V4Y 713
    LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 dCi GT (KT11, KT1E, KT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
    LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
    LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 3.0 dCi (KT03, KT13) - 2998ccm, 235pk, 173kw - V9X 891, V9X 791
    LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 3.5 V6 (KT0C, KT0P) - 3498ccm, 238pk, 175kw - V4Y 713
    MEGANE IV
    MEGANE IV Grand Coupe | 10.2016-??? 1.3 TCe 115 (LVN9) - 1332ccm, 116pk, 85kw - H5H 450, H5H 470
    MEGANE IV Grand Coupe | 10.2016-??? 1.3 TCe 140 (LVNB) - 1332ccm, 140pk, 103kw - H5H 450, H5H 470, H5H 490
    MEGANE IV Grand Coupe | 10.2016-??? 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
    MEGANE IV Grandtour (K9A/M/N_) | 04.2016-??? 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
    MEGANE IV Grandtour (K9A/M/N_) | 04.2016-??? 1.6 dCi 165 - 1598ccm, 163pk, 120kw - R9M 452
    MEGANE IV Grandtour (K9A/M/N_) | 04.2016-??? 1.6 TCe 205 - 1618ccm, 205pk, 151kw - M5M 450
    MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.6 dCi 130 (B9A4) - 1598ccm, 130pk, 96kw - R9M 409
    MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.6 dCi 165 - 1598ccm, 163pk, 120kw - R9M 452
    MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.6 TCe 205 (B9MV) - 1618ccm, 205pk, 151kw - M5M 450
    MEGANE IV Hatchback (B9A/M/N_) | 11.2015-??? 1.8 Blue dCi 150 (B9A7) - 1749ccm, 150pk, 110kw - R9N 401
    SCÉNIC IV
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.2 TCe 115 - 1198ccm, 115pk, 85kw - H5F 408
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.2 TCe 130 - 1197ccm, 130pk, 96kw - H5F 408
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.5 dCi 110 - 1461ccm, 110pk, 81kw - K9K 646, K9K 647
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.5 dCi 95 - 1461ccm, 95pk, 70kw - K9K 846, K9K 646
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
    SCÉNIC IV (J9_) | 09.2016-07.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
    TALISMAN
    TALISMAN (LP_) | 06.2015-03.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452, R9M 453
    TALISMAN (LP_) | 06.2015-03.2022 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450
    TALISMAN Grandtour
    TALISMAN Grandtour (KP_) | 03.2016-03.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452, R9M 453
    TALISMAN Grandtour (KP_) | 03.2016-03.2022 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450

  • Original part numbers

    4020 600 03R RENAULT
    4020 641 55R RENAULT
    8660001234 RENAULT
    4020 617 92R RENAULT
    4020 600 29R RENAULT

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
