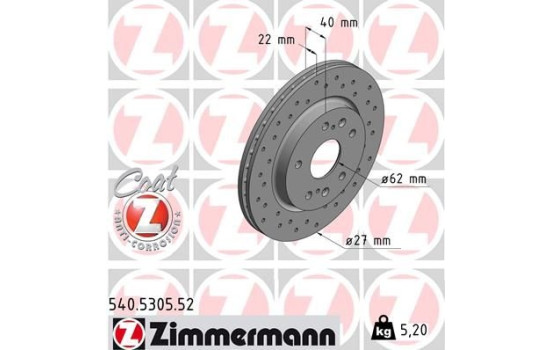

Brake Disc SPORT BRAKE DISC COAT Z 540.5305.52 Zimmermann
Product number: 0846965
Manufacturer number: 540.5305.52
EAN: 4250238776727
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Upgrade your braking system with Zimmerman Sport Z brake rotors.
These brake discs feature perforated ventilation holes. This design ensures better water and dirt drainage and prevents brake fade. These brake discs are also ideal for colder and wet conditions.
Grooved design:
- Perforated for better gas drainage
- Rust-resistant coating
Key benefits:
- German quality
- Less brake fading
- Better braking performance
- Perfect fit
Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.
Outer diameter [mm] 272 Fitting Position Front Axle Rim Hole Number 5 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 114 Brake Disc Type Perforated Centering Diameter [mm] 62 Hole Arrangement / Number 9/5 Inspection Tag KBA 60872 Warranty 2 years Height [mm] 40 Brake disc thickness (mm) 22 Minimum thickness (mm) 20 Weight [kg] 5,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18326 ACKOJAP A64-40005 AP 20209 V ASHUKI K016-68 BELACO BDS1458 BLUE PRINT ADK84344 BRECO BV 9485 BREMBO 09.D252.21 DELPHI BG4816C DON PCD17202 EUROBRAKE 5815315241 FEBI BILSTEIN 108469 FERODO DDF2687C HERTH+BUSS JAKOPARTS J3308038 JURID 563272JC MAXGEAR 19-3508 Manufacturer Manufacturer number Price MAXGEAR 19-3508SPORT MEYLE 33-15 521 0021/PD MINTEX MDC2777C NK 315241 NPS S330I53 PAGID 55894NC ROTINGER RT 21613-GL ROTINGER RT 21613-GL T5 ROTINGER RT 21613-GL T3 ROTINGER RT 21613-GL T6 ROTINGER RT 21613-GL T9 ROTINGER RT 21613 SWAG 33 10 6969 TEXTAR 92289403 ZIMMERMANN 540.5305.20 ZIMMERMANN 540.5305.52 (this product) -
Applicability
SUZUKI SWIFT III SWIFT III (FZ, NZ) | 10.2010-??? 1.2 (AZG412, ZC72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 (AZH412, AZG412, ZC72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 (AZH412, ZC72S) - 1242ccm, 94pk, 69kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4WD (AZH412, AZG412, ZD72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4x4 (AZG412, ZD72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4x4 (AZH412, ZD72S) - 1242ccm, 94pk, 69kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.3 DDiS (AZG413D, ZC02S, ZC92S) - 1248ccm, 75pk, 55kw - D13A, D13AA SWIFT III (FZ, NZ) | 10.2010-??? 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) - 1586ccm, 136pk, 100kw - M16A -
Original part numbers
5531170L00 SUZUKI 5531170L00000 SUZUKI 5531172L00 SUZUKI 55311B77M00N SUZUKI 55311M60M00 SUZUKI -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
