Brake Disc SPORT BRAKE DISC COAT Z 540.5306.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 540.5306.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 540.5306.52 Zimmermann, Image 2

Product number: 0846969

Manufacturer number: 540.5306.52

EAN: 4250238776734

€ 68,14

Incl. VAT
View product specifications
In stock
Delivery 02-05-2024
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast Next day delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

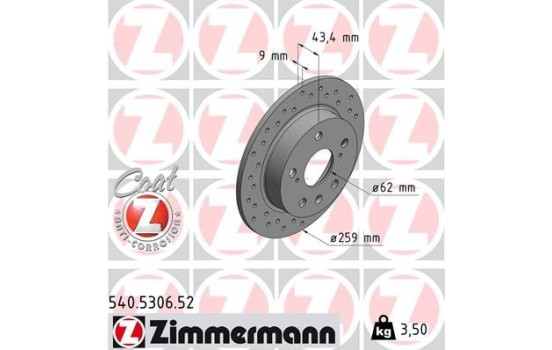

    Outer diameter [mm]259
    Fitting PositionRear Axle
    Rim Hole Number5
    Brake Disc TypePerforated
    Complete
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]114
    Centering Diameter [mm]62
    Hole Arrangement / Number8/5
    Inspection TagOhne ABE
    Guarantee2 years
    Height [mm]43
    Brake disc thickness (mm)9
    Minimum thickness (mm)8
    Weight [kg]3,5

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18399
    € 28,58
    AP 15160 V
    AP 15113 V
    ASHUKI K016-66
    BELACO BDS1801
    BLUE PRINT ADK84345
    € 32,86
    BORG & BECK BBD5401
    BRAXIS AE1037
    BRECO BV 6105
    BRECO BV 6152
    BREMBO 08.C046.11
    € 38,74
    BREMBO 08.C046.41
    € 51,37
    BREMSI CD8493S
    DELPHI BG4709C
    € 87,08
    DJ PARTS BD3010
    DON PCD21712
    Dr!ve+ DP1010.11.1686
    EUROBRAKE 5815315232
    EUROBRAKE 5815205232
    FEBI BILSTEIN 108494
    € 31,99
    FERODO DDF2493C
    € 80,03
    FREMAX BD-6097
    FTE 9072835
    Manufacturer Manufacturer number Price
    FTE BS7754
    HELLA 8DD 355 120-531
    HELLA PAGID 8DD 355 120-531
    € 29,01
    HERTH+BUSS JAKOPARTS J3318008
    JURATEK SUZ138
    JURID 563141JC
    KAMOKA 103466
    MEYLE 33-15 523 0006/PD
    € 47,00
    MINTEX MDC2612
    NK 315232
    NK 205232
    NPS S331I06
    ROTINGER RT 12057-GL T5
    ROTINGER RT 12057-GL T3
    ROTINGER RT 12057-GL T6
    ROTINGER RT 12057-GL T9
    ROTINGER RT 12057-GL
    ROTINGER RT 12057
    SWAG 33 10 7086
    TEXTAR 92268403
    € 58,72
    ZIMMERMANN 540.5306.20
    € 41,43
    ZIMMERMANN 540.5306.52 (this product)

  • Applicability

    SUZUKI
    SWIFT III
    SWIFT III (FZ, NZ) | 10.2010-??? 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) - 1586ccm, 136pk, 100kw - M16A
    SX4 S-CROSS
    SX4 S-CROSS (JY) | 08.2013-??? 1.0 (AKK 310) - 998ccm, 112pk, 82kw - K10C-T
    SX4 S-CROSS (JY) | 08.2013-??? 1.0 AllGrip (AKK 310) - 998ccm, 112pk, 82kw - K10C-T
    SX4 S-CROSS (JY) | 08.2013-??? 1.4 T (AKK 414) - 1373ccm, 140pk, 103kw - K14C
    SX4 S-CROSS (JY) | 08.2013-??? 1.4 T AllGrip (AKK 414) - 1373ccm, 140pk, 103kw - K14C
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 (AKK 416) - 1586ccm, 120pk, 88kw - M16A
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 (AKK 416, YA22S) - 1586ccm, 117pk, 86kw - M16A
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 AllGrip (AKK 416) - 1586ccm, 120pk, 88kw - M16A
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 AllGrip (AKK 416, YB22S) - 1586ccm, 117pk, 86kw - M16A
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 DDiS (AKK 416D) - 1598ccm, 120pk, 88kw - D16AA
    SX4 S-CROSS (JY) | 08.2013-??? 1.6 DDiS AllGrip (AKK 416D) - 1598ccm, 120pk, 88kw - D16AA
    VITARA
    VITARA (LY) | 02.2015-??? 1.4 T (APK 414) - 1373ccm, 140pk, 103kw - K14C
    VITARA (LY) | 02.2015-??? 1.4 T AllGrip (APK 414) - 1373ccm, 140pk, 103kw - K14C
    VITARA (LY) | 02.2015-??? 1.6 (APK 416) - 1586ccm, 120pk, 88kw - M16A
    VITARA (LY) | 02.2015-??? 1.6 (APK416, YD21S) - 1586ccm, 117pk, 86kw - M16A
    VITARA (LY) | 02.2015-??? 1.6 AllGrip (APK 416) - 1586ccm, 120pk, 88kw - M16A
    VITARA (LY) | 02.2015-??? 1.6 AllGrip (APK416, YE21S) - 1586ccm, 117pk, 86kw - M16A
    VITARA (LY) | 02.2015-??? 1.6 DDiS (APK 416D) - 1598ccm, 120pk, 88kw - D16AA
    VITARA (LY) | 02.2015-??? 1.6 DDiS AllGrip (APK416D) - 1598ccm, 120pk, 88kw - D16AA

  • Original part numbers

    55611-70L00 SUZUKI
    55611-61M00 SUZUKI
    55611-61M21-000 SUZUKI
    55611-70L00-000 SUZUKI

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
