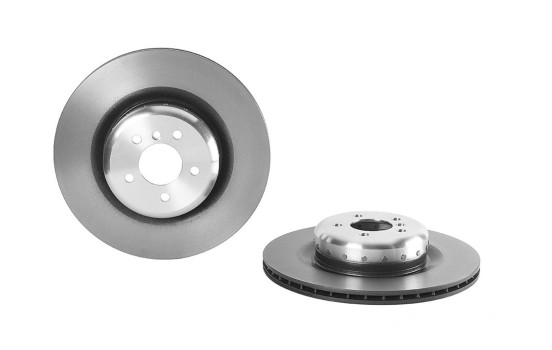

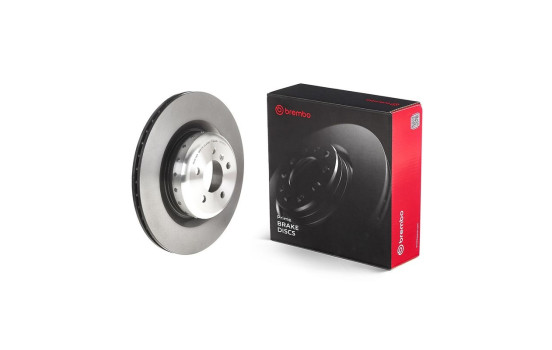

Brake Disc TWO-PIECE DISCS LINE 09.C414.13 Brembo
Product number: 0693510
Manufacturer number: 09.C414.13
EAN: 8020584224434
-
Free 30 days exchanges
-
Any part, any car
-
Fast Next day delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

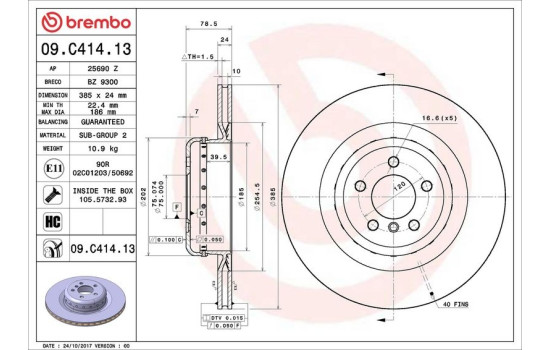

Outer diameter [mm] 385 Brake Disc Type Internal ventilation Surface Coated Number of Holes 5 Brake pads Exclusive Brake Disc Type Two-piece brake disc Centering Diameter [mm] 75 Machining High-carbon Guarantee 2 years Height [mm] 79 Additional information With screws Brake disc thickness (mm) 24 Minimum thickness (mm) 22,4 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 09.C414.13 A.B.S. 17944 ASHIKA 61-00-0140C ATE 24.0124-0219.2 BLUE PRINT ADBP430076 BORG & BECK BBD6177S BOSCH 0 986 479 E29 BREMBO 09.C414.13 (this product) BREMSI CD8624V CAR 242.1469 DELPHI BG9363BC EUROBRAKE 58153415112 EUROBRAKE 58153415123 FEBI BILSTEIN 174459 FERODO DDF2624VC-1 FTE BS7843HB FTE 9081237 HELLA 8DD 355 120-741 HELLA PAGID 8DD 355 120-741 JAPANPARTS DP-0140C JAPKO 610140C Manufacturer Manufacturer number Price JURID 563209JVC-1 LPR B2107VBR MAGNETI MARELLI 360406131804 MAXGEAR 19-3513HCSPORT MAXGEAR 19-3513HC NK 3415123 NK 3415112 OPTIMAL BS-9362HC PILENGA V723.B1 ROTINGER RT 71009HP-GL T5 ROTINGER RT 71009HP-GL T9 ROTINGER RT 71009HP-GL T3 ROTINGER RT 71009HP ROTINGER RT 71009HP-GL T6 ROTINGER RT 71009HP-GL SWAG 33 10 5213 TEXTAR 92266625 ZIMMERMANN 150.2945.52 ZIMMERMANN 150.2945.20 ZIMMERMANN 150.2945.32 -
Applicability
BMW X5 X5 (E70) | 10.2006-07.2013 M - 4395ccm, 555pk, 408kw - S63 B44 A X5 (F15, F85) | 08.2013-07.2018 M 50 d - 2993ccm, 381pk, 280kw - N57 D30 C X5 (F15, F85) | 08.2013-07.2018 sDrive 25 d - 1995ccm, 231pk, 170kw - B47 D20 B X5 (F15, F85) | 08.2013-07.2018 sDrive 25 d - 1995ccm, 218pk, 160kw - N47 D20 D X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 1995ccm, 231pk, 170kw - B47 D20 B X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 1995ccm, 218pk, 160kw - N47 D20 D X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 2993ccm, 218pk, 160kw - N57 D30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 28 i - 1997ccm, 245pk, 180kw - N20 B20 A X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 249pk, 183kw - N57 D30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 258pk, 190kw - N57 D30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 277pk, 204kw - N57 D30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 286pk, 210kw - N57 D30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 35 i - 2979ccm, 306pk, 225kw - N55 B30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 35 i - 2979ccm, 326pk, 240kw - N55 B30 A X5 (F15, F85) | 08.2013-07.2018 xDrive 40 d - 2993ccm, 313pk, 230kw - N57 D30 B X5 (F15, F85) | 08.2013-07.2018 xDrive 50 i - 4395ccm, 449pk, 330kw - N63 B44 B X6 X6 (E71, E72) | 10.2007-07.2014 M - 4395ccm, 555pk, 408kw - S63 B44 A X6 (E71, E72) | 10.2007-07.2014 xDrive 50 i - 4395ccm, 408pk, 300kw - N63 B44 A X6 (E71, E72) | 10.2007-07.2014 xDrive 50 i - 4395ccm, 449pk, 330kw - N63 B44 A X6 (F16, F86) | 08.2014-07.2019 M 50 d - 2993ccm, 381pk, 280kw - N57 D30 C X6 (F16, F86) | 08.2014-07.2019 xDrive 30 d - 2993ccm, 211pk, 155kw - N57 D30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 30 d - 2993ccm, 249pk, 183kw - N57 D30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 30 d - 2993ccm, 258pk, 190kw - N57 D30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 30 d - 2993ccm, 277pk, 204kw - N57 D30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 35 i - 2979ccm, 306pk, 225kw - N55 B30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 35 i - 2979ccm, 326pk, 240kw - N55 B30 A X6 (F16, F86) | 08.2014-07.2019 xDrive 40 d - 2993ccm, 313pk, 230kw - N57 D30 B X6 (F16, F86) | 08.2014-07.2019 xDrive 50 i - 4395ccm, 449pk, 330kw - N63 B44 B -
Original part numbers
34216779535 BMW 34216795318 BMW -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
Delivery time
Expected delivery date:
02-05-2024
-
