Zimmermann

Brake Pad Set, disc brake 24484.190.1 Zimmermann

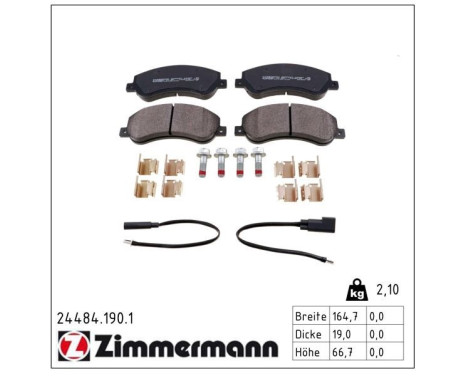

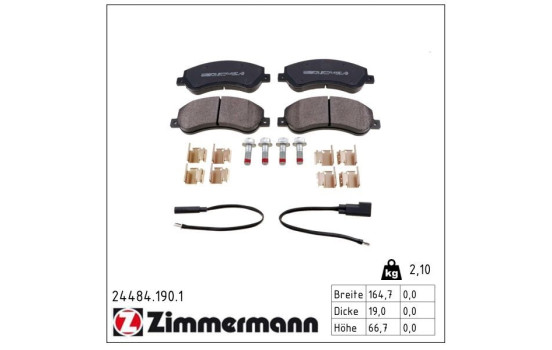

Brake Pad Set, disc brake 24484.190.1 Zimmermann Brake Pad Set, disc brake 24484.190.1 Zimmermann, Image 2

Product number: 0844871

Manufacturer number: 24484.190.1

EAN: 4250238746638

€ 94,65

Incl. VAT
View product specifications
In stock
Delivery 22-12-2025
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Zimmermann brake pads are specially optimized for your car. This gives you a brake pad set that runs smoothly, provides good braking power, but lasts a long time. The brake pads from Zimmermann are similar to the original brake pads of your car or exceed the specifications.

    Complete set:

    • 4 brake pads, everything you need for the left and right wheel.
    • With anti-corrosion layer

    Key benefits:

    • German quality
    • Perfect fit
    • Long lifespan
    braking SystemBendix-Bosch
    Wear Warning ContactIncl. wear warning contact
    ContentSet (4 brake pads per axle)
    Supplementary Article/Info 2With screws
    Supplementary Article/Supplementary InfoPhoto corresponds to the scope of delivery
    With guide plate
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]67
    Width [mm]165
    Thickness [mm]19
    Number of wear indicators [per axle]2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 37558
    € 45,84
    ABE C1G058ABE-P
    AISIN BPFO-1014
    ASHIKA 50-00-0324
    ASHUKI P1-1053
    ATE 13.0460-3834.2
    € 82,53
    BARUM BA2306
    BELACO BPD1213
    BLUE PRINT ADF124220
    € 29,27
    BREMBO P 24 064
    € 43,93
    BREMSI BP3274
    BSG BSG 90-200-039
    BSG BSG 30-200-005
    Brake ENGINEERING PA1698
    CHAMPION 573275CH
    CIFAM 822-680-0
    COMLINE CBP21512
    DENCKERMANN B110930
    DON PCP1651
    Dr!ve+ DP1010.10.0902
    EUROBRAKE 5502222566
    FEBI BILSTEIN 16637
    € 28,89
    FERODO FVR1928
    € 48,53
    FTE 9010629
    GALFER B1.G102-0801.2
    GIRLING 6117244
    HELLA 8DB 355 012-761
    HERTH+BUSS JAKOPARTS J3600818
    JAPANPARTS PA-0324AF
    JAPKO 500324
    JURID 573275J
    KAMOKA JQ1013856
    KRAFT AUTOMOTIVE 6002308
    Manufacturer Manufacturer number Price
    LORO 231-01-141
    MAGNETI MARELLI 363916060272
    MAGNETI MARELLI 363700424064
    MASTER-SPORT 13046038342N-SET-MS
    MASTER-SPORT 13046038342N-SET-MSP
    MAXGEAR 19-0878
    METELLI 22-0680-0
    METZGER 1170290
    MEYLE 025 244 8419/W
    € 34,35
    MEYLE 025 244 8419/PD
    € 50,69
    MINTEX MDB2851
    MOTAQUIP LVXL1318
    NATIONAL NP2056
    NK 222566
    OPTIMAL BP-12656
    PAGID T1640N
    QUARO QP2247
    QUARO QP2247C
    RAICAM RA.0892.0
    SKF VKBP 80091 E
    SWAG 50 91 6637
    TEXTAR 2448401
    € 53,34
    TOPRAN 303 968
    TRUSTING 696.0
    TRW GDB1724
    € 41,30
    VAICO V25-8129
    VALEO 301816A
    VALEO 598816
    VALEO 301816
    VALEO 872816
    € 40,40
    ZIMMERMANN 24484.190.1 (this product)
    fri.tech. 696.0

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 135pk, 100kw - USRA, USRB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 140pk, 103kw - H9FD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 3.2 TDCi - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Van
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 136pk, 100kw - USRA, USRB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB

  • Original part numbers

    1 371 402 FORD
    1 433 952 FORD
    6C11-2K021-AD FORD
    9C11-2K021-AA FORD
    1 560 014 FORD
    1 721 087 FORD
    6C11-2K021-AE FORD
    1 553 797 FORD
    1 824 346 FORD

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
