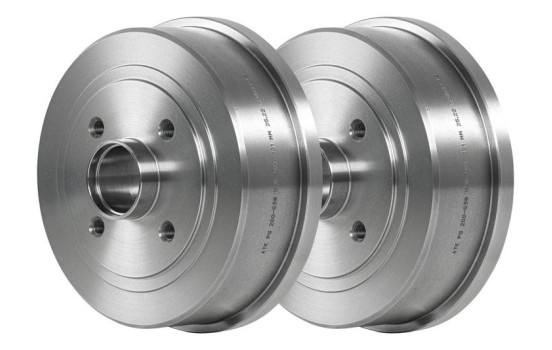

Brake Drum 24.0220-0038.1 ATE

Brake Drum 24.0220-0038.1 ATE Brake Drum 24.0220-0038.1 ATE, Image 2
  • Brake Drum 24.0220-0038.1 ATE
  • Brake Drum 24.0220-0038.1 ATE, Thumbnail 2

Product number: 1381227

Manufacturer number: 24.0220-0038.1

EAN: 4006633106962

€ 53,61

Incl. VAT
View product specifications
In stock
Delivery 01-06-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

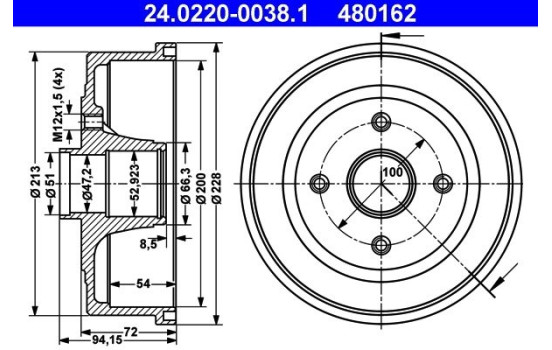

  • Specifications

    Inner diameter 2 [mm]47,2
    Supplementary Article/Info 2Without wheel bearing
    Without ABS sensor ring
    Number of Holes4
    Bolt Hole Circle Ø [mm]100,0
    Thread SizeM12X1,5
    Support plate diameter [mm]53,0
    Inspection TagE1 90R-02D0955/0094
    MAPP code available
    Warranty2 years
    Brake drum diameter outside [mm]228,0
    Brake drum diameter inside [mm]200,0
    Brake drum height total [mm]94,2
    Internal brake drum height [mm]54,0
    max. brake drum turn-out size [mm]201,0

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 2739-S
    € 38,18
    ABE C6X009ABE
    ABTEX BDM909
    AIC 54778
    AMBMI TDO-015K
    ASHIKA 56-00-0412C
    ATE 24.0220-0038.1 (this product)
    BELACO BDM1058
    BELACO BDM1125
    BLUE PRINT ADBP470001
    € 71,02
    BORG & BECK BBR7124
    BOSCH 0 986 477 135
    € 80,43
    BRAXIS AD5034
    BRECO BK 1206
    BRECO BT 1206
    BREMBO 14.E311.50
    BREMBO 14.E311.10
    BREMSI CR5601
    BREMSI CR5601B
    BSG BSG 65-225-005
    DACO 302703
    DELPHI BF472
    DIAMAX N02167
    Dr!ve+ DP1010.11.1704
    EUROBRAKE 5825253617
    FEBI BILSTEIN 171003
    € 76,30
    FERODO FDR329259
    FTE 9190059
    GH GH-423617
    GH GH-423618
    HELLA 8DT 355 300-411
    HELLA 8DT 355 302-731
    JAPANPARTS TA-0412C
    JAPKO 560412C
    JPN 60H9010-JPN
    JURATEK JDR080
    Manufacturer Manufacturer number Price
    KAMOKA 104033
    KAVO PARTS BD-10024
    KAWE 7D0601
    KRAFT AUTOMOTIVE 6061522
    LPR 7D0601
    € 49,86
    LYNXauto BM-1142
    MAXGEAR 19-3701
    MAXGEAR 19-1357
    MAXTECH 872512
    MINTEX MBD200
    NK 253617
    OPTIMAL BT-2260
    PAGID 61242N
    PAGID 61414N
    ProfiPower 6B2004K
    ProfiPower 6B2004
    QUINTON HAZELL BDR597
    RAP BRAKES R-E0096
    RIDEX 123B0041
    ROTINGER RT 6805-GL
    ROTINGER RT 6805
    SAMKO S70601
    STARK SKBDM-0800040
    STELLOX 6025-9924-SX
    SWAG 33 10 0663
    TEXTAR 94024200
    € 44,44
    TEXTAR 94041100
    TOPRAN 206 492
    TRISCAN 8120 24209C
    TRW DB4302B
    TRW DB4302
    VAICO V40-60005
    VALEO 237098
    ZIMMERMANN 430.1786.20
    € 46,96
    goCORE GCA230057

  • Applicability

    OPEL
    CORSA C
    CORSA C (X01) | 09.2000-12.2009 1.0 (F08, F68) - 973ccm, 58pk, 43kw - Z 10 XE
    CORSA C (X01) | 09.2000-12.2009 1.0 (F08, F68) - 998ccm, 60pk, 44kw - Z 10 XEP
    CORSA C (X01) | 09.2000-12.2009 1.2 (F08, F68) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSA C (X01) | 09.2000-12.2009 1.2 Twinport (F08, F68) - 1229ccm, 80pk, 59kw - Z 12 XEP
    CORSA C (X01) | 09.2000-12.2009 1.3 CDTI (F08, F68) - 1248ccm, 70pk, 51kw - Z 13 DT, Y 13 DT
    CORSA C (X01) | 09.2000-12.2009 1.4 (F08, F68) - 1389ccm, 90pk, 66kw - Z 14 XE
    CORSA C (X01) | 09.2000-12.2009 1.4 Twinport (F08, F68) - 1364ccm, 90pk, 66kw - Z 14 XEP
    CORSA C (X01) | 09.2000-12.2009 1.7 DI (F08, F68) - 1686ccm, 65pk, 48kw - Y 17 DTL
    CORSA C (X01) | 09.2000-12.2009 1.7 DTI (F08, F68) - 1686ccm, 75pk, 55kw - Y 17 DT
    CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.2 (F08, W5L) - 1229ccm, 80pk, 59kw - Z 12 XEP
    CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.2 16V (F08, W5L) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.3 CDTI 16V (F08, W5L) - 1248ccm, 69pk, 51kw - Z 13 DT
    CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.7 DI 16V (F08, W5L) - 1686ccm, 65pk, 48kw - Y 17 DTL
    CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.7 DTI 16V (F08, W5L) - 1686ccm, 75pk, 55kw - Y 17 DT
    TIGRA TwinTop
    TIGRA TwinTop (X04) | 06.2004-12.2010 1.3 CDTI (R97) - 1248ccm, 69pk, 51kw - Z 13 DT
    TIGRA TwinTop (X04) | 06.2004-12.2010 1.4 (R97) - 1364ccm, 90pk, 66kw - Z 14 XEP
    TIGRA TwinTop (X04) | 06.2004-12.2010 1.8 (R97) - 1796ccm, 125pk, 92kw - Z 18 XE
    VAUXHALL
    CORSA Mk
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.0 12V (F08, F68) - 973ccm, 58pk, 43kw - Z 10 XE
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.0 12V (F08, F68) - 998ccm, 60pk, 44kw - Z 10 XEP
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.2 16V (F08, F68) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.2 16V Dualfuel (F08) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.2 Twinport (F08, F68) - 1229ccm, 80pk, 59kw - Z 12 XEP
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.3 CDTI 16V (F08, F68) - 1248ccm, 69pk, 51kw - Z 13 DT, Y 13 DT
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.4 16V (F08, F68) - 1389ccm, 90pk, 66kw - Z 14 XE
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.4 Twinport (F08, F68) - 1364ccm, 90pk, 66kw - Z 14 XEP
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.7 DI 16V (F08, F68) - 1686ccm, 65pk, 48kw - Y 17 DTL
    CORSA Mk II (C) (X01) | 08.2000-04.2007 1.7 DTI 16V (F08, F68) - 1686ccm, 75pk, 55kw - Y 17 DT
    CORSAVAN Mk
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.2 16V (F08) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.2 16V (F08) - 1229ccm, 80pk, 59kw - Z 12 XEP
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.2 16V Dualfuel (F08) - 1199ccm, 75pk, 55kw - Z 12 XE
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.2 16V Dualfuel (F08) - 1229ccm, 80pk, 59kw - Z 12 XEP
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.3 CDTI 16V (F08) - 1248ccm, 70pk, 52kw - Z 13 DT
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.4 (F08) - 1364ccm, 89pk, 66kw - Z 14 XEP
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.7 DI 16V (F08) - 1686ccm, 65pk, 48kw - Y 17 DTL
    CORSAVAN Mk II (C) Hatchback Van (X01) | 09.2000-11.2006 1.7 DTI 16V (F08) - 1686ccm, 75pk, 55kw - Y 17 DT
    TIGRA TwinTop
    TIGRA TwinTop (X04) | 06.2004-08.2009 1.3 CDTI - 1248ccm, 69pk, 51kw - Z 13 DT
    TIGRA TwinTop (X04) | 06.2004-08.2009 1.4 - 1364ccm, 90pk, 66kw - Z 14 XEP
    TIGRA TwinTop (X04) | 06.2004-08.2009 1.8 - 1796ccm, 125pk, 92kw - Z 18 XE

  • Original part numbers

    4 18 001 VAUXHALL
    4 18 001 OPEL
    9196290 VAUXHALL
    9196290 OPEL

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
