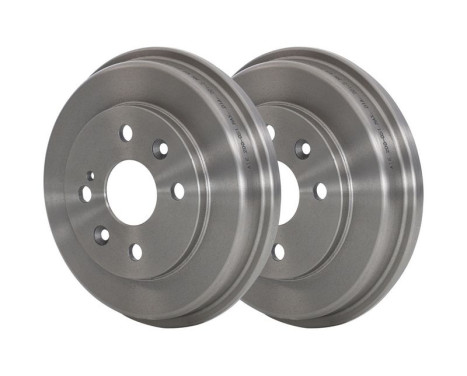

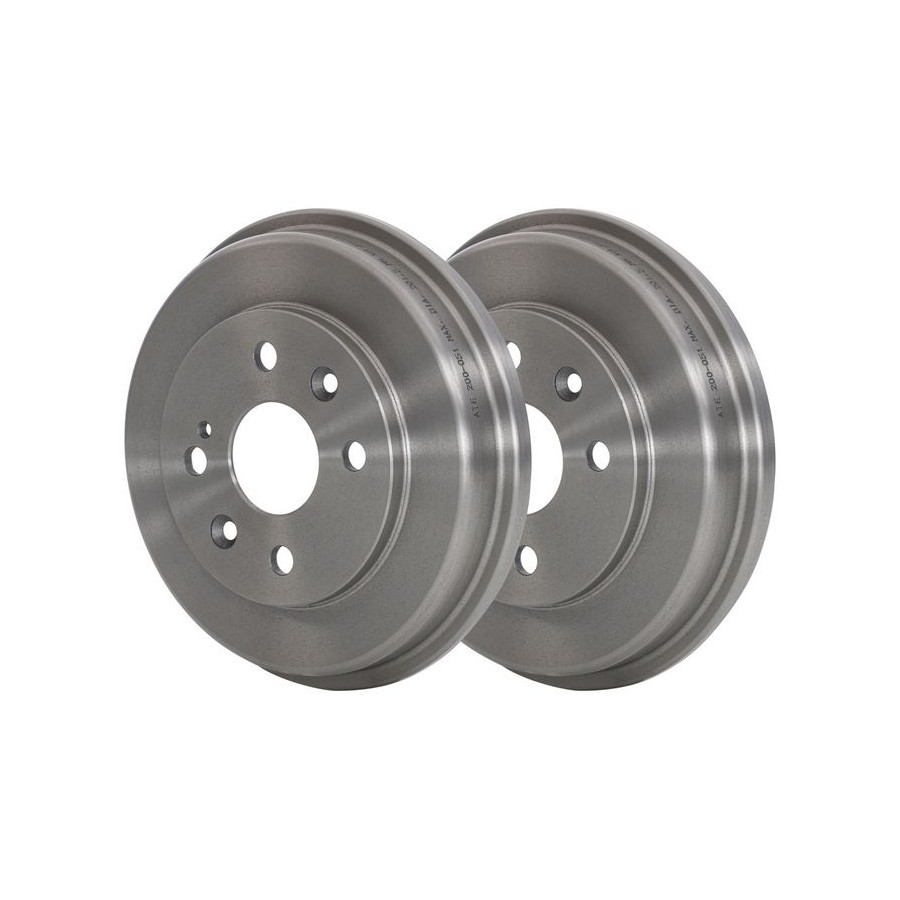

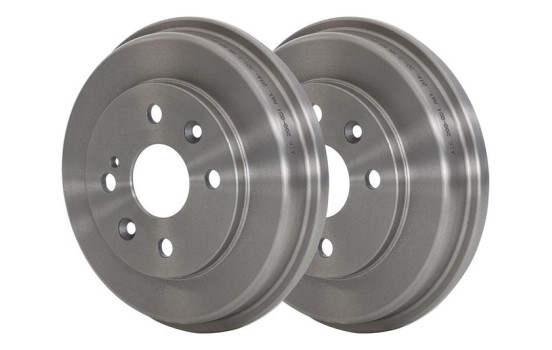

Brake drum 24.0220-0051.1 ATE

Name: Brake drum 24.0220-0051.1 ATE | Winparts.ie - Brake drum
Brand: ATE
SKU: 2034039
Price: 47.87 EUR
Availability: InStock

Product number: 2034039

Manufacturer number: 24.0220-0051.1

EAN: 4006633468756

€ 47,⁸⁷

Incl. VAT

Immediately available

Delivery 10-09-2026

Quantity:

Secure payment

UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Enter your number plate or Manually select.

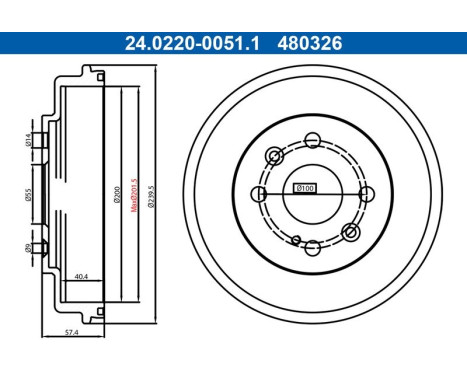

Number of Holes	4
Support plate diameter [mm]	55,0
Inspection Tag	E1 90R-02D0324/1876
MAPP code available
Warranty	2 years
application	Ready
Brake drum diameter outside [mm]	239,5
Brake drum diameter inside [mm]	200,0
Category	Brake system
Hole diameter [mm]	14,0
Brake drum height total [mm]	57,4
Internal brake drum height [mm]	40,4
max. brake drum turn-out size [mm]	201,5
Wheel bolt pitch [mm]	100,0

MAZDA

	2
	2 (DE_, DH_) \| 07.2007-06.2015 1.3 (DE3FS) - 1349ccm, 75pk, 55kw - ZJ46
	2 (DE_, DH_) \| 07.2007-06.2015 1.3 (DE3FS) - 1349ccm, 86pk, 63kw - ZJ46
	2 (DE_, DH_) \| 07.2007-06.2015 1.3 MZR (DE3FS) - 1349ccm, 84pk, 62kw - ZJ-VE, ZJ46
	2 (DE_, DH_) \| 07.2007-06.2015 1.4 MZR-CD - 1399ccm, 68pk, 50kw - Y407
	2 (DE_, DH_) \| 07.2007-06.2015 1.5 (DE5FS) - 1498ccm, 103pk, 76kw - ZY66, ZY84
	2 (DE_, DH_) \| 07.2007-06.2015 1.5 (DE5FS, DE10Y) - 1498ccm, 113pk, 83kw - ZY66, ZY84
	2 (DE_, DH_) \| 07.2007-06.2015 1.5 MZR (DE5FS) - 1498ccm, 102pk, 75kw - ZY05, ZY66
	2 (DE_, DH_) \| 07.2007-06.2015 1.6 MZ-CD - 1560ccm, 90pk, 66kw - Y406, Y646
	2 (DE_, DH_) \| 07.2007-06.2015 1.6 MZ-CD - 1560ccm, 95pk, 70kw - Y655, Y661
	2 Hatchback
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 - 1496ccm, 75pk, 55kw - P5Y5, P5Y8, P5X0, P5X2, P5Z7, P5Z8, P5Z9
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 (DJ2HA) - 1496ccm, 107pk, 79kw - P5Y4, P5Y6
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 D (DJ5FS) - 1499ccm, 105pk, 77kw - S5Y5, S5Y2, S5Y7, S5Y6, S5Y8
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 E-SKYACTIV G - 1496ccm, 116pk, 85kw - P5Z7, P5X9, P5ZE
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 SKYACTIV-G - 1496ccm, 90pk, 66kw - P5Y5, P5Y8, P5Y6, P5X0, P5X2, P5Z7, P5Z8, P5Z9, P5Z2, P5Z3
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 SKYACTIV-G (DJLFS) - 1496ccm, 115pk, 85kw - P5Y5, P5X0, P5X2, P5Z7, P5Z8, P5Z9, P5Z3
	2 Hatchback (DL, DJ) \| 08.2014-??? 1.5 SKYACTIV-G M Hybrid - 1496ccm, 75pk, 55kw - P5XC

DF71-26-251	MAZDA
DA7R-26-251	MAZDA

Manufacturer

When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
