Brake drum 24.0220-3042.1 ATE
Product number: 2002152
Manufacturer number: 24.0220-3042.1
EAN: 4006633469876
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

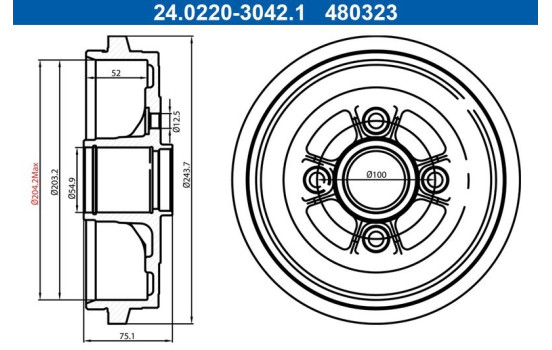

Supplementary Article/Info 2 Without wheel bearing Without ABS sensor ring Without wheel studs Number of Holes 4 Bolt Hole Circle Ø [mm] 100,0 Support plate diameter [mm] 54,9 MAPP code available Warranty 2 years Brake drum diameter outside [mm] 243,7 Brake drum diameter inside [mm] 203,2 Hole diameter [mm] 12,5 Brake drum height total [mm] 75,1 Internal brake drum height [mm] 52,0 max. brake drum turn-out size [mm] 204,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 2875-S ATE 24.0220-3042.1 (this product) BELACO BDM1139 BLUE PRINT ADN14727 BLUE PRINT ADBP470048 BORG & BECK BBR7260 BOSCH 0 986 477 292 DELPHI BF574 FEBI BILSTEIN 198259 -
Applicability
NISSAN MICRA IV MICRA IV (K13K, K13KK) | 05.2010-10.2020 1.2 - 1198ccm, 76pk, 56kw - HR12DE MICRA IV (K13K, K13KK) | 05.2010-10.2020 1.2 - 1198ccm, 80pk, 59kw - HR12DE MICRA IV (K13K, K13KK) | 05.2010-10.2020 1.2 DIG-S - 1198ccm, 98pk, 72kw - HR12DDR, HR12DR NOTE NOTE (E12) | 08.2012-12.2016 1.2 - 1198ccm, 80pk, 59kw - HR12DE NOTE (E12) | 08.2012-12.2016 1.2 DIG-S - 1198ccm, 98pk, 72kw - HR12DDR, HR12DR NOTE (E12) | 08.2012-12.2016 1.2 DIG-S - 1198ccm, 88pk, 65kw - HR12DR NOTE (E12) | 08.2012-12.2016 1.5 dCi - 1461ccm, 90pk, 66kw - K9K 892, K9K 608 VERSA II VERSA II (N17_) | 08.2011-??? 1.5 - 1498ccm, 99pk, 73kw - HR15DE -
Original part numbers
43206-1HA0A NISSAN 43206-3VU0A NISSAN -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
