Bosch

Compressor, air conditioning

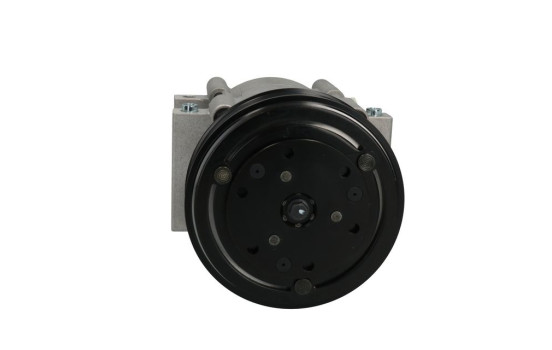

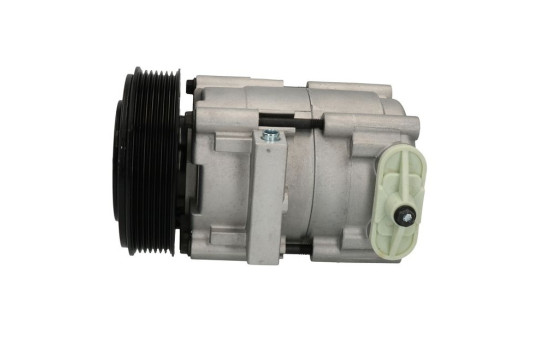

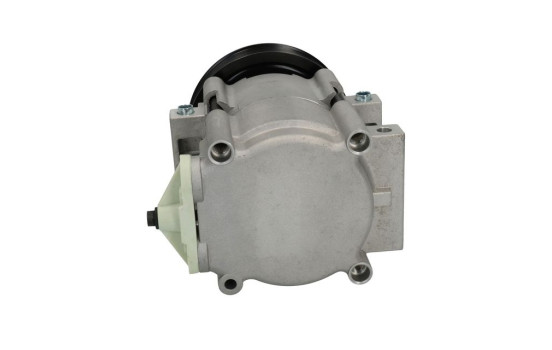

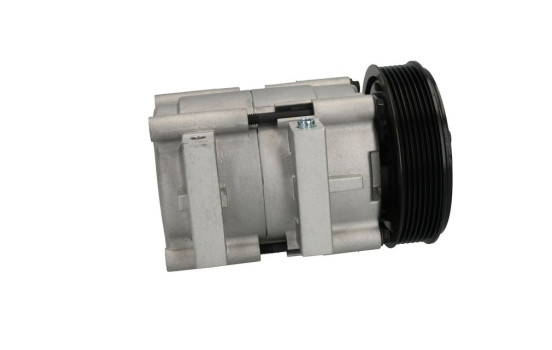

Compressor, air conditioning Compressor, air conditioning, Image 2 Compressor, air conditioning, Image 3 Compressor, air conditioning, Image 4
  • Compressor, air conditioning
  • Compressor, air conditioning, Thumbnail 2
  • Compressor, air conditioning, Thumbnail 3
  • Compressor, air conditioning, Thumbnail 4

Product number: 2124434

Manufacturer number: 1 986 AD1 193

EAN: 4047026862065

€ 213,18

Incl. VAT
View product specifications
In stock
Delivery 22-06-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    applicationAir conditioning pump
    Supplementary Article/Info 2With mounting manual
    Voltage [V]12
    Belt Pulley Ø [mm]127
    RefrigerantR 134a
    Compressor ID10S17C
    Number of grooves7
    Oil Fill Quantity [ml]180
    Warranty2 years
    Compressor oilPAG 46
    Additional Articles/Additional Information 3Pre-filled with the correct type of oil
    Exhaust diameter [mm]16,4
    Output diameter [mm]13
    Observe the oil quantity specified in the manual.

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AES 090.595.031.310
    AES 090.595.031.000
    AES 090.595.031.020
    AVA QUALITY COOLING FDAK167
    € 211,13
    Airstal 10-0597
    BOSCH 1 986 AD1 193 (this product)
    CV PSH 090.595.031.000
    € 268,69
    CV PSH 090.595.031.310
    CV PSH 090.595.031.020
    € 156,43
    DA SILVA FC0091
    DRI 700510117
    ELSTOCK 51-0117
    FAST FT56310
    FISPA 1.8013A
    FISPA 1.8023A
    HELLA 8FK 366 202-041
    HELLA 8FK 366 201-061
    HOFFER K18023A
    Manufacturer Manufacturer number Price
    HOFFER K18013A
    KRIOS 1.8013A
    KRIOS 1.8023A
    LUCAS ACP216
    MEAT & DORIA K18023A
    MEAT & DORIA K18013A
    NISSENS 890081
    € 192,90
    NRF 32447
    € 171,36
    RIDEX 447K0024
    SIDAT 1.8013A
    SIDAT 1.8023A
    STARK SKKM-0340024
    TURBO MOTOR AC00117
    VALEO 699827
    VAN WEZEL 1800K167
    € 165,78
    WILMINK GROUP WG2159354
    WILMINK GROUP WG2118106

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI (F_B_, F_C_, F_A_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_, F_A_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE (F_C_, F_B_, F_A_) - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 140pk, 103kw - H9FD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 3.2 TDCi - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 90pk, 66kw - D2FA, D2FB, D2FE
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT TOURNEO
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 131pk, 96kw - QWFA
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TD - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB

  • Original part numbers

    4345118 FORD
    F75H19D629AA FORD
    YC1H19D629AC FORD
    4681621 FORD
    R20BYU19D629AA FORD
    3649381 FORD
    4502836 FORD
    1440713 MAZDA
    YC1H19D629AA FORD
    4L3H19497AC MAZDA
    YC1H19D629AB FORD
    4979391 FORD
    F7LH19497BA FORD
