Wagner Tuning Comp. Intercooler Kit Fiat 500 Abarth
Fiat Abarth 500 1.4 Turbo 99 kW/135 hp (2008-)
The WAGNERTUNING high-performance intercooler features a new type of competition mesh (Tube Fin) measuring 600 mm x 204.6 mm x 80 mm (9.8 litres), specially developed for the requirements of the Fiat 500 Abarth. This high-performance mesh offers an 85% larger intake surface area and 131% more mesh volume compared to the original intercoolers. The cast aluminium end casings were designed in CAD and optimised using CFD simulations (for ideal internal airflow).
For optimal heat exchange, the WAGNERTUNING high-performance intercooler is mounted at the front of the vehicle, replacing the two original side coolers. Together with the WAGNERTUNING silicone hoses, the newly developed elliptical hose connection at the outlet of this intercooler allows for maximum shortening of the intercooler duct. This, combined with the generally lower backpressure of the intercooling system (see diagram), significantly improved overall responsiveness.
A heat-conducting anti-corrosion coating protects the WAGNERTUNING intercooler from all environmental influences, ensuring long-lasting and optimal cooling. Installation is simple (plug and play) and replaces the original intercooler. All our products are continuously monitored for quality.
Dimensions of the original intercoolers (2x):
190 mm x 175 mm x 64 mm
V = 4.3 liters
A = 665 cm²Dimensions of the WAGNERTUNING intercooler:
600 mm x 204.6 mm x 80 mm
V = 9.8 liters
A = 1227 cm²Scope of delivery:

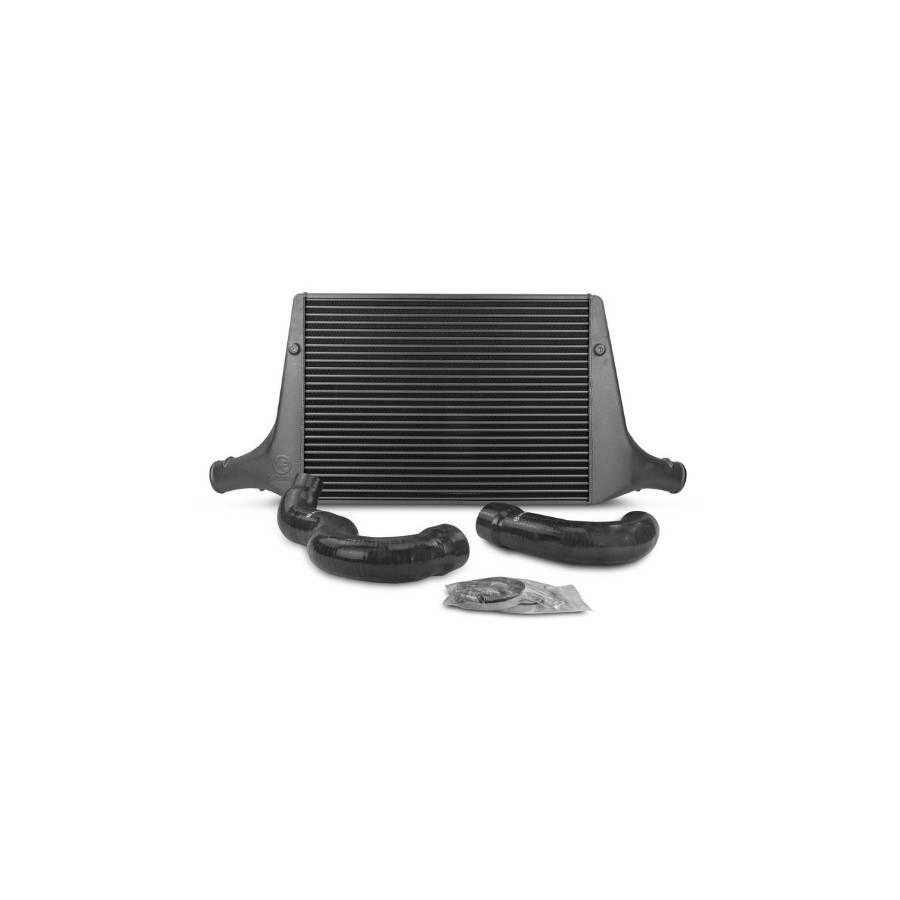

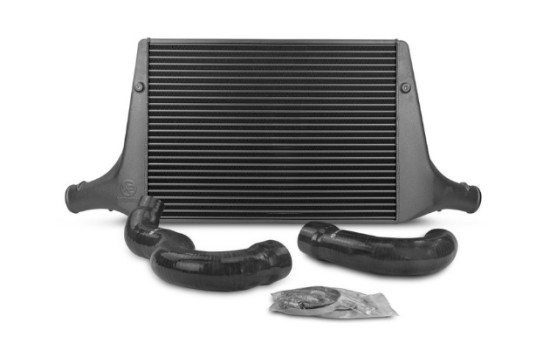

1 intercooler (black coated)
1 crossbar (black coated)
2 silicone hoses (black)
1 mounting material
1 assembly manual
application INTERCOOLER Warranty 2 years -
Applicability
ABARTH 500 / 500 / 595 / 695 | 08.2008-??? 1.4 (312.AXD1A) - 1368ccm, 135pk, 99kw - 312 A1.000 -
Manufacturer
The German Wagner Tuning offers a wide range of after-market performance parts, for many different brands.
The products are characterized by very good quality and clear assembly instructions. The after-sales service is also very good.
Winparts supplies intercoolers and downpipes from Wagner Tuning.
Wagner tuning distinguishes between 'Performance' and 'Competition'.
The Performance parts are a (strong) improvement of original parts. The Competition products are a further development here, with features that are also usable on the circuit. The Performance parts are plug-and-play in most cases, while at the Competition parts something needs to be adjusted. This appears from the manual. -
