Accessory Kit, disc brake pads
Brake system: ATE Weight (kg): 0.09 Fitting: Front
Back to category

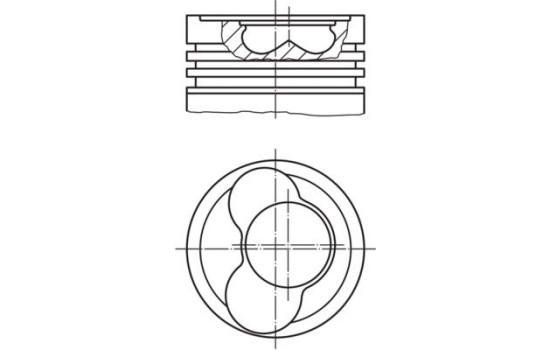

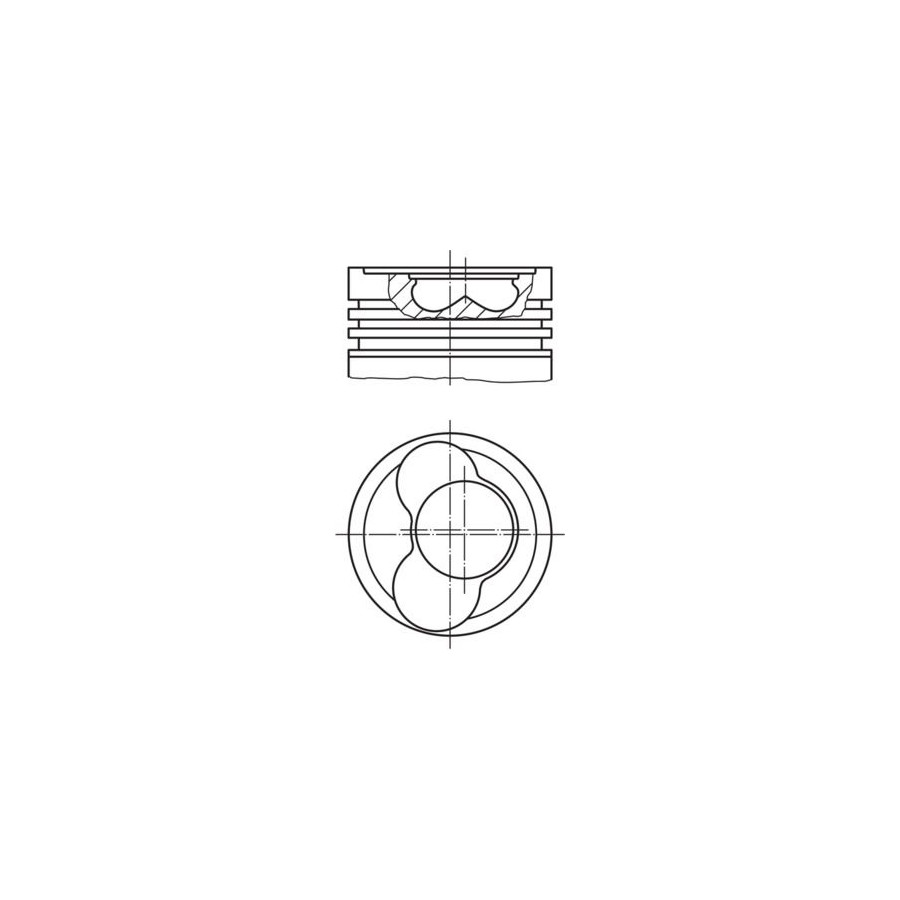

Piston
Product number: 1172263
Manufacturer number: 030 59 01
EAN: 4009026591628
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Fitting Position For cylinder 3 For cylinder 4 For cylinder 5 Supplementary Article/Info 2 With piston ring carrier Without cooling channel Surface Coated Machined With recess for oil sprayer Production Number 81 L 51 Packaging length [cm] 9,5 Packaging width [cm] 9,50 Packaging height [cm] 12,80 Recess Diameter [mm] 39,6 Recess Depth 1 [mm] 17,2 Warranty 2 years Bolt length [mm] 68,0 Component Number 1. R2.5 NW CrK 2. M 2.0 IFU P 3. DSF 3.0 Cr Length [mm] 69,8 Compression Height [mm] 45,75 Valve pocket depth 1 [mm] 1,35 Combustion surface [mm] 9 Net Weight [g] 821 Piston clearance [mm] 0,05 Cylinder bore [mm] 81,26 Bolt diameter [mm] 26,0 -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
