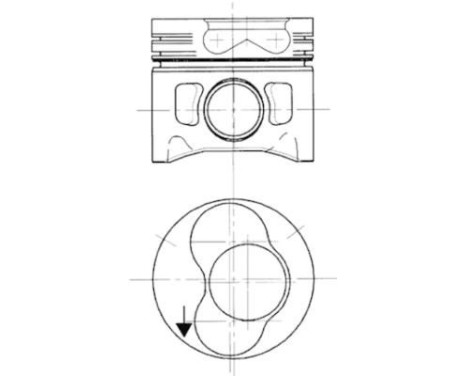

Piston
Product number: 1178887
Manufacturer number: 94427700
EAN: 4028977294648
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Cil.head seal Piston projection
Notch Thickness greater than less than
1 + 0.91 + 1.00
2 +1.01 +1.10
3 +1.11 +1.20
Fitting Position For cylinder 1 - 2 Production Number 079135 Recess Diameter [mm] 37,9 Recess Depth 1 [mm] 17,75 Warranty 2 years Bolt length [mm] 66 Component Number 80004 80007 86648 Length [mm] 71,8 Standard Size [STD] Compression Height [mm] 45,8 Valve pocket depth 1 [mm] 1 Piston clearance [mm] 0,06 Cylinder bore [mm] 79,51 Bolt diameter [mm] 26 Similar products of other manufacturers
-
Original part numbers
028 107 065 BC VW 028 107 065 BS VW 038 107 065 AA VW -
Manufacturer
KS Kolbenschmidt is also known as Rheinmetall-automotive.Rheinmetall-automotive is one of the world's foremost makers and development partners of system components for the base engine. -
