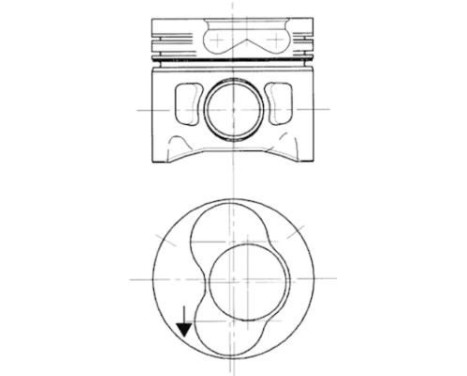

Piston
Product number: 1184777
Manufacturer number: 94428700
EAN: 4028977294709
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Cil.head seal Piston projection
Notch Thickness greater than less than
1 + 0.91 + 1.00
2 +1.01 +1.10
3 +1.11 +1.20
Fitting Position For cylinder 3 - 4 Production Number 079135 Recess Diameter [mm] 37,9 Recess Depth 1 [mm] 17,75 Warranty 2 years Bolt length [mm] 66 Component Number 80004 80007 86648 Length [mm] 71,8 Standard Size [STD] Compression Height [mm] 45,8 Valve pocket depth 1 [mm] 1 Piston clearance [mm] 0,06 Cylinder bore [mm] 79,51 Bolt diameter [mm] 26 Similar products of other manufacturers
Manufacturer Manufacturer number Price IPSA PI003100 KS KOLBENSCHMIDT 94428700 (this product) MAHLE ORIGINAL 030 41 00 MV Parts MV 4302000 MV Parts MV P8563 NE 130050001200 NE 130050061400 Manufacturer Manufacturer number Price NE 130050001229 NÜRAL 87-114900-95 WILMINK GROUP WG1023135 WILMINK GROUP WG1104390 WILMINK GROUP WG1175158 YENMAK 31-04302-000 -
Original part numbers
028 107 065 CA VW 028 107 065 CB VW 038 107 065 AB VW -
Manufacturer
KS Kolbenschmidt is also known as Rheinmetall-automotive.Rheinmetall-automotive is one of the world's foremost makers and development partners of system components for the base engine. -
