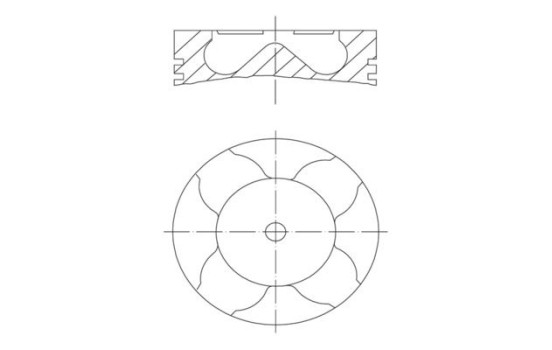

Piston
Product number: 1289701
Manufacturer number: 227 PI 00111 000
EAN: 4009026932445
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Supplementary Article/Info 2 With piston ring carrier With cooling channel Surface Coated Machined With recess for oil sprayer Production Number 120 L 182 Packaging length [cm] 13,2 Packaging width [cm] 13,20 Packaging height [cm] 19,00 Recess Diameter [mm] 68,7 Recess Depth 1 [mm] 19,7 Warranty 2 years Bolt length [mm] 96 Component Number 1. T3.5 IF PVD 2. M 3 Cr P 3. DSF 4.00 Cr Length [mm] 121,8 Compression Height [mm] 76,8 Valve pocket depth 1 [mm] 1,6 Combustion surface [mm] 10 Connecting Rod Design Trapezoidal connecting rod Valve pocket depth 2 [mm] 2,0 Net Weight [g] 3200 Piston clearance [mm] 0,130 Cylinder bore [mm] 120,0 Bolt diameter [mm] 52 Similar products of other manufacturers
-
Original part numbers
51 02500 6263 MAN 51 02500 6194 MAN 51 02511 0772 MAN -
Manufacturer
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
At Winparts we offer the following products from Mahle, among others: -
