Mahle

Dynamo / Alternator

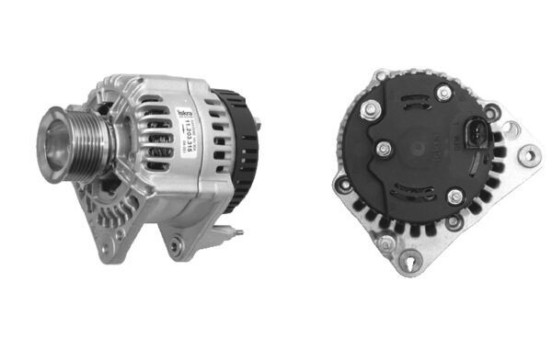

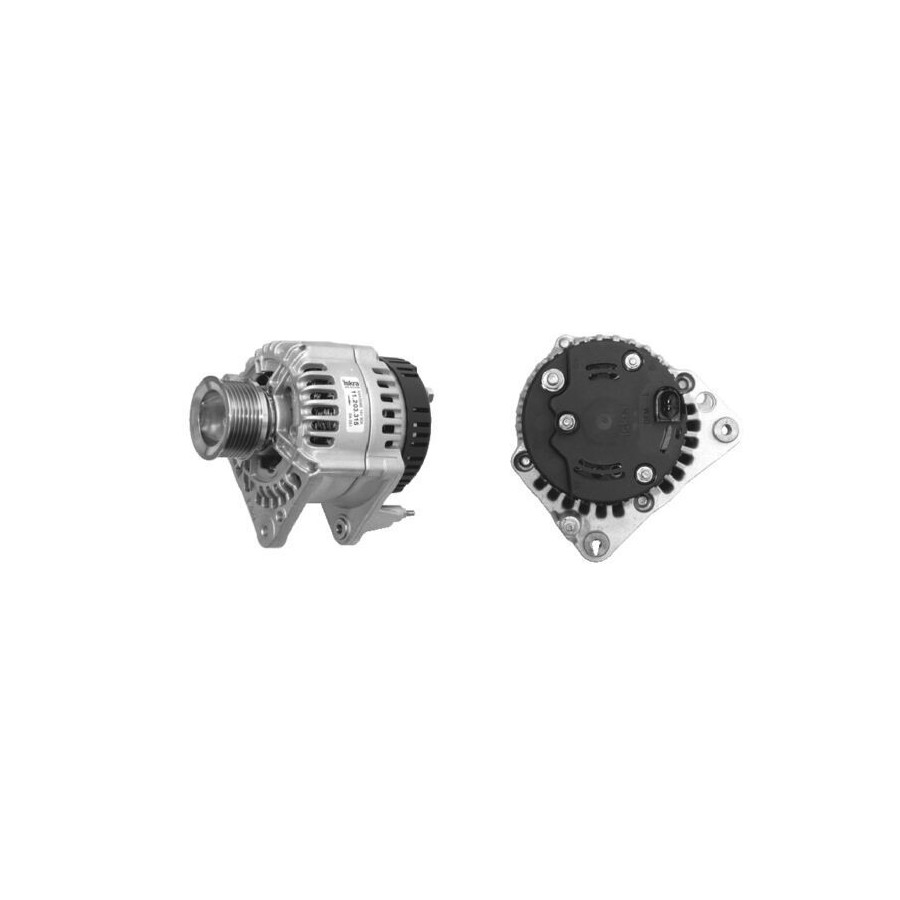

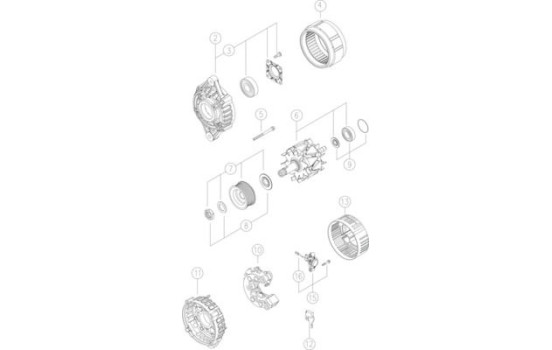

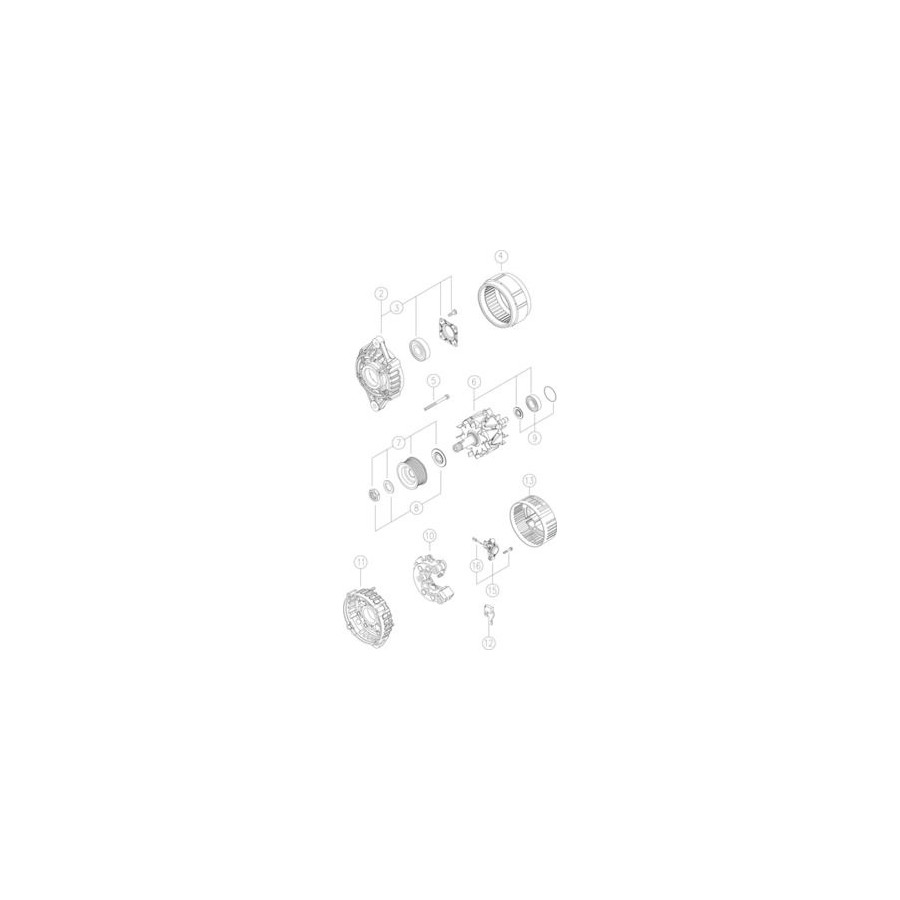

Dynamo / Alternator Dynamo / Alternator, Image 2 Dynamo / Alternator, Image 3
  • Dynamo / Alternator
  • Dynamo / Alternator, Thumbnail 2
  • Dynamo / Alternator, Thumbnail 3

Product number: 1782364

Manufacturer number: MG558

EAN: 3838922063196

€ 302,08

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

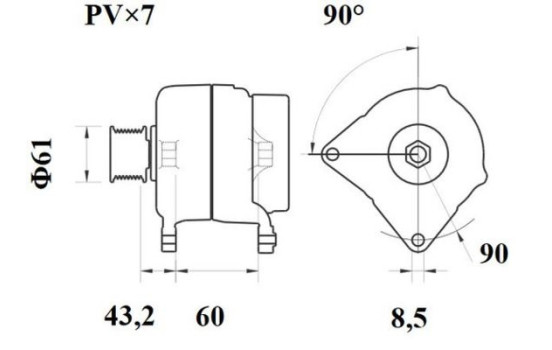

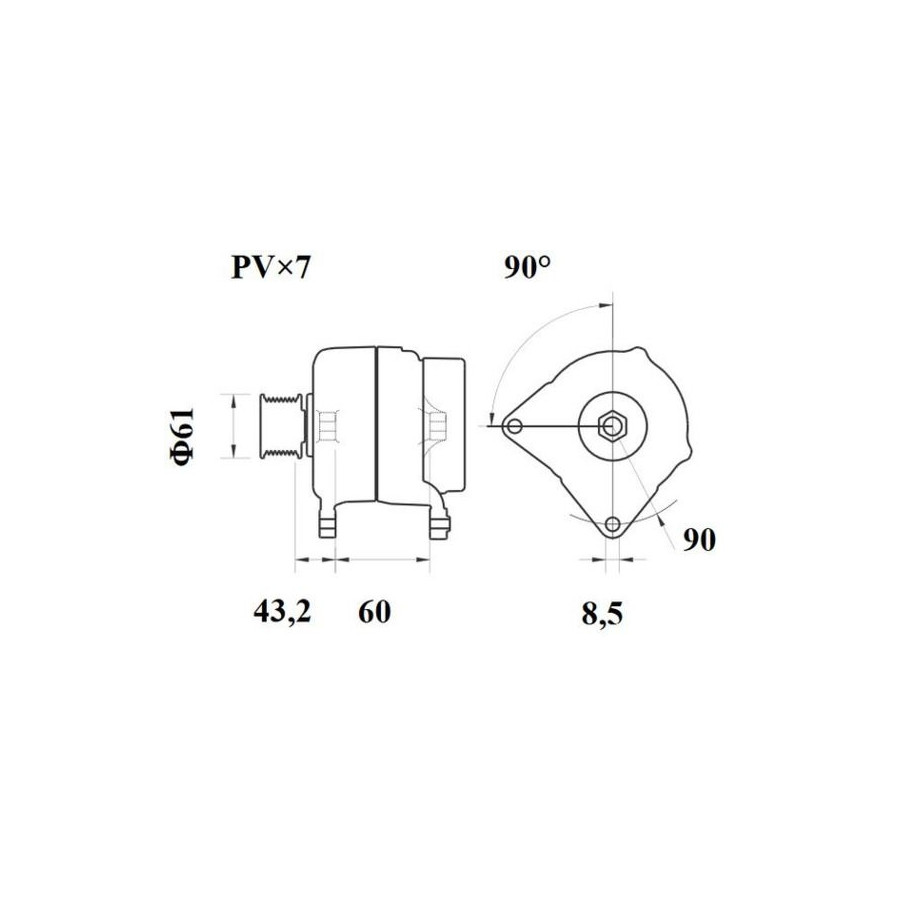

  • Specifications

    Voltage [V]14
    Number of Ribs7
    Alternator Charge Current [A]90
    Belt Pulley Ø [mm]61
    PulleysWith v-ribbed belt pulley
    Mounting points diameter [mm]90,0
    Mounting bores distance [mm]60,0
    Number of mounting bores2
    Distance from pulley to alternator [mm]43,2
    Number of belts7
    Rotation DirectionClockwise rotation
    Packaging length [cm]30,5
    Packaging width [cm]23,00
    Packaging height [cm]20,50
    Warranty2 years
    Dust CoverWith dust cover
    Net Weight [g]6180
    Hole diameter [mm]8,5

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AES 305.596.090.010
    BORG & BECK BBA2161
    BORG & BECK BBA2158
    BORG & BECK BBA2586
    BTS Turbo G105720
    CV PSH 305.596.090.010
    FEBI BILSTEIN 101503
    € 141,87
    Henkel Parts 3117594
    MAHLE MG558 (this product)
    NAPA NAL1974
    NAPA NAL1771
    Manufacturer Manufacturer number Price
    VALEO 436484
    VEMO V10-13-38370
    WAI A132.261
    WAI A132.263
    WAI A132.190
    WAI 22462N
    WAI 13850N
    € 118,09
    WAI 13852N-6G
    € 107,71
    WAI 13381N-7G
    WILMINK GROUP WG2043852

  • Applicability

    VOLKSWAGEN
    GOLF Mk
    GOLF Mk III (1H1) | 10.1991-12.1997 2.8 VR6 - 2792ccm, 174pk, 128kw - AAA
    GOLF Mk III Estate (1H5) | 07.1993-04.1999 2.9 VR6 Syncro - 2861ccm, 190pk, 140kw - ABV
    PASSAT B3/B4
    PASSAT B3/B4 (3A2, 35I) | 02.1988-08.1996 2.8 VR6 - 2792ccm, 174pk, 128kw - AAA
    PASSAT B3/B4 Estate (3A5, 35I) | 02.1988-05.1997 2.8 VR6 - 2792ccm, 174pk, 128kw - AAA
    PASSAT B3/B4 Estate (3A5, 35I) | 02.1988-05.1997 2.9 VR6 Syncro - 2861ccm, 184pk, 135kw - ABV
    TRANSPORTER /
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR 6 - 2792ccm, 140pk, 103kw - AES
    VENTO
    VENTO (1H2) | 11.1991-09.1998 2.8 VR6 - 2792ccm, 174pk, 128kw - AAA

  • Original part numbers

    021903025F AUDI
    021 903 025 J VW
    021903025H AUDI
    021903025F CUPRA
    021903025H CUPRA
    021903025J AUDI
    021903025J CUPRA
    021 903 025 H VW
    021 903 025 F VW
