Mahle

Dynamo / Alternator

Dynamo / Alternator Dynamo / Alternator, Image 2 Dynamo / Alternator, Image 3
  • Dynamo / Alternator
  • Dynamo / Alternator, Thumbnail 2
  • Dynamo / Alternator, Thumbnail 3

Product number: 1783064

Manufacturer number: MG613

EAN: 3838922818222

€ 597,07

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Voltage [V]14
    Alternator Charge Current [A]250
    PulleysWithout belt pulley

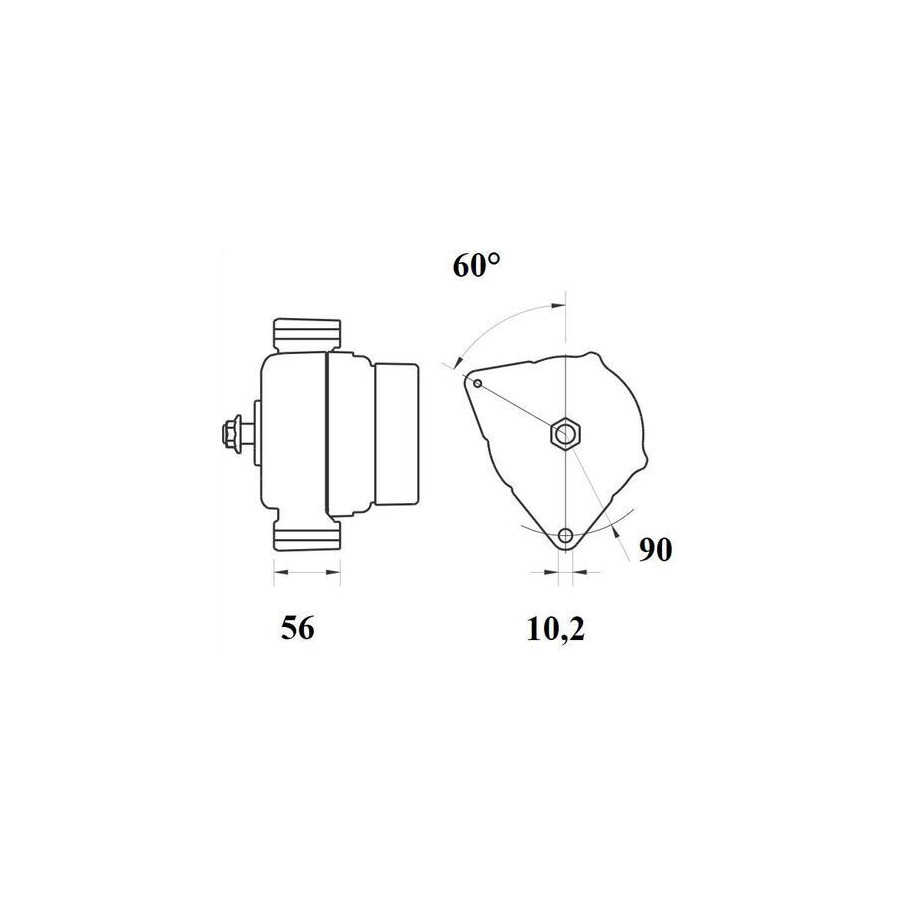

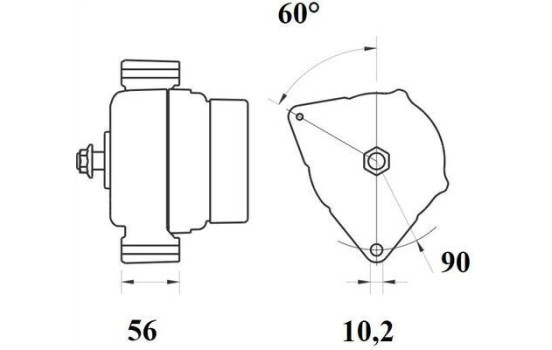

    Housing Diameter [mm]77
    Mounting points diameter [mm]90,0
    Mounting bores distance [mm]56,0
    Rotation DirectionClockwise rotation
    Alternator typeMulti-function
    Packaging length [cm]24,8
    Packaging width [cm]18,60
    Packaging height [cm]17,50
    Warranty2 years
    Connecting Angle [Degree]60
    Compact Alternator
    Net Weight [g]7246
    Hole diameter [mm]10,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    ACAUTO AC-CBA5535
    AD KÜHNER 556309RIM
    AD KÜHNER 556309RIS
    AD KÜHNER 556309RI
    AES 635.512.200.280
    AES 635.512.200.010
    ALANKO 10443668
    AS-PL A0711S
    AS-PL A9432S
    AS-PL A0711(SEG)
    ATL Autotechnik L 52 970
    BTS Turbo G101067
    BTS Turbo G101329
    BTS Turbo G100728
    CASCO CAL10349GS
    CASCO CAL21280AS
    CEVAM 2538
    CV PSH 635.512.200.010
    CV PSH 635.512.200.211
    CV PSH 635.512.200.014
    CV PSH 635.512.200.310
    CV PSH 635.512.200.280
    DA SILVA 032846
    Manufacturer Manufacturer number Price
    DRI 5861122002
    ELSTOCK 28-5896
    FARCOM 113386
    FEBI BILSTEIN 1003891
    FISPA A12BH1062
    FISPA A12BH1062AS
    FRIESEN 9091554
    HELLA 8EL 015 643-861
    HOFFER H5510749G
    ITAB AUTOMOTIVE 20010349OV
    LUCAS LRA03284
    MAHLE MG613 (this product)
    MEAT & DORIA 5510749G
    SEG Automotive 0124625221
    € 301,80
    SEG Automotive 0124625031-R
    SIDAT A12BH1062
    SIDAT A12BH1062AS
    TESLA TECHNICS TT12891 PRO
    TURBO MOTOR AL02918
    WAI 12783N
    WAI 12796N
    WILMINK GROUP WG2043910

  • Applicability

    Universally applicable

  • Original part numbers

    AL170947 JOHN DEERE
    V 836 673 431 FENDT
    836673431 AGCO SISU POWER
    AXE17691 JOHN DEERE
    SE501826 JOHN DEERE
    RE555751 JOHN DEERE

  • Manufacturer

    Mahle

    Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment

    More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.

    At Winparts we offer the following products from Mahle, among others:
