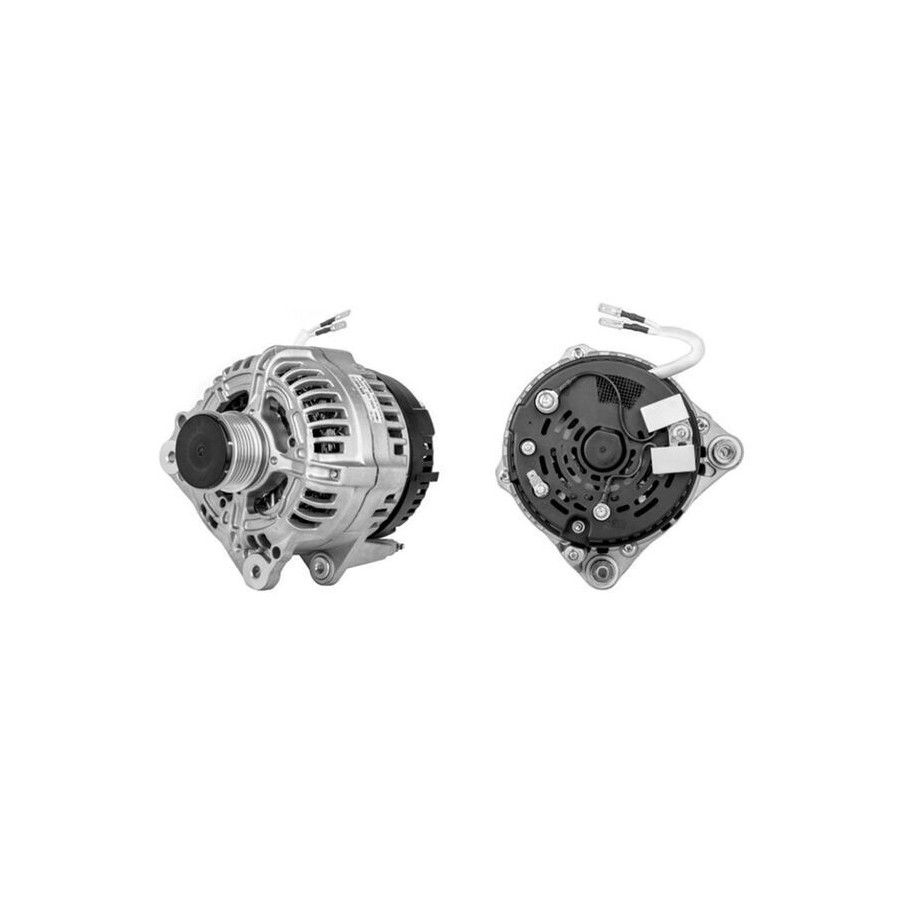

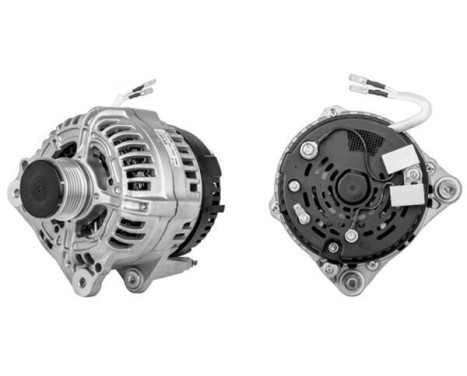

Dynamo

Name: Dynamo | Winparts.ie - Alternator
Brand: Mahle
SKU: 1449848
Price: 451.55 EUR
Availability: InStock

Product number: 1449848

Manufacturer number: MG 174

EAN: 3838922071641

Incl. VAT

Not available

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Enter your number plate or Manually select.

Voltage [V]	28
Supplementary Article/Supplementary Info	Without integrated regulator
Number of Ribs	6
Alternator Charge Current [A]	110

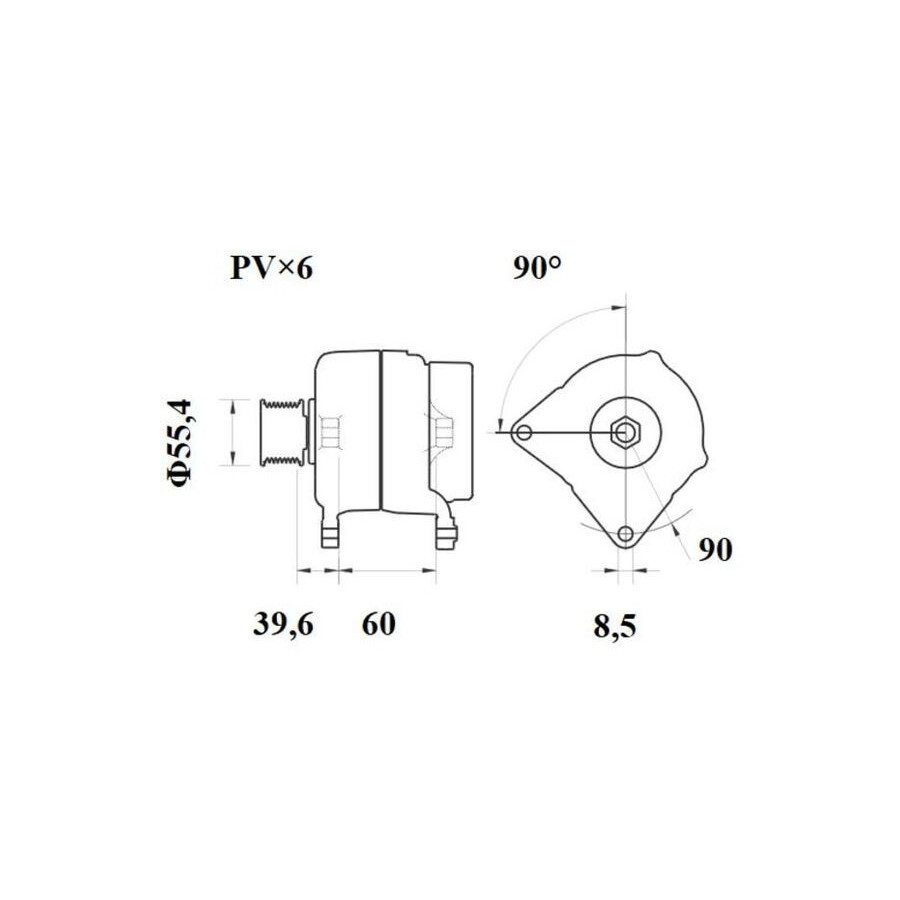

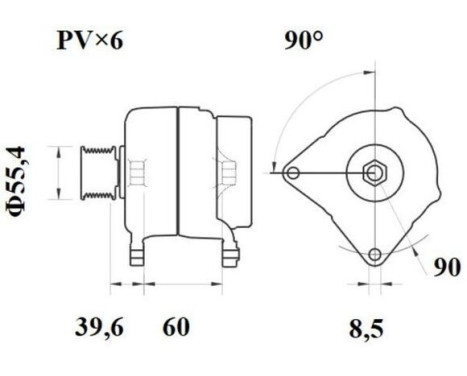

Belt Pulley Ø [mm]	55
Pulleys	With v-ribbed belt pulley
Pulleys	With freewheel belt pulley
Mounting points diameter [mm]	90,0
Mounting bores distance [mm]	60,0
Number of mounting bores	2
Connector / Clamp	W
Distance from pulley to alternator [mm]	39,6
Number of belts	6
Rotation Direction	Clockwise rotation
Alternator type	Generator built outside generator
Packaging length [cm]	24,8
Packaging width [cm]	18,60
Packaging height [cm]	17,50
Warranty	2 years
Dust Cover	With dust cover
Compact Alternator
Net Weight [g]	7931
Hole diameter [mm]	8,5

Manufacturer	Manufacturer number	Price
CASCO	CAL21637GS
MAHLE	MG 174	(this product)

Manufacturer	Manufacturer number	Price
WILMINK GROUP	WG2043444
