Mahle

Dynamo

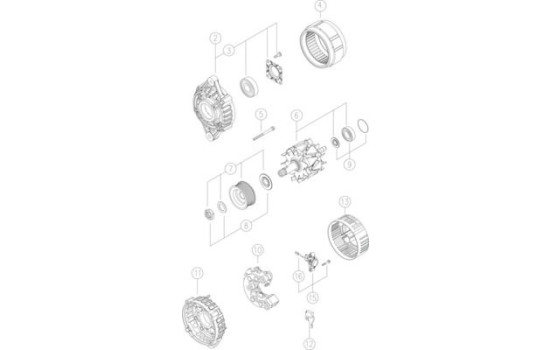

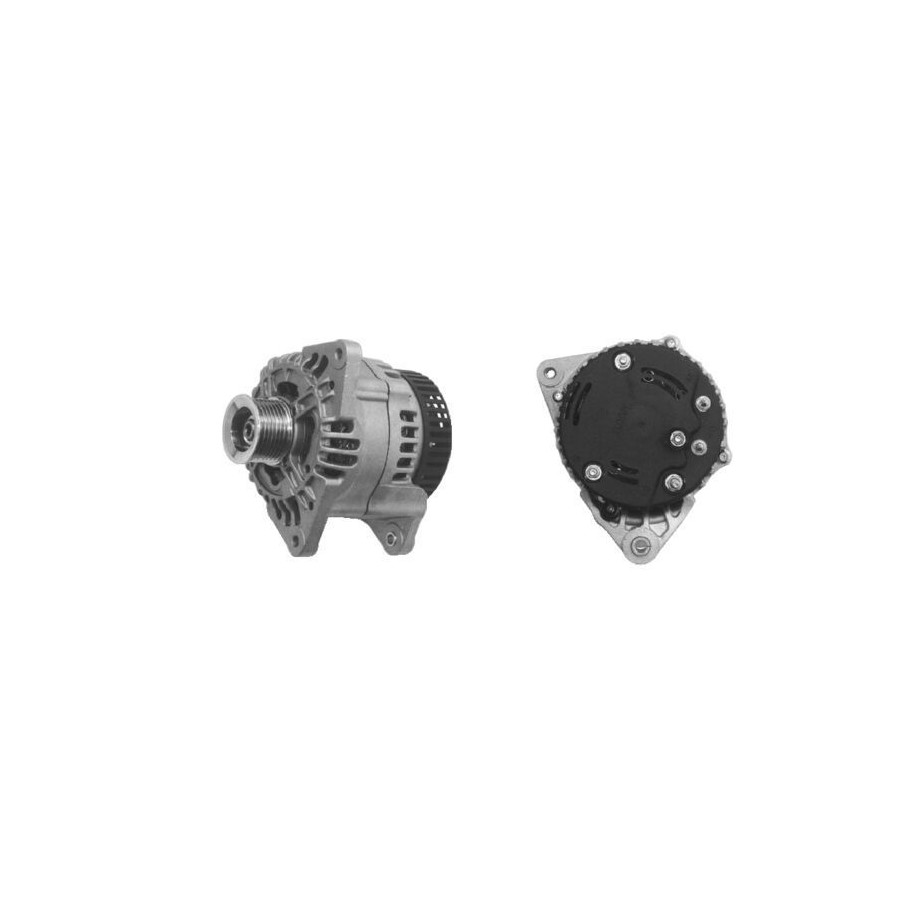

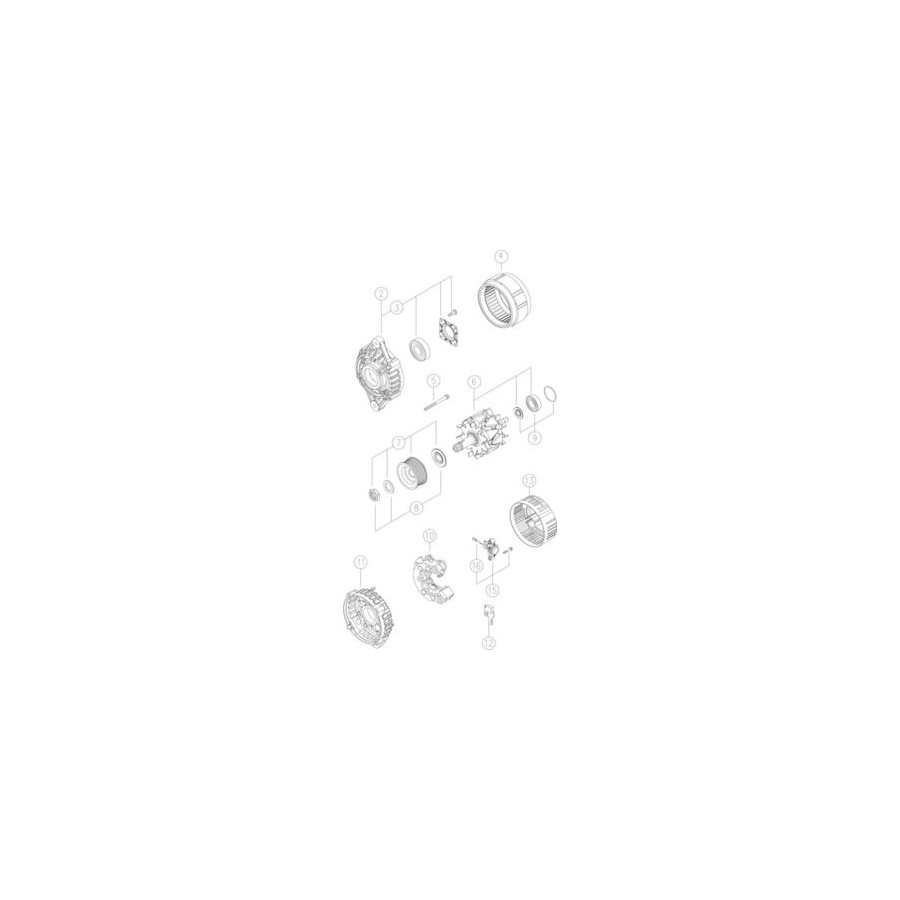

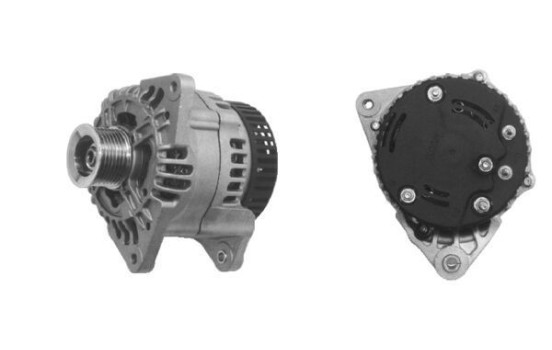

Dynamo Dynamo, Image 2 Dynamo, Image 3
  • Dynamo
  • Dynamo, Thumbnail 2
  • Dynamo, Thumbnail 3

Product number: 1450185

Manufacturer number: MG 552

EAN: 3838922062274

€ 307,51

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

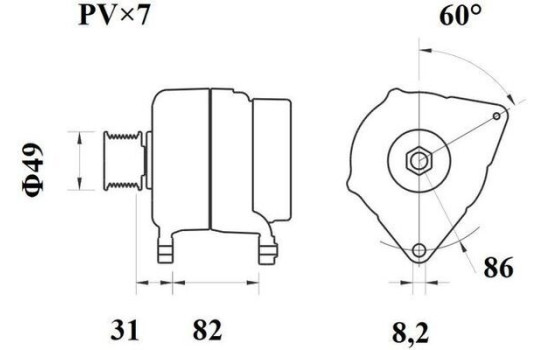

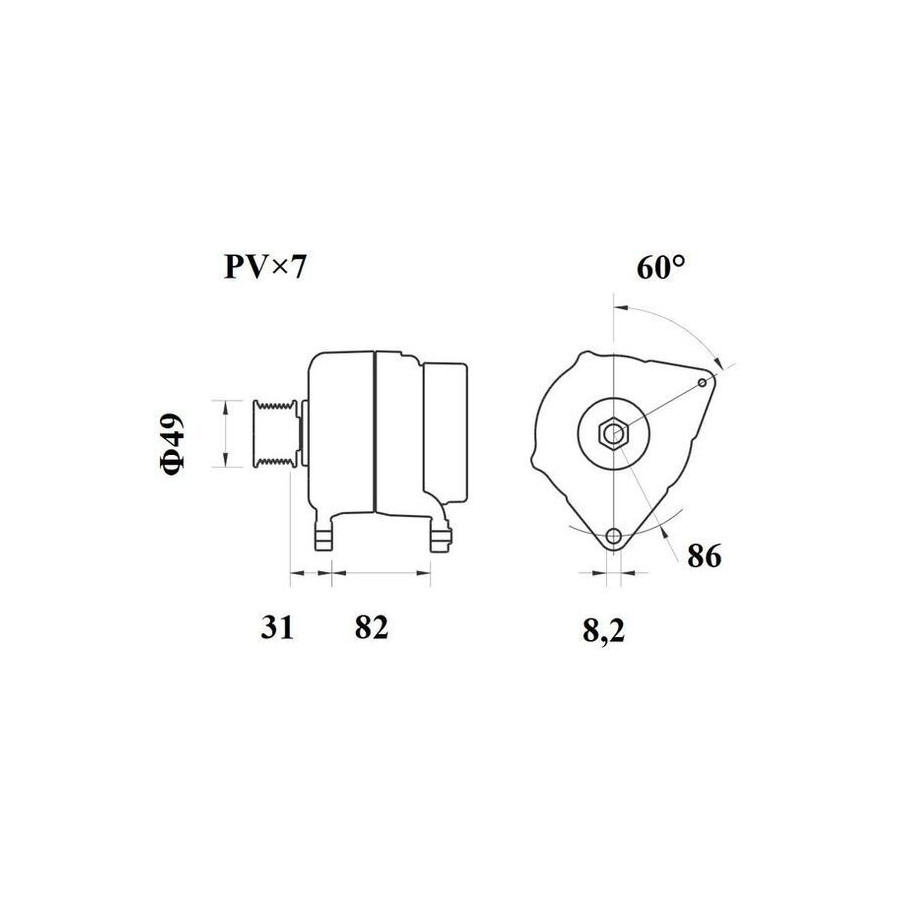

    Voltage [V]14
    Number of Ribs7
    Alternator Charge Current [A]100
    Belt Pulley Ø [mm]49
    PulleysWith v-ribbed belt pulley
    Mounting points diameter [mm]86,0
    Mounting bores distance [mm]82,0
    Distance from pulley to alternator [mm]31,0
    Number of belts7
    Rotation DirectionClockwise rotation
    Packaging length [cm]24,8
    Packaging width [cm]18,60
    Packaging height [cm]17,50
    Warranty2 years
    Dust CoverWith dust cover
    Connecting Angle [Degree]60,0
    Net Weight [g]5521
    Hole diameter [mm]8,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    ACAUTO AC-CBA1337
    ALANKO 10442165
    ANDEL ANM35807
    Airstal 20-0247
    BÖLK BOL-B021053
    CASCO CAL30160AS
    CEVAM 4615
    DA SILVA 011448
    DA SILVA JA011448
    DA SILVA MAQ0185
    DRI 2141141002
    EAI 56528
    ELSTOCK 28-3566
    FRIESEN 9090118
    HC-Cargo F 032 112 021
    Manufacturer Manufacturer number Price
    KAMOKA 8620458
    LE Part LEA0638
    LUCAS LRB00207
    MAHLE MG 552 (this product)
    MOTRIO 8550504962
    NAPA NAL2223
    NAPA NAL1108
    SNRA LR8001
    STARTCAR 528ST65
    TURBO MOTOR AL01721
    VALEO 437825
    WAI A134.185
    WAI 21810N
    WALKER WAL01248
    WILMINK GROUP WG2043846

  • Applicability

    LAND ROVER
    DISCOVERY I
    DISCOVERY I (LJ) | 06.1989-12.1998 2.5 TDI 4x4 - 2495ccm, 113pk, 83kw - 12 L, 17 L, 21 L
    RANGE ROVER
    RANGE ROVER Mk II (P38A) | 07.1994-03.2002 2.5 D 4x4 - 2497ccm, 136pk, 100kw - 25 6T (BMW)

  • Original part numbers

    AMR 5425 ROVER
    YLE 10113 ROVER
    YLE 10075 ROVER

  • Manufacturer

    Mahle

    Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment

    More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.

    At Winparts we offer the following products from Mahle, among others:
