Mahle

Dynamo

Dynamo Dynamo, Image 2 Dynamo, Image 3
  • Dynamo
  • Dynamo, Thumbnail 2
  • Dynamo, Thumbnail 3

Product number: 1450298

Manufacturer number: MG 830

EAN: 3838922098723

€ 531,78

Incl. VAT
View product specifications
Not available
  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

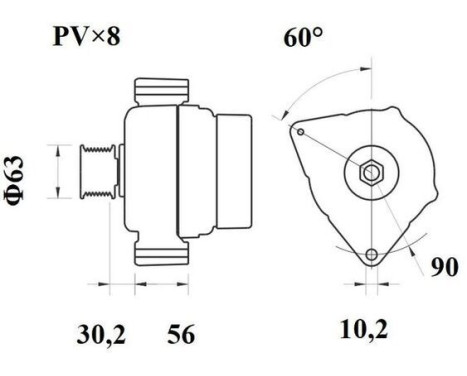

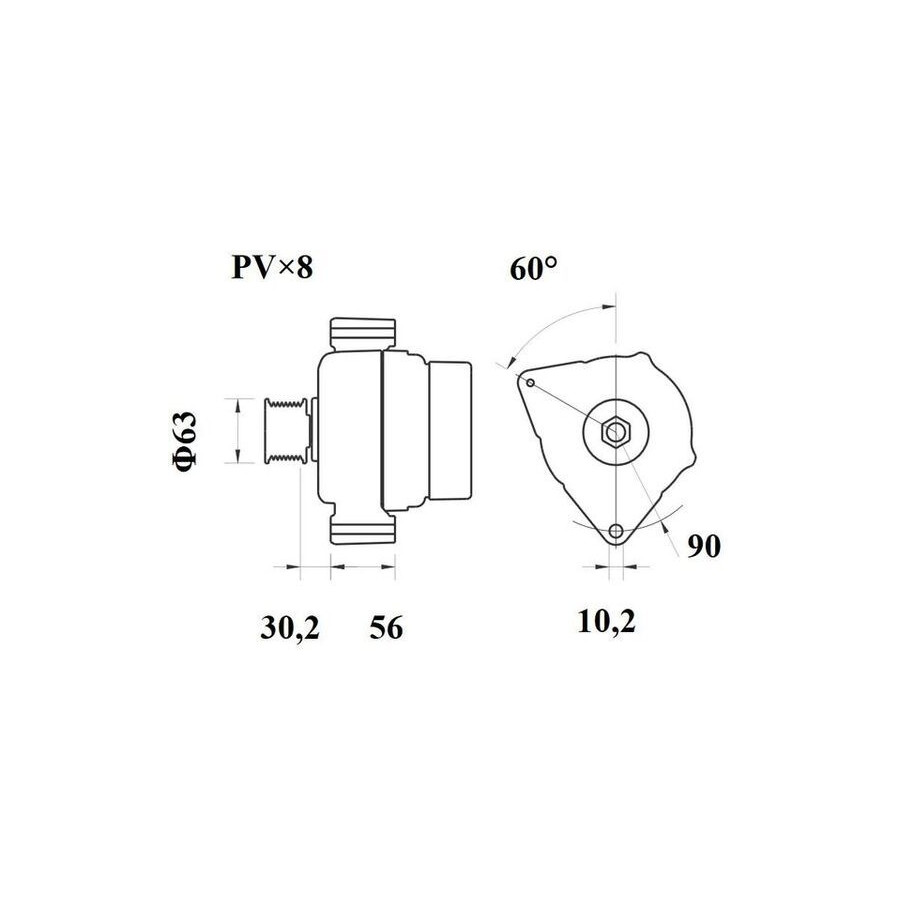

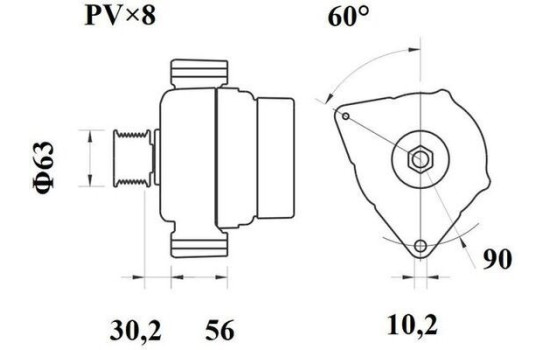

  • Specifications

    Voltage [V]14
    Number of Ribs8
    Alternator Charge Current [A]200
    Belt Pulley Ø [mm]63
    PulleysWith v-ribbed belt pulley
    Mounting points diameter [mm]90
    Mounting bores distance [mm]56
    Number of mounting bores1
    Connector / ClampW
    Distance from pulley to alternator [mm]30,2
    Rotation DirectionClockwise rotation
    Packaging length [cm]24,8
    Packaging width [cm]18,60
    Packaging height [cm]17,50
    Warranty2 years
    Dust CoverWith dust cover
    Compact Alternator
    Net Weight [g]7865
    Hole diameter [mm]10,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AES 695.537.200.310
    BTS Turbo G105182
    CASCO CAL21293GS
    CV PSH 695.537.200.310
    Manufacturer Manufacturer number Price
    DA SILVA 033078
    MAHLE MG 830 (this product)
    WAI 22287N
    WILMINK GROUP WG2044024

  • Applicability

    Universally applicable

  • Original part numbers

    3J03212261 KUBOTA
