Mahle

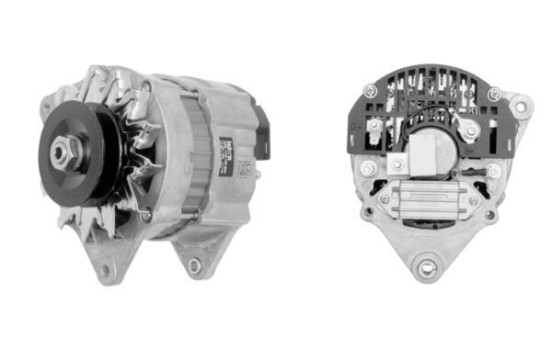

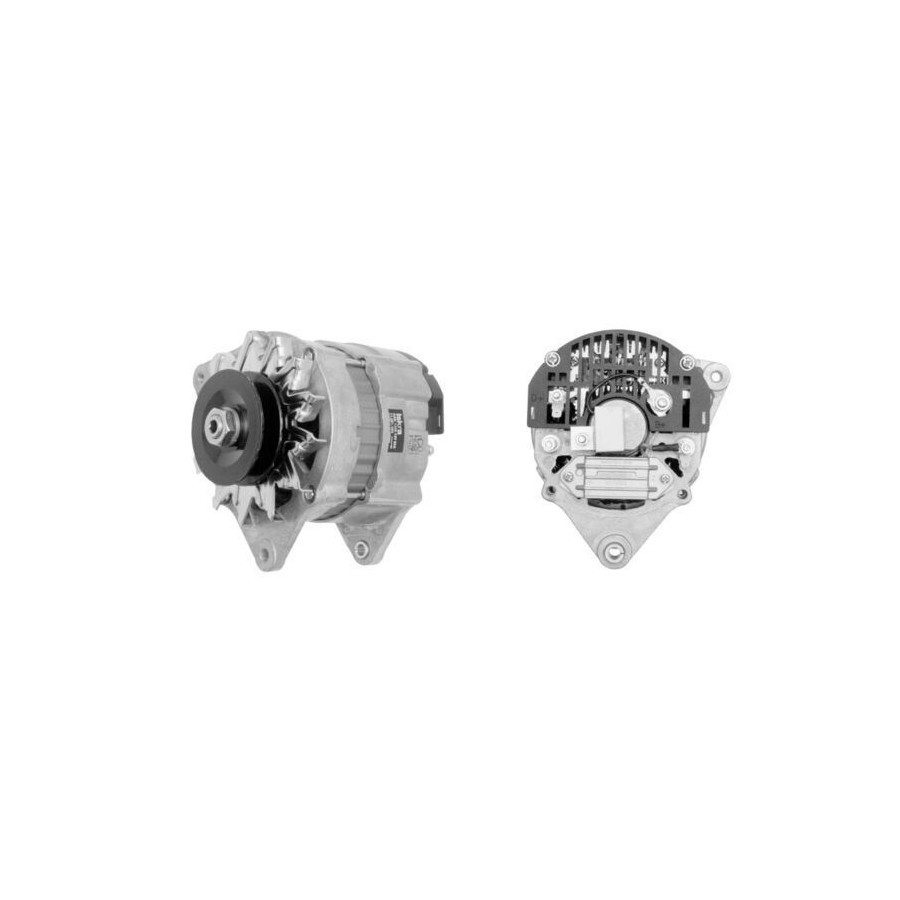

Dynamo

Dynamo Dynamo, Image 2 Dynamo, Image 3
  • Dynamo
  • Dynamo, Thumbnail 2
  • Dynamo, Thumbnail 3

Product number: 1450335

Manufacturer number: MG 424

EAN: 3838922094336

€ 308,11

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Voltage [V]14
    Number of Ribs1
    Alternator Charge Current [A]80

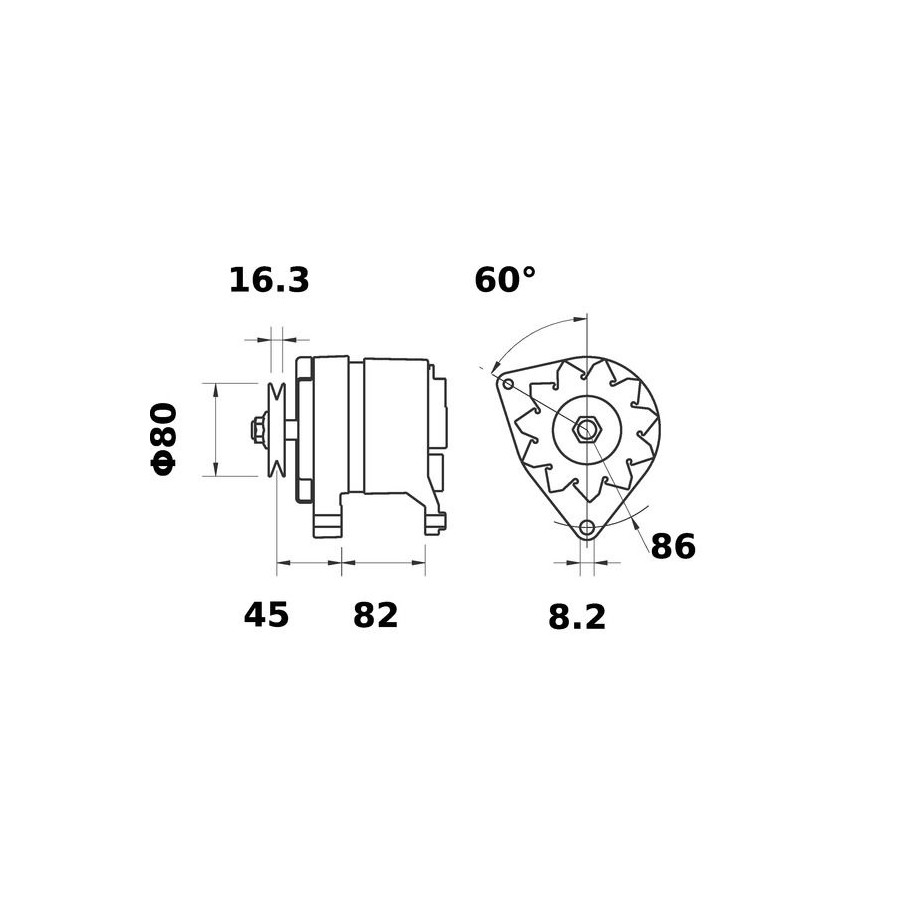

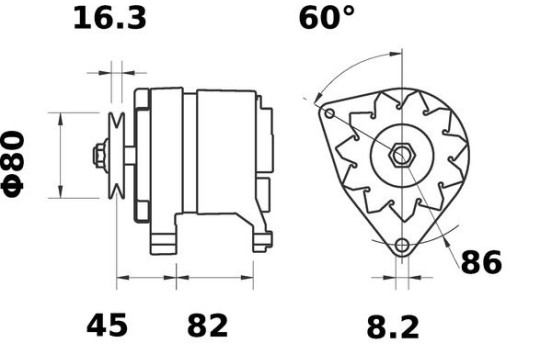

    Belt Pulley Ø [mm]80
    PulleysWith belt pulley
    Mounting points diameter [mm]86,0
    Mounting bores distance [mm]82,0
    Number of mounting bores2
    Connector / ClampW
    Distance from pulley to alternator [mm]45,0
    Number of belts1
    Rotation DirectionClockwise rotation
    Packaging length [cm]24,8
    Packaging width [cm]18,60
    Packaging height [cm]17,50
    Warranty2 years
    Dust CoverWith dust cover
    Net Weight [g]5310
    Hole diameter [mm]8,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    AD KÜHNER 554389RIM
    LE Part LEA1295
    Manufacturer Manufacturer number Price
    MAHLE MG 424 (this product)

  • Applicability

    Universally applicable

  • Original part numbers

    714/40317 JCB
