Brake Disc 16436 ABS
Diameter (mm): 258 Brake disc thickness (mm): 26 Minimum thickness (mm): 24.7 Height (mm): 49.5 Number of wheel bolts: 5 Brake disc type: Vented Hub diameter 1 [mm]: 64.5 Weight (kg): 5.42 Mounting: For Mounting: Rear
or .
| Number of Teeth | 9 |
| Rated Power [kW] | 3,1 |
| Number of mounting bores | 3 |
| Rotation Direction | Clockwise rotation |
| Voltage [V] | 12 |

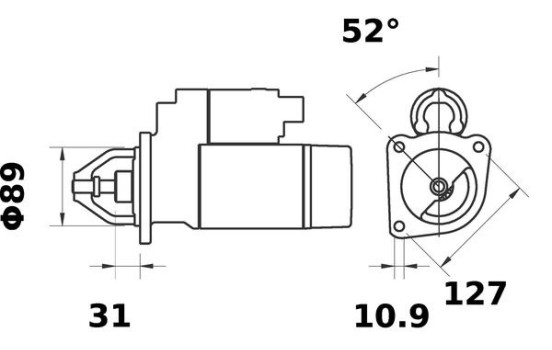

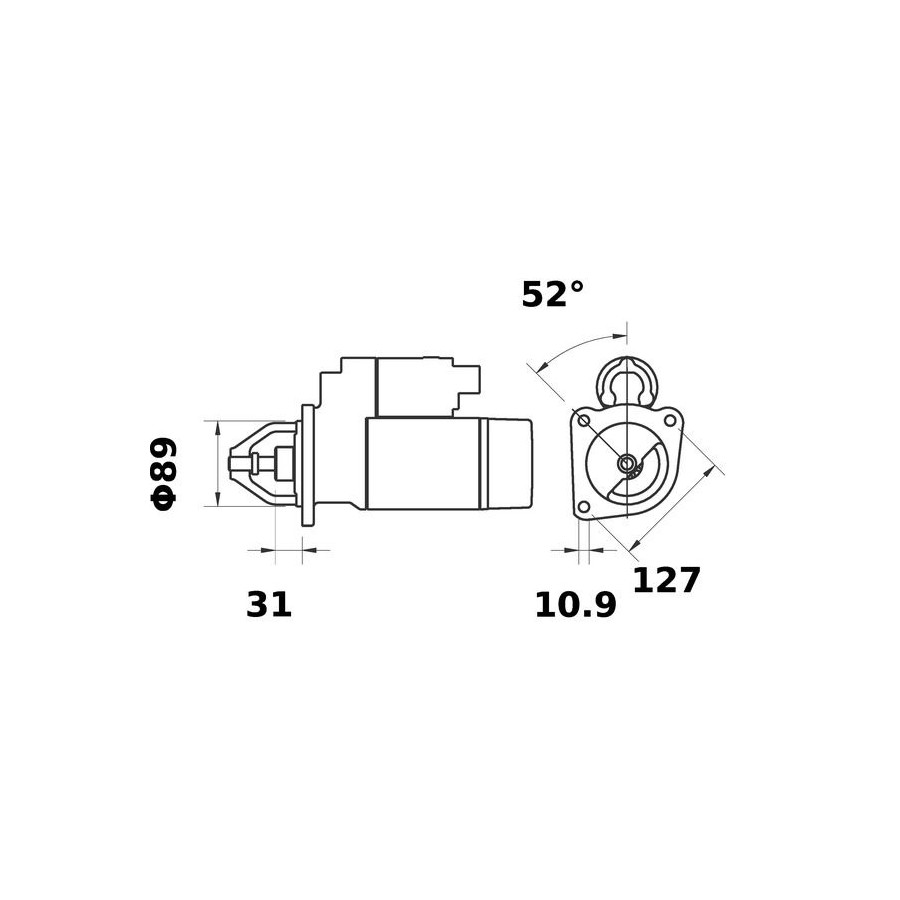

| Mounting points diameter [mm] | 127,0 |
| Packaging length [cm] | 38,2 |
| Packaging width [cm] | 21,50 |
| Packaging height [cm] | 14,50 |
| for flywheel depth [mm] | 31,0 |
| Warranty | 2 years |
| Tooth Pitch [mm] | 14,36 |
| Net Weight [g] | 13002 |
| Flange diameter [mm] | 89,0 |
| Hole diameter 1 [mm] | 10,9 |
| Manufacturer | Manufacturer number | Price |
|---|---|---|
| AD KÜHNER | 10887S | |
| AD KÜHNER | 10887M | |
| AD KÜHNER | 10887B | |
| AD KÜHNER | 10887 | |
| AES | 560.002.093.010 | |
| AES | 560.002.093.311 | |
| ANDEL | ANM18770X | |
| BTS Turbo | S100950 | |
| BTS Turbo | S104226 | |
| CASCO | CST10230AS | |
| CASCO | CST10230GS | |
| CV PSH | 560.002.093.010 | |
| CV PSH | 560.002.093.016 |
| Manufacturer | Manufacturer number | Price |
|---|---|---|
| CV PSH | 560.002.093.011 | |
| CV PSH | 560.002.093.311 | |
| DA SILVA | 042620 | |
| FARCOM | 103534 | |
| HC-Cargo | F 032 112 555 | |
| HELLA | 8EA 015 642-711 | |
| ITAB AUTOMOTIVE | 10010230AV | |
| ITAB AUTOMOTIVE | 10010230OV | |
| LE Part | LES0472 | |
| MAHLE | MS 308 | (this product) |
| PRESTOLITE ELECTRIC | M100R2014SE | |
| WAI | 18026N | |
| WILMINK GROUP | WG2045068 |
Universally applicable
| C000900060120 | AGCO |
|---|---|
| 0118 0928 | DEUTZ |
| F 119 900 060 010 | FENDT |
| 0117 9319 | DEUTZ |
| F 716 903 060 040 | FENDT |
| 0117 9318 | DEUTZ |
| 1179319 | DEUTZ |
| 0118 0805 | DEUTZ |
Mahle/ Knecht filters specializes in everything that has to do with the internal combustion engine and its immediate environment
More than 140 renowned motorcycle and vehicle manufacturers now equip their engines with MAHLE engine parts and filters as standard.
Expected delivery date:
09-05-2026
Secure payment
Diameter (mm): 258 Brake disc thickness (mm): 26 Minimum thickness (mm): 24.7 Height (mm): 49.5 Number of wheel bolts: 5 Brake disc type: Vented Hub diameter 1 [mm]: 64.5 Weight (kg): 5.42 Mounting: For Mounting: Rear
diameter (mm): 300 brake disc thickness (mm): 24
No specifications available yet
Diameter (mm): 316 Brake disc thickness (mm): 28 Minimum thickness (mm): 25,2 Height (mm): 46 Number of wheel bolts: 5 Brake disc type: Vented Hub diameter 1 [mm]: 67 Weight (kg): 9.11 Fitting : In front of
