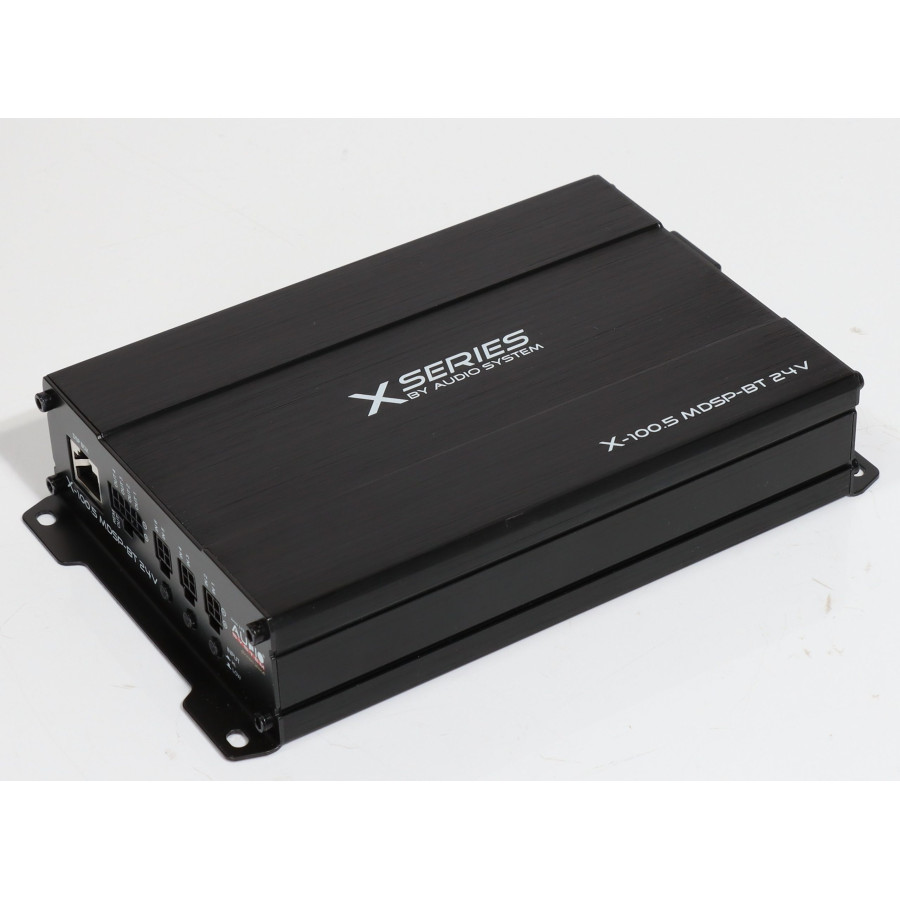

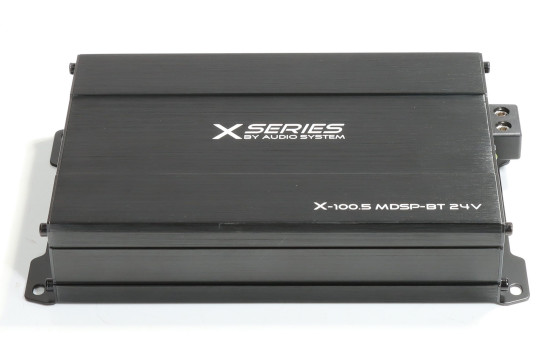

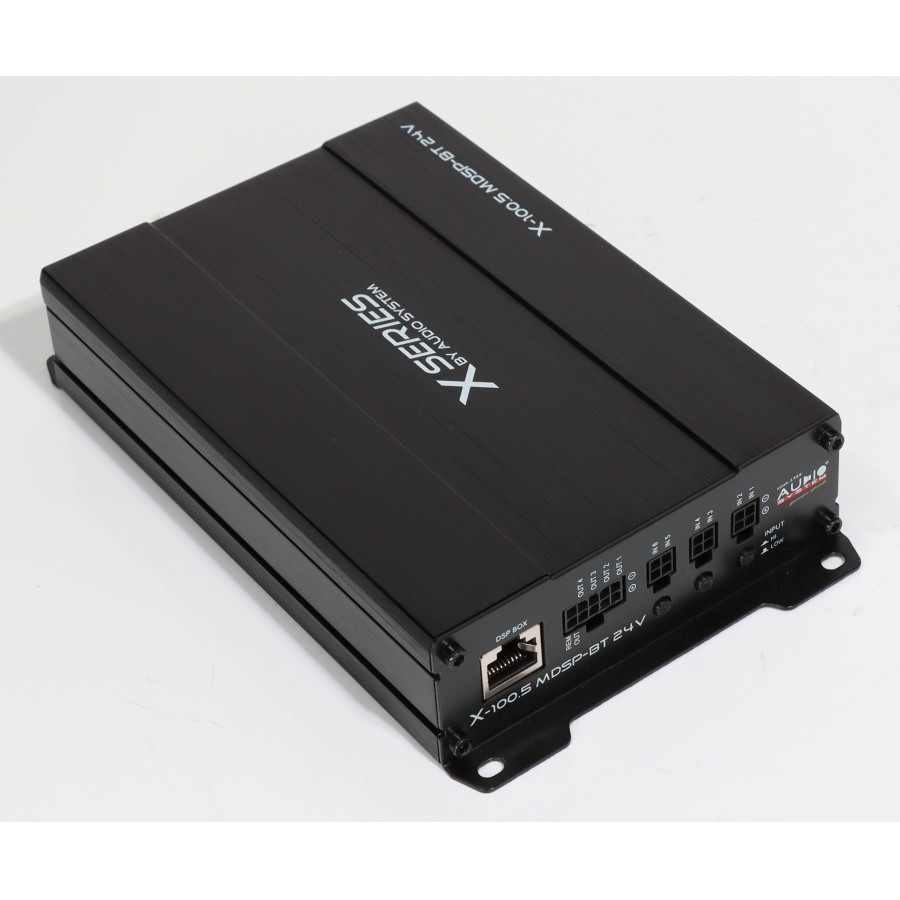

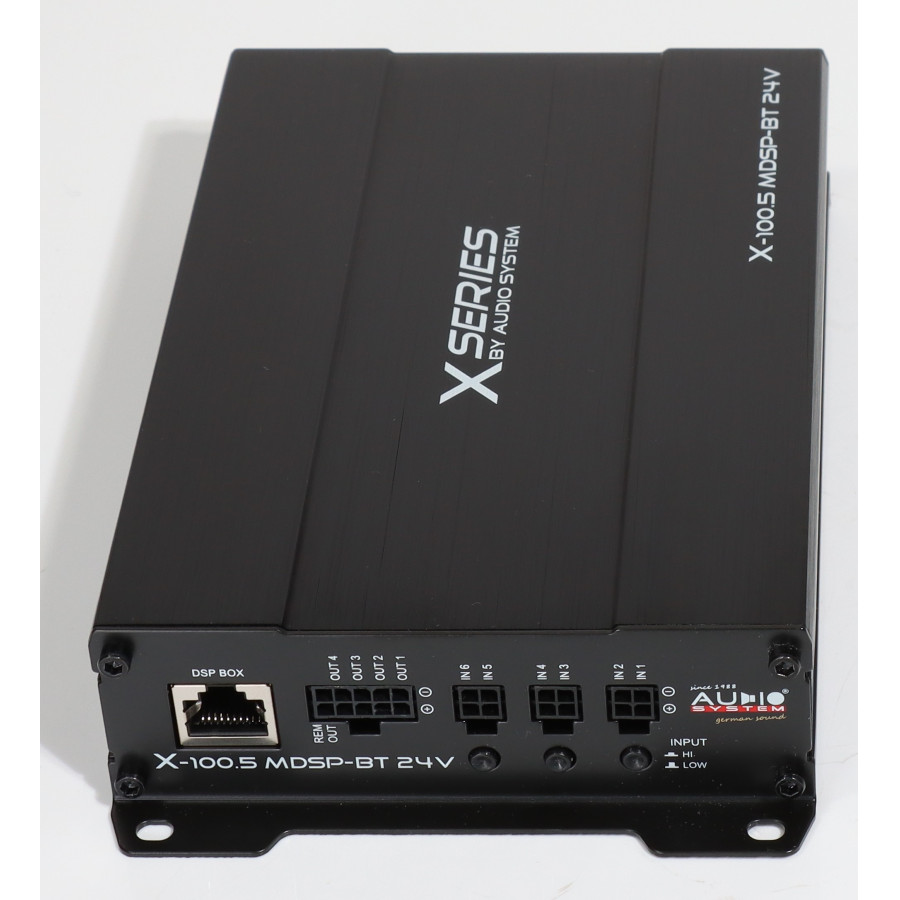

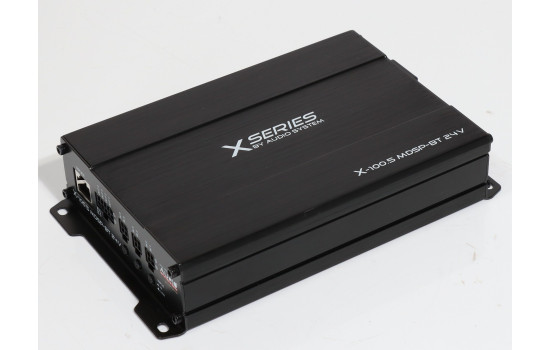

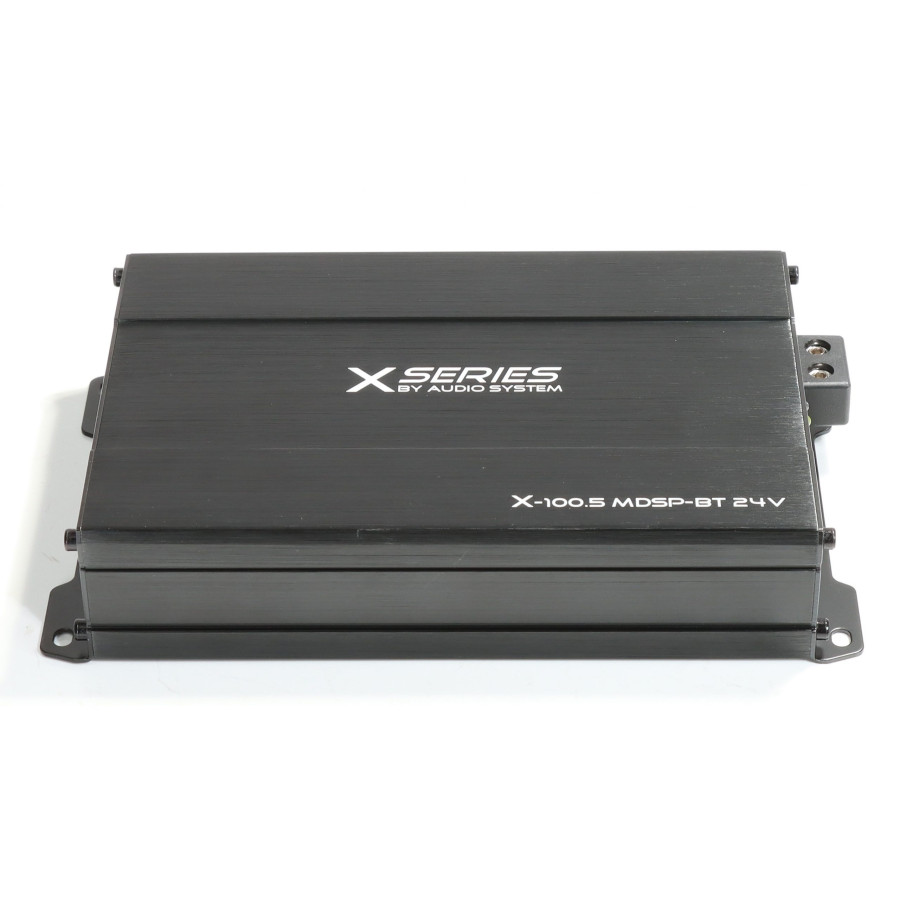

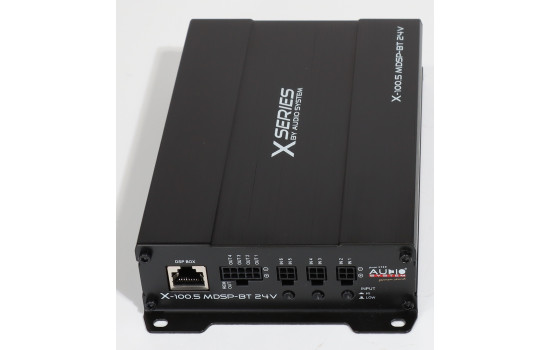

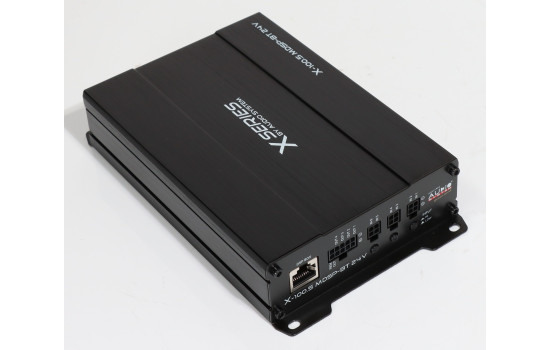

X-SERIES 5-channel amplifier with 9-channel DSP and BT 24 Volt
Universally applicable
Product number: 2104515
Manufacturer number: X-100.5 MDSP BT 24V
EAN: 4251834510586
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
-
Specifications
- 5-channel amplifier with 9-channel DSP and BT
- APP software adjustable via ANDROID-BT or iOS-BT
- 9-channel SIGMA DSP processor from ANALOG DEVICES with automatic UPDATE via WLAN
- 30x parametric EQs per channel
- 8x presets up to 48 dB slope
- 4x DSP-controlled RCA outputs (5 volts)
- 6x RCA inputs (low level 0.5 to 4 volts)
- 6x Molex high-level inputs (up to 12V) via BTL or SE signal detection with automatic switch-on
- 1x remote output
Signal to noise ratio ADC: 107 dB and DAC: 112 dB
Start/stop possible up to 18 volts/5 sec.
Operating voltage 20-32 volts
Operating temperature from -40 °C to + 85 °C
• 4x 100 WRMS at 4 Ohms
• 4x 140 WRMS at 2 Ohms
• 1x 30 WRMS at 4 Ohms
113 x 38 x 163 mm
Suitable for:
5-Channel
Output 590 Watt Number of channels 5 Warranty 2 years -
