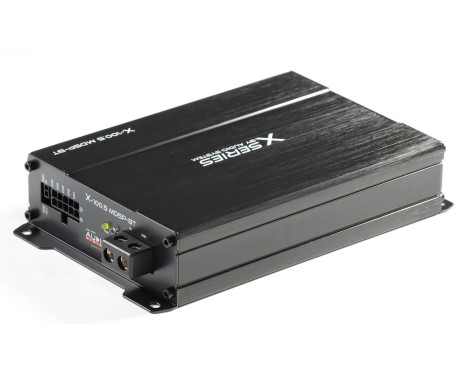

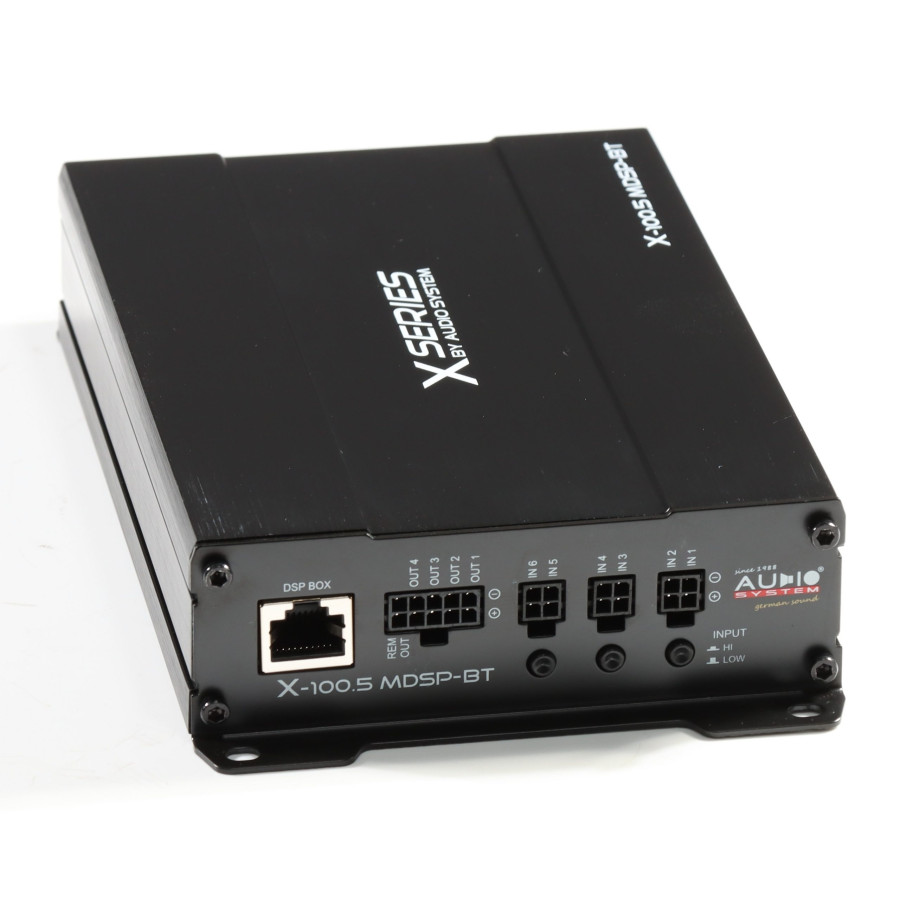

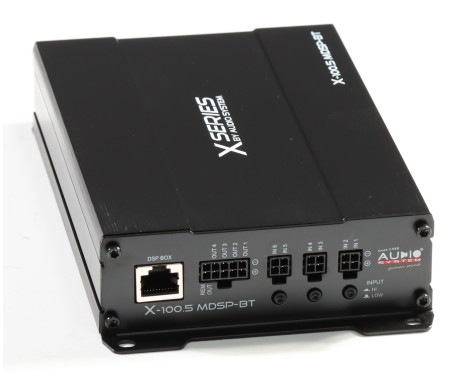

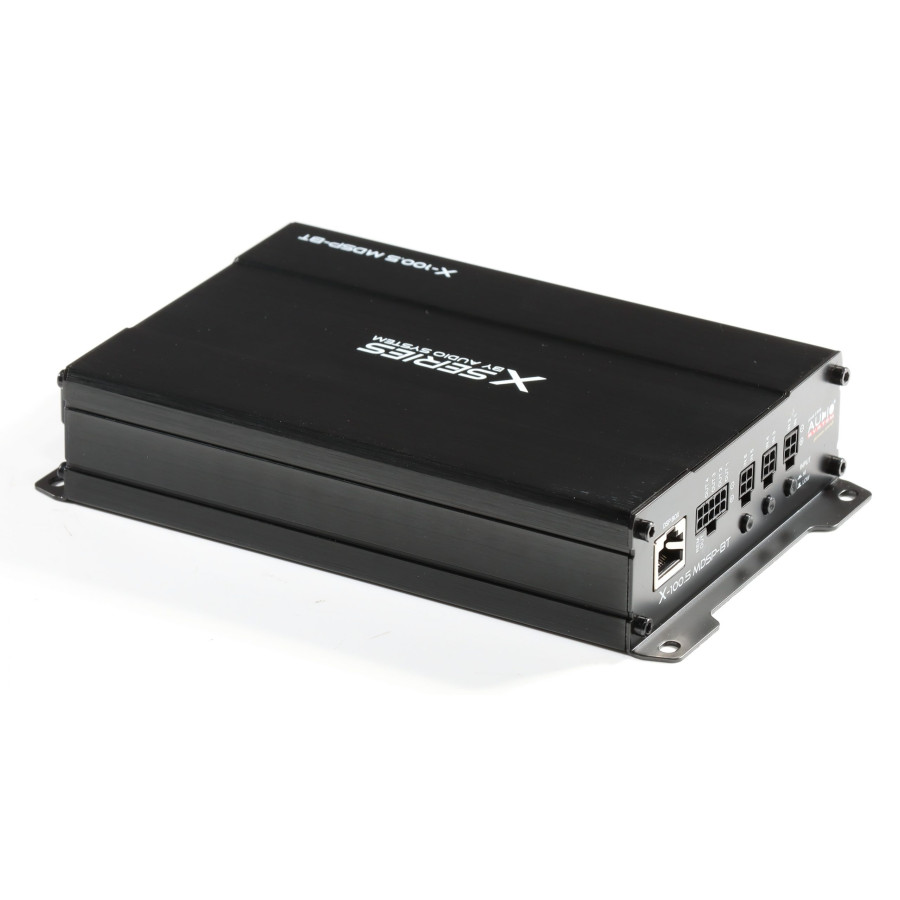

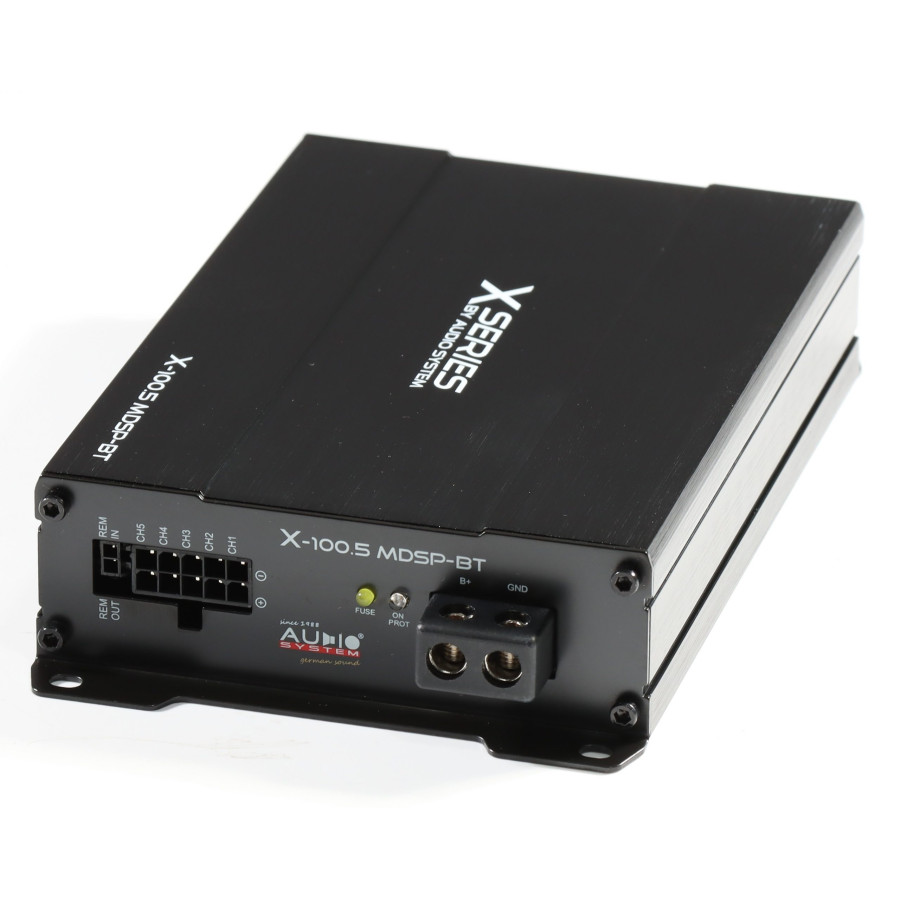

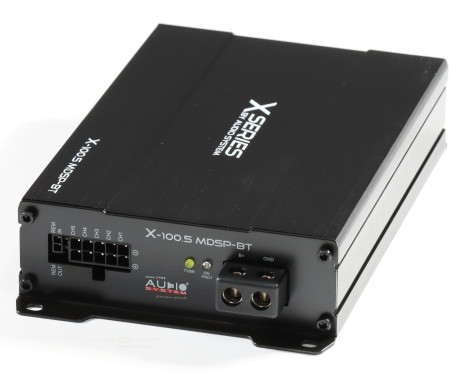

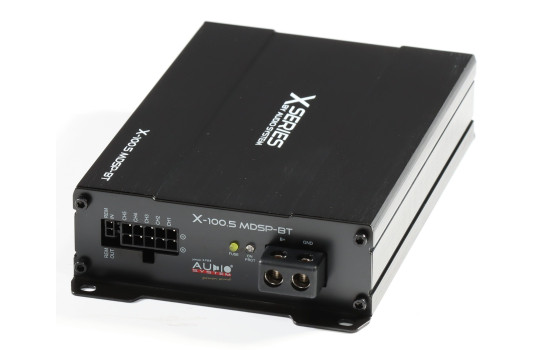

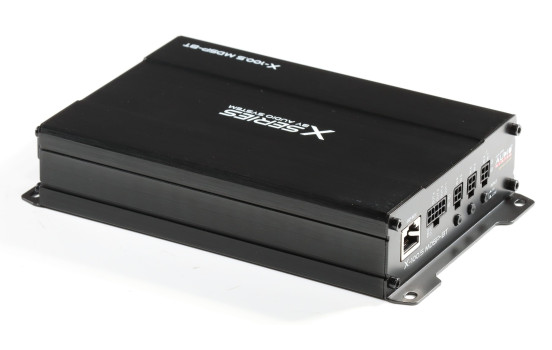

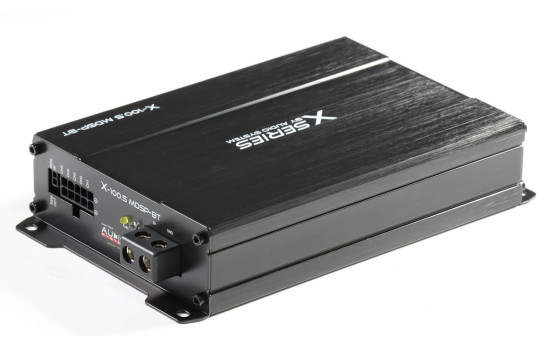

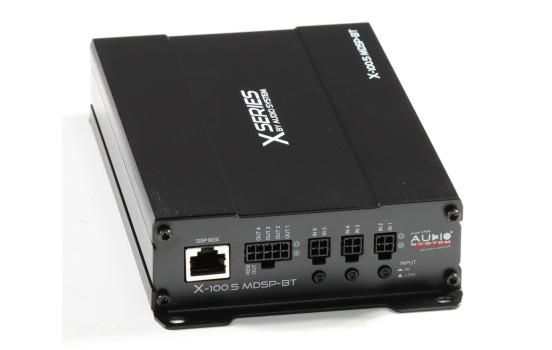

X-SERIES 5-channel amplifier with 9-channel DSP and BT

1. "APP" software adjustable via ANDROID-BT
2. 8-channel SIGMA DSP processor from ANALOG DEVICES automatic UPDATE via WLAN
3. 30x parametric EQs per channel
4. 8x presets up to 48 dB slope
5. 4x DSP-controlled RCA outputs (5 volts)
6. 1x AUX input, 4x RCA inputs (low level 0.5 to 4 volts)
7. 4x Molex high level inputs (5 to 20 volts) via BTL or SE signal detection with automatic switch-on
8. 1x remote output

frequency range: 10-24000 Hz
signal-to-noise ratio ADC: 107 dB and DAC: 112 dB
start/stop possible up to 6 volts/5 sec
operating voltage 9.6-18 volts

operating temperature from -40C° to +85C°

113x38x163 mm

4x 100(150) WRMS at 4(2) ohms + 1x 40(60) WRMS at 4(2) ohms.

Suitable for:
5-Channel

---

Output	640 watts
Number of channels	5
Warranty	2 years
