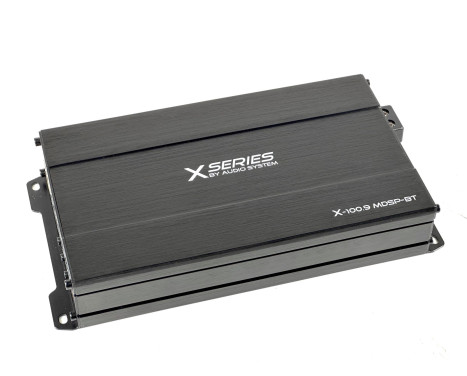

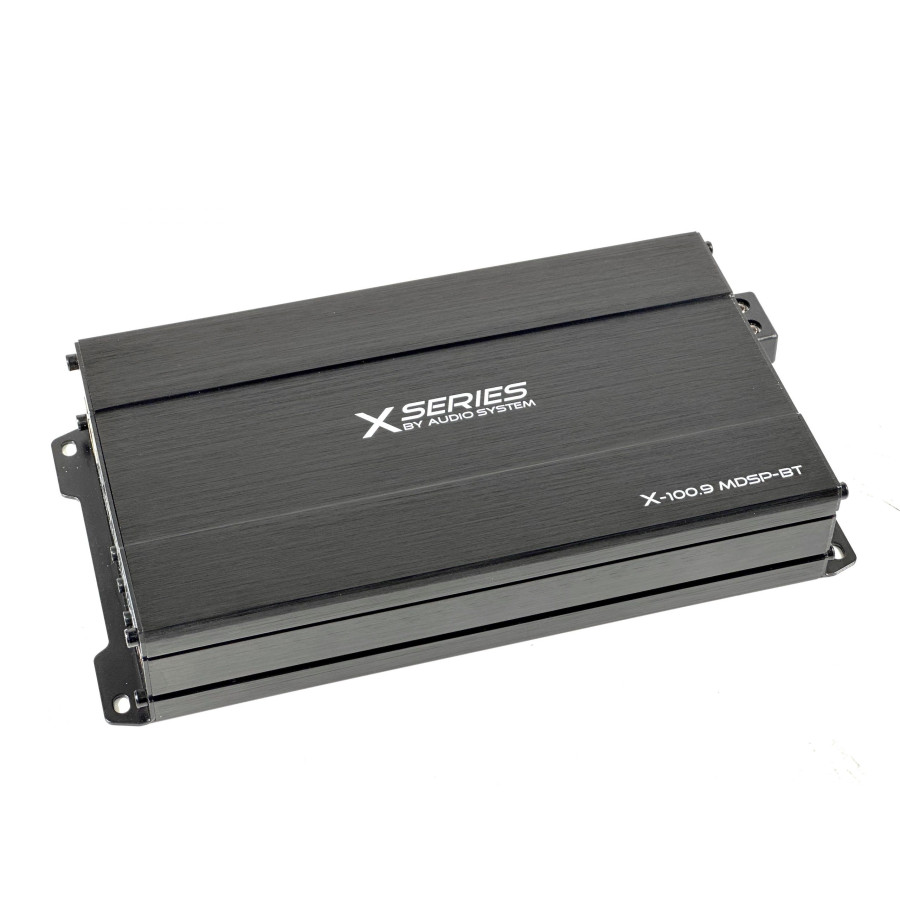

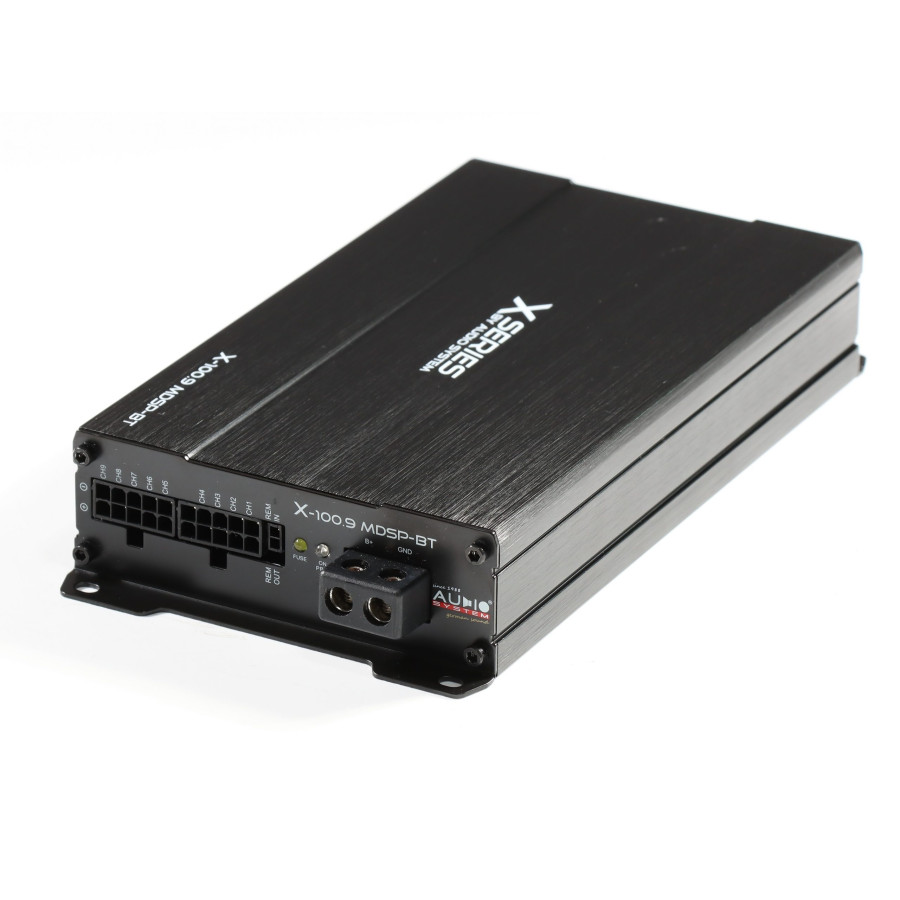

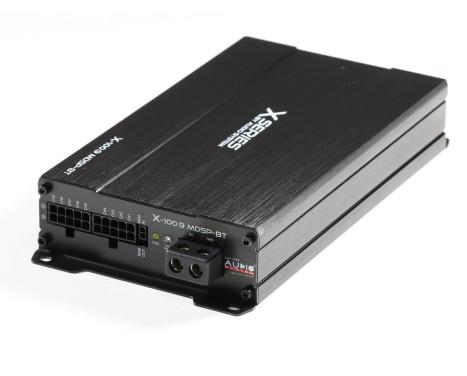

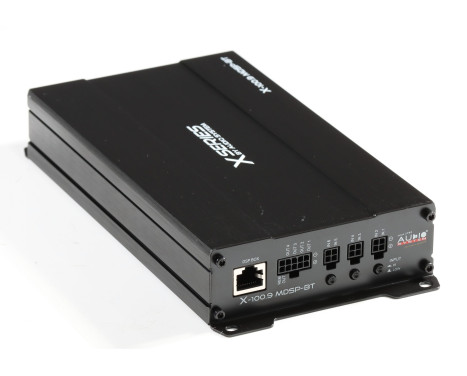

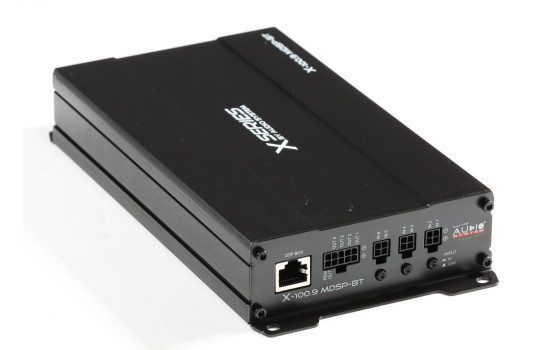

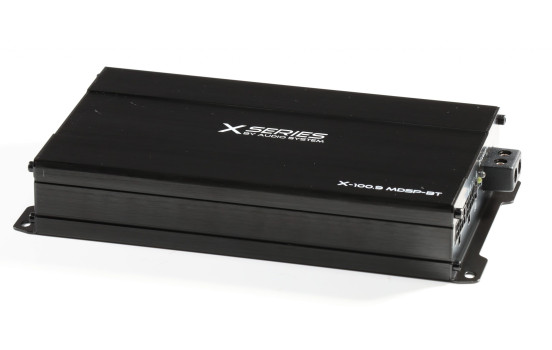

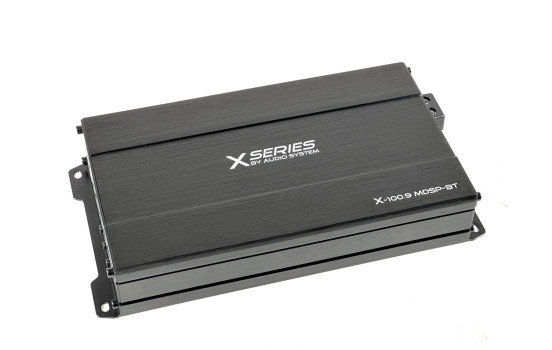

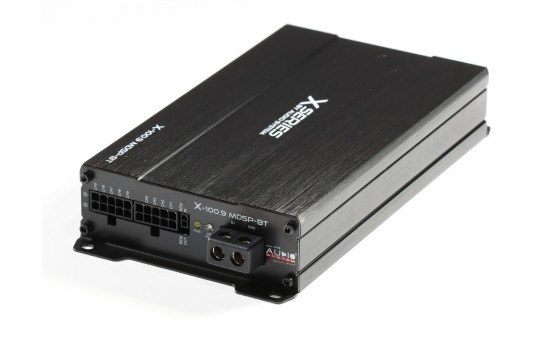

X-SERIES 9-channel amplifier with 13-channel DSP and BT

1. 9-channel amplifier with 13-channel DSP and BT
2. APP Software adjustable via ANDROID-BT or iOS-BT
3. 13-channel SIGMA DSP processor from ANALOG DEVICES with automatic update via WLAN
4. 30x parametric EQs per channel
5. 8x presets up to 48 dB slope
6. 4x DSP controlled RCA outputs (5 Volt)
7. 6x RCA inputs (Low level 0.5 to 4 volts)
8. 6x Molex high-level inputs (up to 12V) via BTL or SE signal reduction with automatic switch-on
9. 1x remote output

Frequency range: 10-24000 Hz
Signal to noise ratio ADC: 107 dB and DAC: 112 dB
Start/stop possible up to 6 volts/5 sec
Operating voltage 10-16 volts
Operating temperature from -40C° to + 85C°.

• 8x 100 WRMS at 4 Ohm
• 8x 140 WRMS at 2 Ohms
• 1x 30 WRMS at 4 Ohm

113 x 38 x 193 mm

Suitable for:
9-Channel
