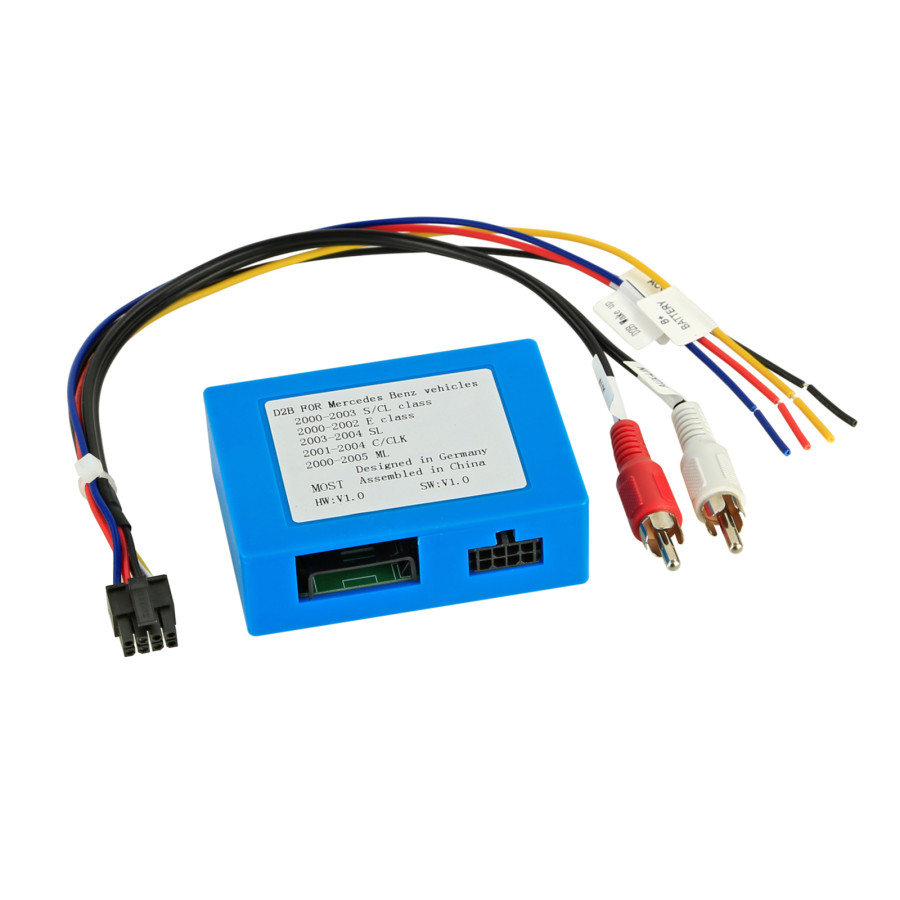

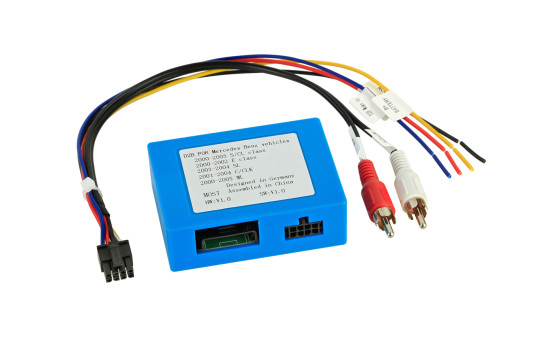

Active System Adapter Mercedes Benz various vehicles D2B>Cinch

remark:

Connection: OEM sound system D2B > Cinch(m) red/white

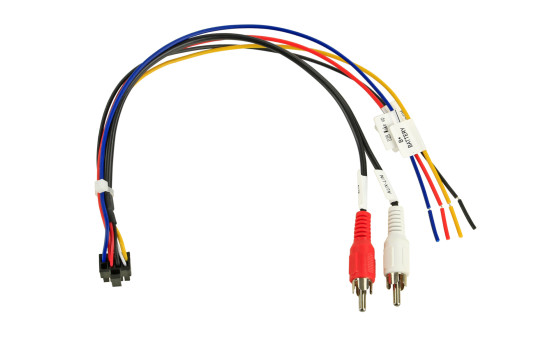

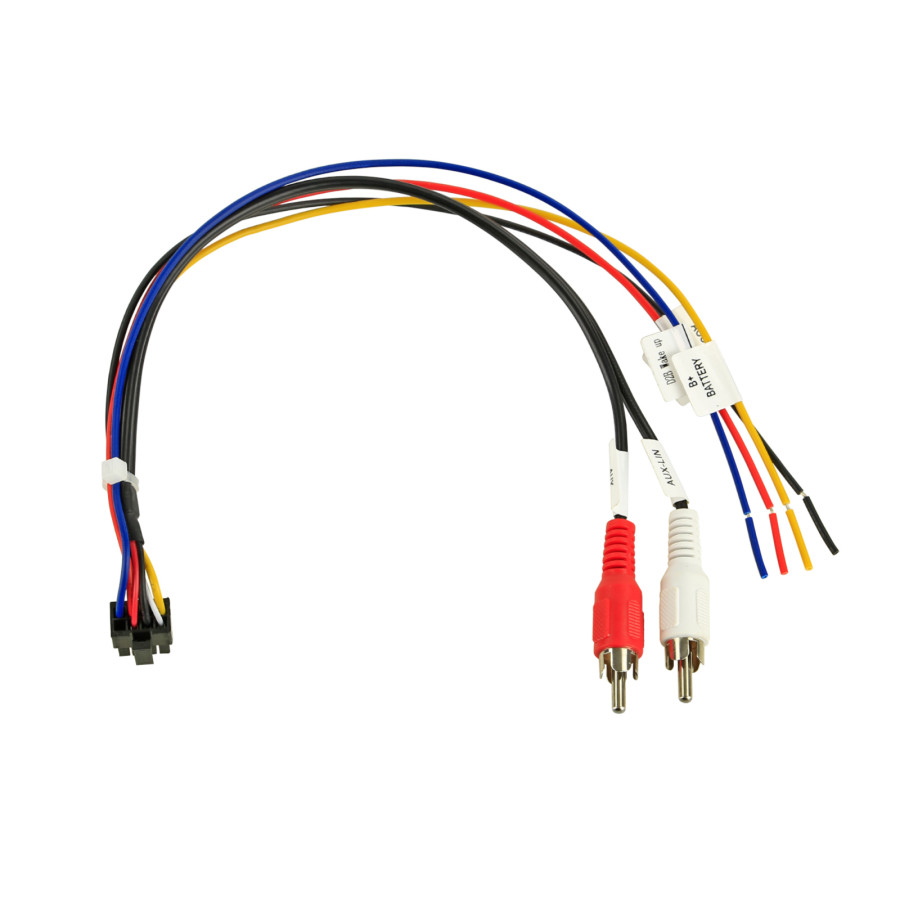

Connection: loose cable

Remove CD changer / TV tuner / phone module / navigation module and other components and close the D2B ring:
Fiber optic connector D2B ring > Article: 771000-2104
OEM Mercedes A0005453384

Vehicles with ISO/18 pin AMP connector
Vehicles with ISO/10 pin Mini-ISO connector

Vehicles with Comand 2.0 / 2.5 OEM navigation
Vehicles with Audio 10 / Audio 30 OEM unit with ISO / 10 Pin ISO connector
Vehicles with D2B OEM Fiber Optic Sound System

Vehicles without a 40-pin Quadlock connector

Japan Reimport Vehicles not all software variants supported

Vehicles without Audio 50 Comand NTG1 / NTG2 / NTG 2.5 / NTG3 OEM Sat Nav.
Vehicles without MOST25 fiber optic system

yellow: +12V continuous current terminal 30
black: ground terminal 31
red: +12V switched ignition current terminal +15
blue: Amp data output > D2B wakeup connector
blue: no +12V input

Mercedes SL-Class (R230) 08/2001 - 02/2006 > delayed sound after switching on: connect CD changer fiber optic

Vehicles with Comand 2.0 / 2.5 OEM Navigation CD changer:
CD changer +12V remote / terminal +15
8-pin C1 connector > pin 6
Ground CD changer / clamp 31
8-pin C1 connector > pin 5
check with OEM head unit for installation

Vehicles with Audio 10 / Audio 30 OEM unit / 10-pin ISO connector
CD changer +12V remote / terminal +15
10-pin ISO connector > pin 5
Ground CD changer / clamp 31
10-pin ISO connector > pin 6
Check with OEM head unit before installation

Cinch(m) red/white > RCA autoput front of aftermarket radio:
Fader function is not supported

Suitable for the following vehicles:

Mercedes C-Class (W203) 03/2000 - 01/2005
Mercedes CL-Class (C215) 06/1999 - 09/2002
Mercedes CLK-Class (C209) 03/2002 - 07/2004
Mercedes E-class (W210) 006/1999 - 12/2002
Mercedes ML (W163) 06/2001 - 07/2005
Mercedes M-Class (W163) 06/2001 - 07/2005
Mercedes S-Class (W220) 11/1998 - 09/2005
Mercedes SL-Class (R230) 08/2001 - 02/2006
Mercedes SLK (R170) 03/2000 - 01/2004

Option:

SWI Mercedes various vehicles ISO/10pin ISO: 42a-1190-001
SWI various vehicles universal CAN Bus: 42-1000-001


Suitable for:
Mercedes Benz C-Class 2000-2005 (203)
Mercedes Benz CL-Class 1999-2002 (215)
Mercedes Benz CLK-Class 2002-2005 (209)
Mercedes Benz E-class 1999-2002 (210)
Mercedes Benz M-Class 2001-2005 (163)
Mercedes Benz S-Class 1998-2005 (220)
Mercedes Benz SL-Class 2001-2006 (230)
Mercedes Benz SLK-Class 2000-2004 (170)

---

for brand	ISO
Warranty	2 years
