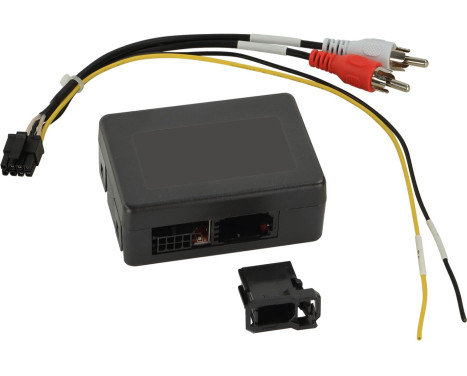

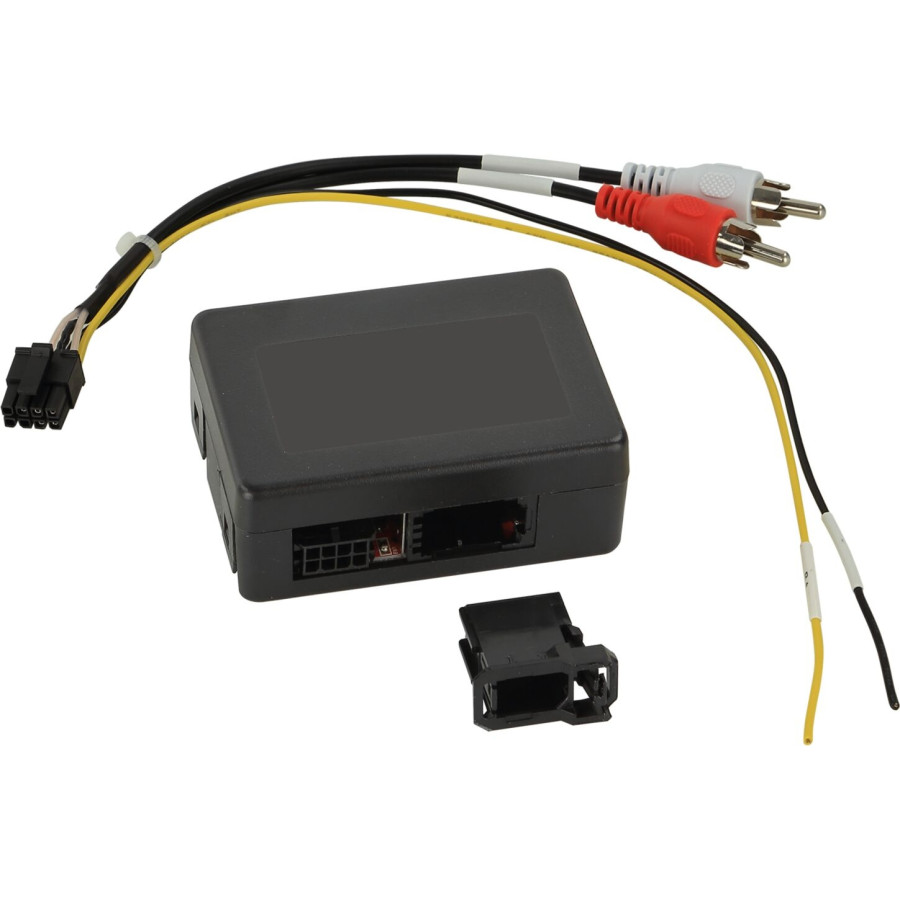

Active System Adapter Most-Analog Mercedes audio gateway

Active system adapter for fiber optic systems of Mercedes and Porsche vehicles
This adapter allows a retrofit radio with RCA preamp outputs to be installed while retaining the OEM MOST (fiber optic) amplifier.

Remark:

Connection: OEM sound system MOST(m) > Cinch red/white
Connection: loose cable

Vehicles with MOST25 OEM sound system
Vehicles with audio gateway
Vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Navigation

Vehicles Mercedes SL-Class (R230) 03/2006-12/2011 not compatible

Vehicles without Comand 2.0 / 2.5 OEM Navigation
Vehicles without D2B Optical Bus System

yellow: +12V continuous power terminal 30
black: Ground terminal 31

Cinch(m) red/white > preamplifier output retrofit radio
Fader function not supported

In case of defects:
OEM additional components > Remove CD changer / TV tuner / telephone module from the MOST ring.
Fiber optic connector MOST ring > Article: 771000-2100
Fiber optic loop (f) MOST ring > Article: 771000-2101

Suitable for the following vehicles:

Mercedes
Mercedes CL-Class (C215) 02/2004 - 08/2006*
Mercedes CLS (C219) 10/2004 - 06/2008
Mercedes E-class (S211/W211) 03/2002 - 02/2008
Mercedes S-Class (W220) 02/2004 - 09/2005
Mercedes SLK-Class (R171) 03/2004 - 03/2008

*cars with Comand OEM navigation with 1 rotary knob on the left / shift paddle on the right
*Vehicles without Comand OEM navigation with 2 rotary knobs left/right

Suitable for:
Bose
Mercedes Benz CL-Class 2004-2006 (215)
Mercedes Benz CLS-Class 2004-2008 (219)
Mercedes Benz S-Class 2004-2005 (220)
Mercedes Benz SLK-Class 2004-2008 (171)
Mercedes Benz E-Class 2002-2008 (211)

---

Suitable for	ISO
Warranty	2 years
