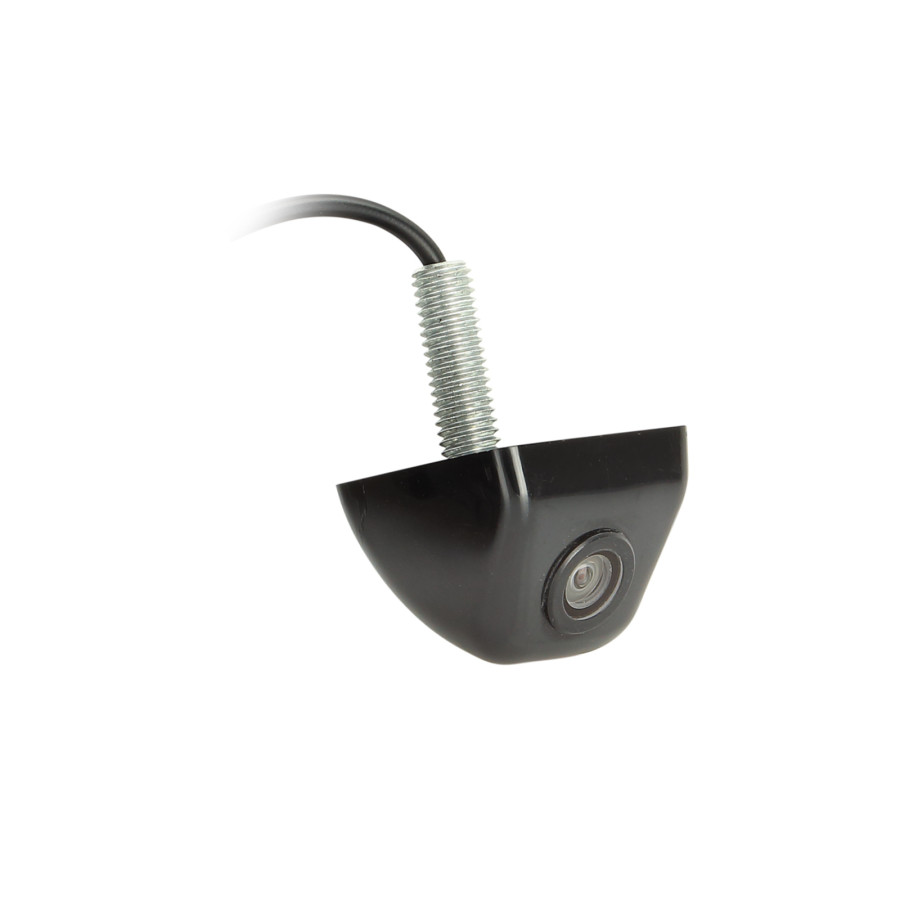

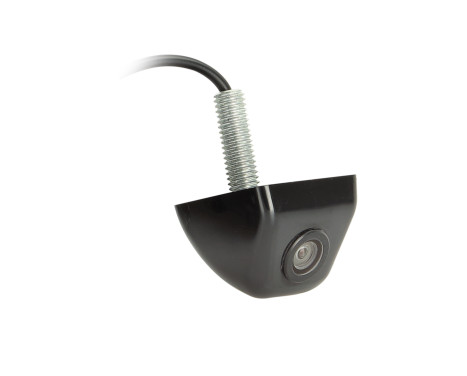

Mini black under-mounted NTSC reversing camera with image lines

Product description
The universal square rearview camera is the ideal solution for car mechanics looking for a reliable and versatile backup camera. This camera is easy to install and suitable for a wide range of vehicle types.

Benefits of the reversing camera
Universal compatibility: The camera can be used in a variety of vehicle models, making it a flexible choice for garages.
Easy installation: thanks to the square base, the camera can be mounted quickly and easily.
Rugged design: The camera is designed for use in various weather conditions and has a long service life.
Technical details
The camera offers clear image quality and is compatible with most monitors. It's ideal for use in various types of vehicles and provides reliable support when reversing.

Technical data
General specifications
Shape: square
Mounting type: undermount
Color: black
Material: plastic
Dimensions: L / W / H - 26 mm / 29 mm / 21 mm
Dust and waterproof: IP68

Electrical specifications
Camera operating voltage: +3 V DC
Camera supply voltage: +12 V / +24 V DC > with voltage converter
Current consumption: 90 mA
Operating temperature range: -30 °C - 75 °C
Storage temperature: -40 °C - 80 °C
Optical specifications
Sensor type: 1/4" CMOS
Image system: NTSC color
Effective pixels: 682 x 496
Lens: 1.9mm / F 2.0
Min. lux: 0.3 lux
Resolution: 480 TV lines
Lens angle: diagonal 170°
Viewing angle: horizontal 120° vertical 85° +5°

Connections
Connection: red: +12V / +24V switched, load-stable protected, black: body earth direct/GND, cinch(m) yellow: video
Connection: 4-pin ACV system plug(m) Ø5.2 mm
Connection cable to the camera 1 m +/-: 4-pin ACV system plug (m) Ø 5.2 mm, 1 jumper
Voltage converter +3 V: 4-pin ACV system plug (v) Ø 10 mm / 4-pin ACV system plug (m) Ø 5.2 mm
Extension cable 6.5 m +/-: 4-pin ACV system plug (female) Ø 10 mm / 4-pin ACV system plug (male) Ø 5.2 mm, power cable red 3 m +/- jumpered: connection on camera / reversing light connection on monitor, earth cable/GND black 3 m +/- jumpered: connection body size/GND on camera / connection body size/GND directly on monitor

Connection cable 20 cm +/-: 4-pin ACV system plug (female) Ø10 mm, red: power supply, black: ground/GND, cinch (male) yellow: video

Features
With orientation lines
Jumper: green: activate/deactivate orientation lines
Extras: orientation lines via jumper

Installation instructions
Before installation > Check the viewing angle and alignment of the camera at the installation location using a test monitor
Installation accessories: Camera connection to interfaces: electronic closing relay 2V-12V/1.5A max > Article: 40-AD-REMOTE, Camera connection to reversing light: Reversing camera voltage stabilizer reversing signal > Article: 771000-6100
Optional accessories: 5m ACV camera extension cable > Item: 771000-6305, 10m ACV camera extension cable > Item: 771000-6310, 15m ACV camera extension cable > Item: 771000-6315

Important information
ACV cameras are suitable for continuous use
Connection without voltage converter +3V included in the scope of delivery will damage the camera

Suitable for:
Universal Various models Various years

---

application	Ready
Warranty	2 years
