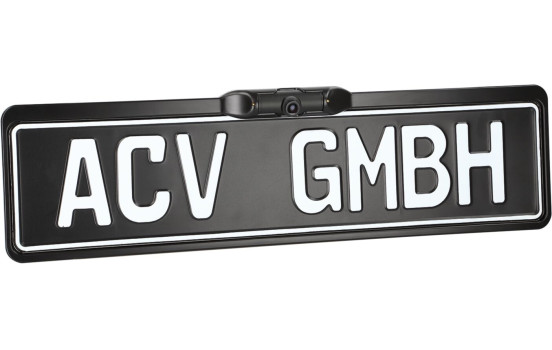

Rear view camera (license plate) - 1/4" SONY CCD NTSC camera. Incl. 7 meter RCA output

Universally applicable

Rear view camera (license plate) - 1/4" SONY CCD NTSC camera. Incl. 7 meter RCA output Rear view camera (license plate) - 1/4" SONY CCD NTSC camera. Incl. 7 meter RCA output, Image 2
  • Rear view camera (license plate) - 1/4" SONY CCD NTSC camera. Incl. 7 meter RCA output
  • Rear view camera (license plate) - 1/4" SONY CCD NTSC camera. Incl. 7 meter RCA output, Thumbnail 2

Product number: 1688358

Manufacturer number: 771000-6040

EAN: 4026724031867

€ 195,16

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Product Features Camera:
    - Construction: plastic
    - Color: matt black
    - Extras: license plate holder, image lines via jumpers
    - Sensor type: 1/4" SONY CCD
    - Image system: NTSC color
    - Effective pixels: 768x494
    - Lens: 1.9mm / F 2.0
    - Minimum illumination: 0.1 lux
    - Resolution: 600 TV lines
    - Viewing angle: 110 °
    - Viewing angle: horizontal 105° vertical 75° + 5°
    - Dust and water protected: IP67
    - Connection: 4-pin mini plug 5.2 mm
    - Supply voltage: 12V + 10%
    - Current consumption: 100mA
    - Operating temperature range: -30°C - 75°C
    - Storage temperature: -40 ° C - 85 ° C
    - Dimensions: L/W/H - 538mm/143mm/28mm

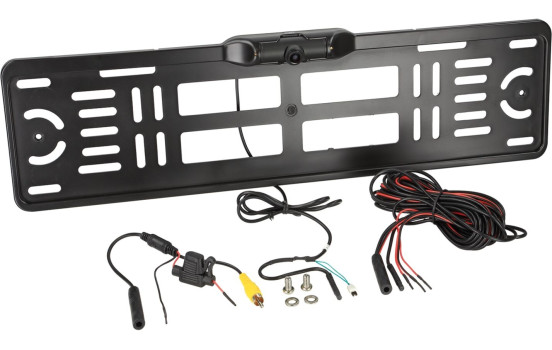

    Connection cable to the camera:
    1 meter cable with 4-pin mini plug 5.2 mm
    Harness:
    - 1 meter cable with 4-pin mini plug incl. 1 jumper
    - 6.5 meter extension including 3 meter power cable for connection to the reversing light
    and via wiring to the connection cable on the terminal
    4-pin minibus 10mm and plug 5.2mm
    - 0.2 meter power cable incl. fuse and video connection cable (RCA)
    Optional accessories:
    771000-6305 extension 5 meters
    771000-6310 extension 10 meters
    771000-6315 extension 15 meters

    Suitable for:
    Universal Various models Various years
    applicationUniversal
    Warranty2 years

  • Applicability

    Universally applicable
