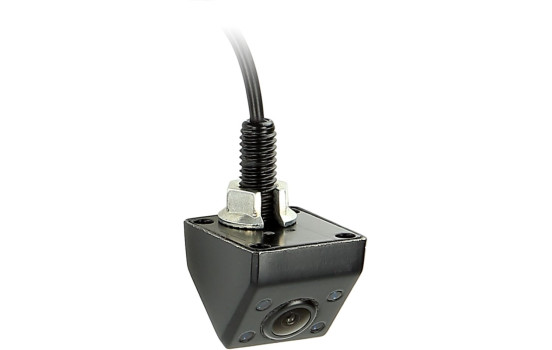

Reversing Camera (square) - sub & built up-construction

Universally applicable

Reversing Camera (square) - sub & built up-construction Reversing Camera (square) - sub & built up-construction, Image 2
  • Reversing Camera (square) - sub & built up-construction
  • Reversing Camera (square) - sub & built up-construction, Thumbnail 2

Product number: 1688346

Manufacturer number: 771000-6008

EAN: 4026724334708

€ 96,56

Incl. VAT
View product specifications
In stock
Delivery 17-04-2026
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Design: plastic
    Color: black
    Extras: auxiliary lines and mirror function via jumper, night vision
    Image sensor: 1/4" CMOS
    TV system: NTSC
    Effective pixels: 720 x 576
    Lens: 1.9mm / F 2.0
    Min.Lux: 0 Lux with active night vision
    Resolution: 480 TV lines
    Lens angle: 140°
    Viewing angle: horizontal 115° vertical 80° + 5°
    IP rating: IP 67
    Terminal: 4-pin mini plug (male) 5.2mm
    Power supply: DC 12V + 10%
    Power consumption: 60mA during active night vision function
    Operating temperature: -30°C - 75°C
    Storage temperature: -40 ° C - 80 ° C
    Dimensions: L / W / H - 26 mm / 29 mm / 21 mm

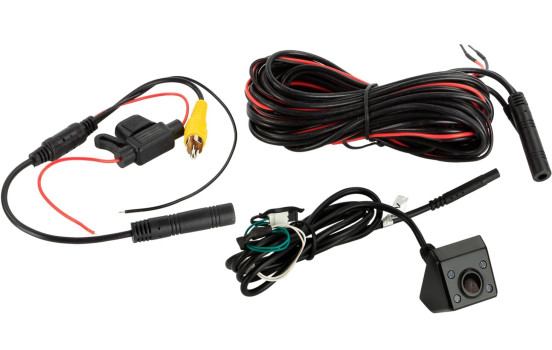

    Pigtail at the camera:
    1 meter cable with 4-pin mini plug (male) 5.2 mm incl. 2 jumpers
    6.5 meter extension cable incl. 3 meter power wire to connect to the reversing light
    and an insert cable to connect to the power supply of the device
    4-pin mini plug (female) 10 mm and plug (male) 5.2 mm
    0.2 meter power harness incl. fuse and video connector (RCA)
    Optional accessory:
    771000-6305 Extension cable 5 meters
    771000-6310 Extension cable 10 meters
    771000-6315 Extension cable 15 meters

    Suitable for:
    applicationUniversal
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    17-04-2026
