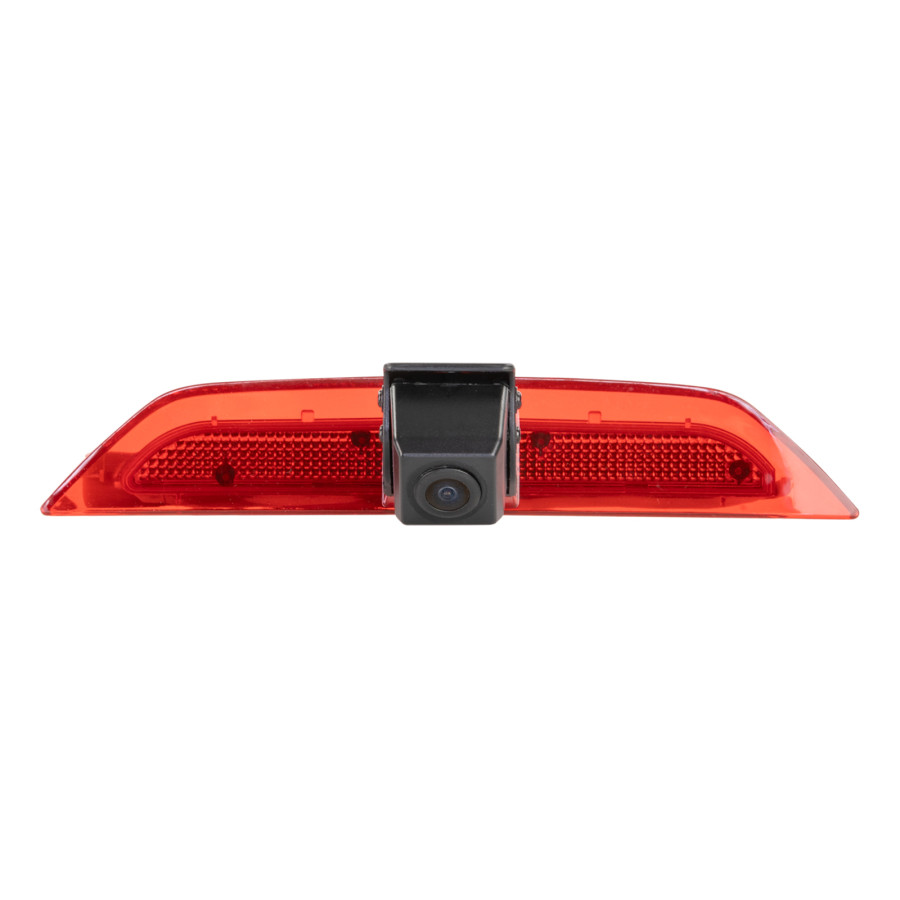

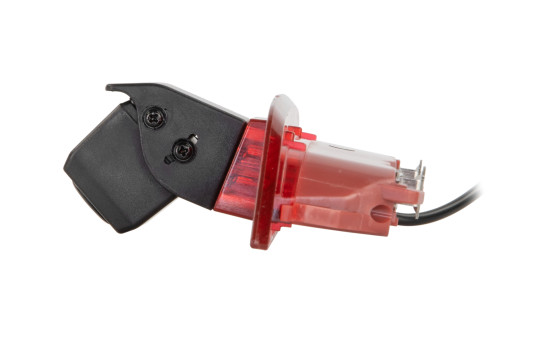

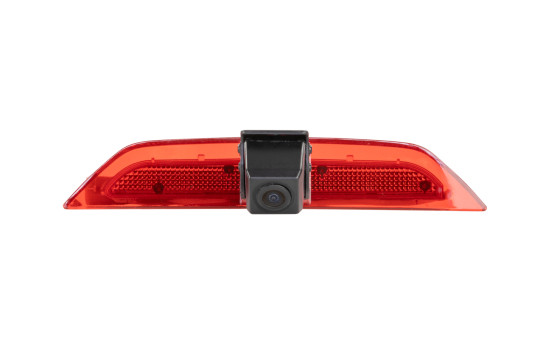

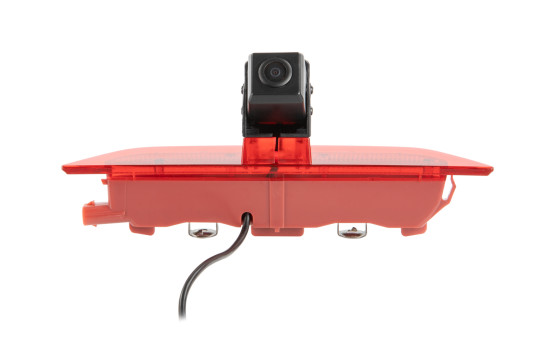

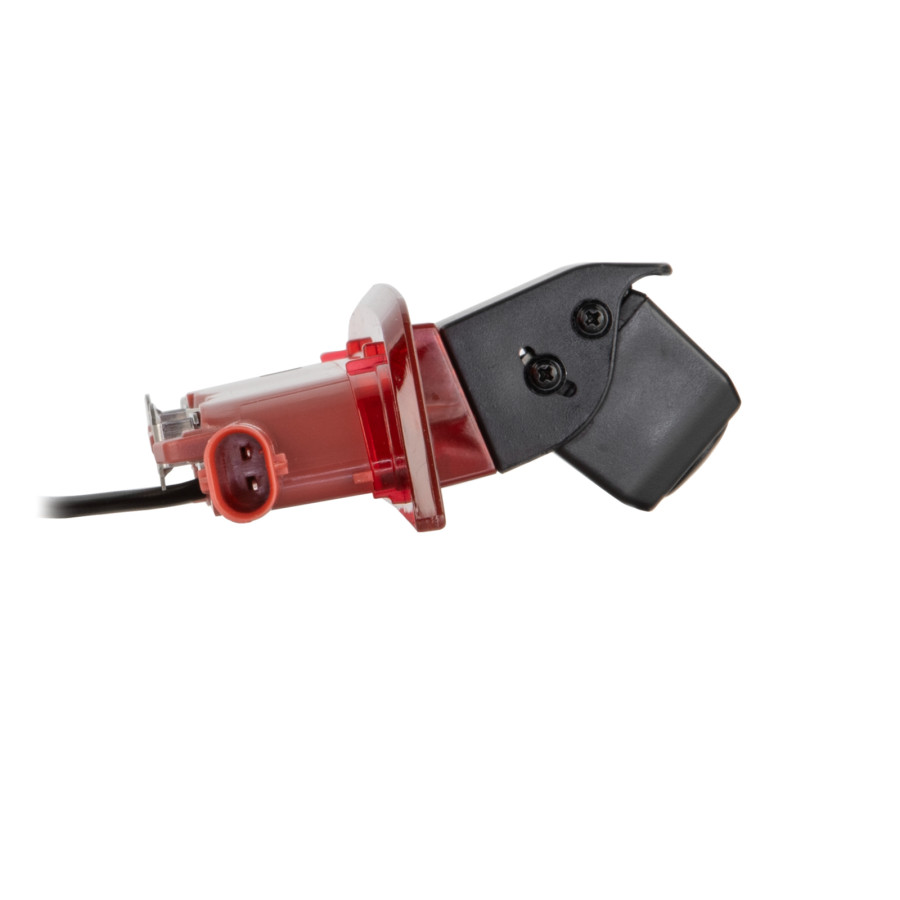

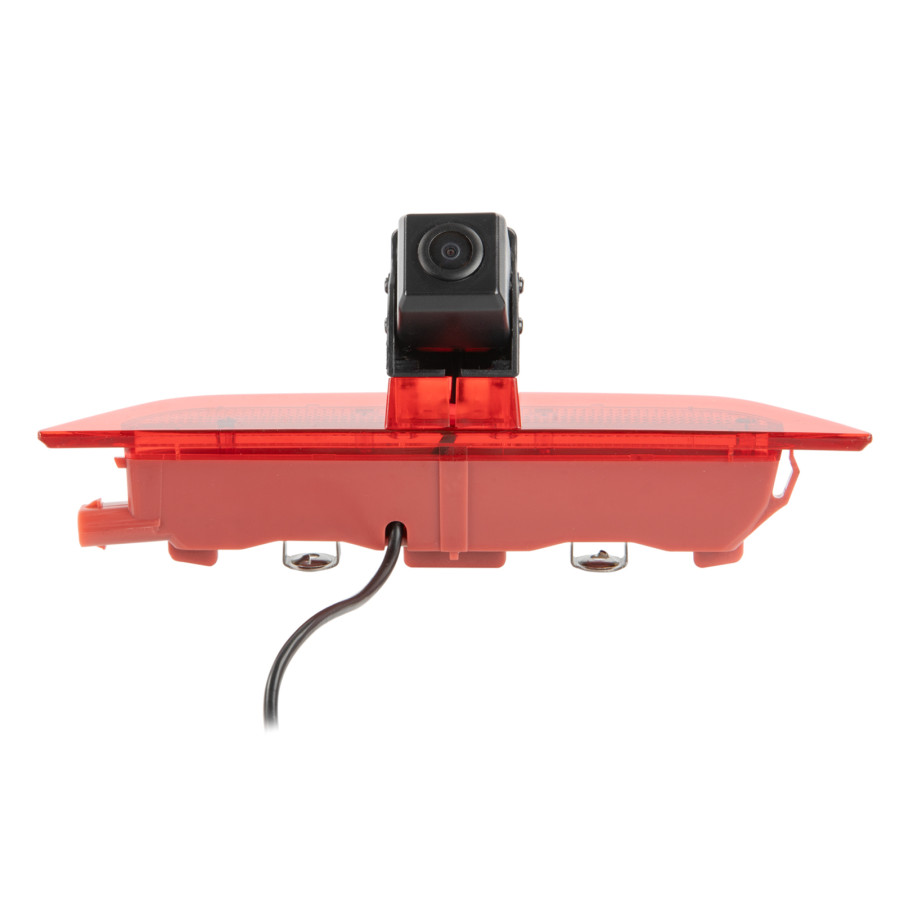

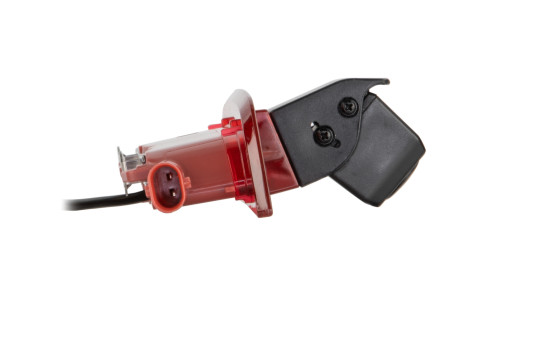

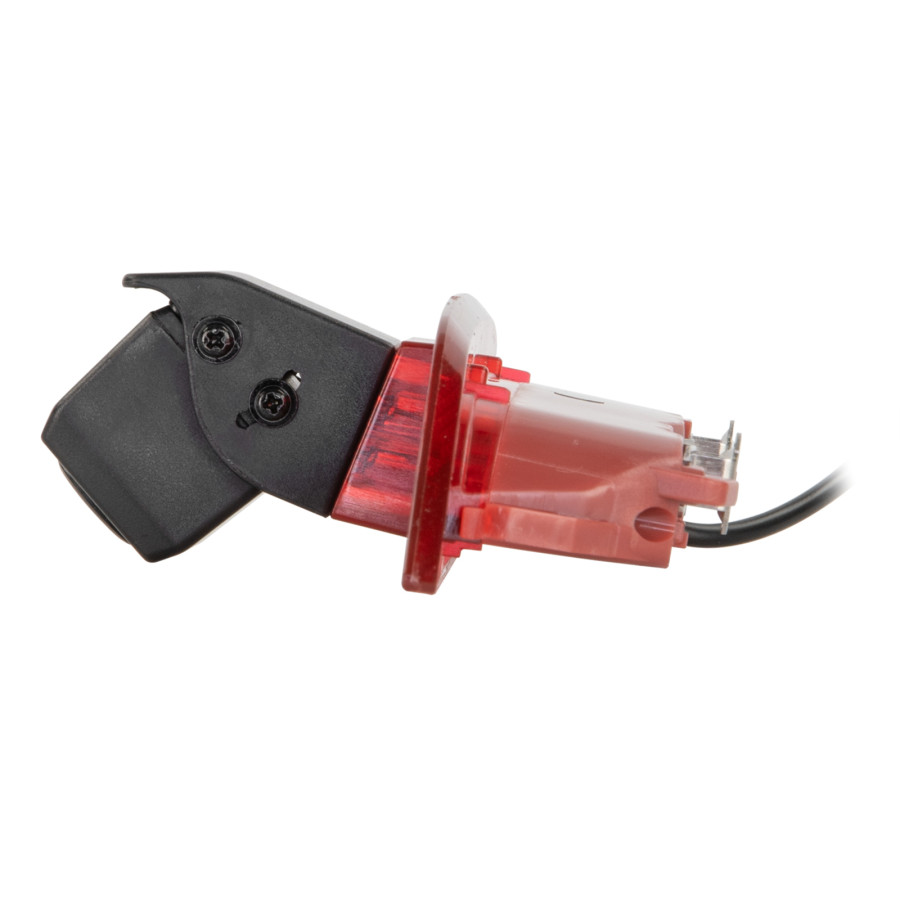

Reversing camera Tourneo Connect / VW Caddy

Rear view camera Ford / VW

Ford
Ford Tourneo Connect (SK) 05/2022 - 2025

VW
VW Caddy V (SK) 11/2020 - 2025

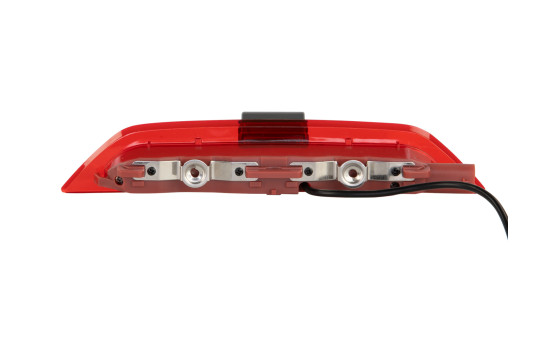

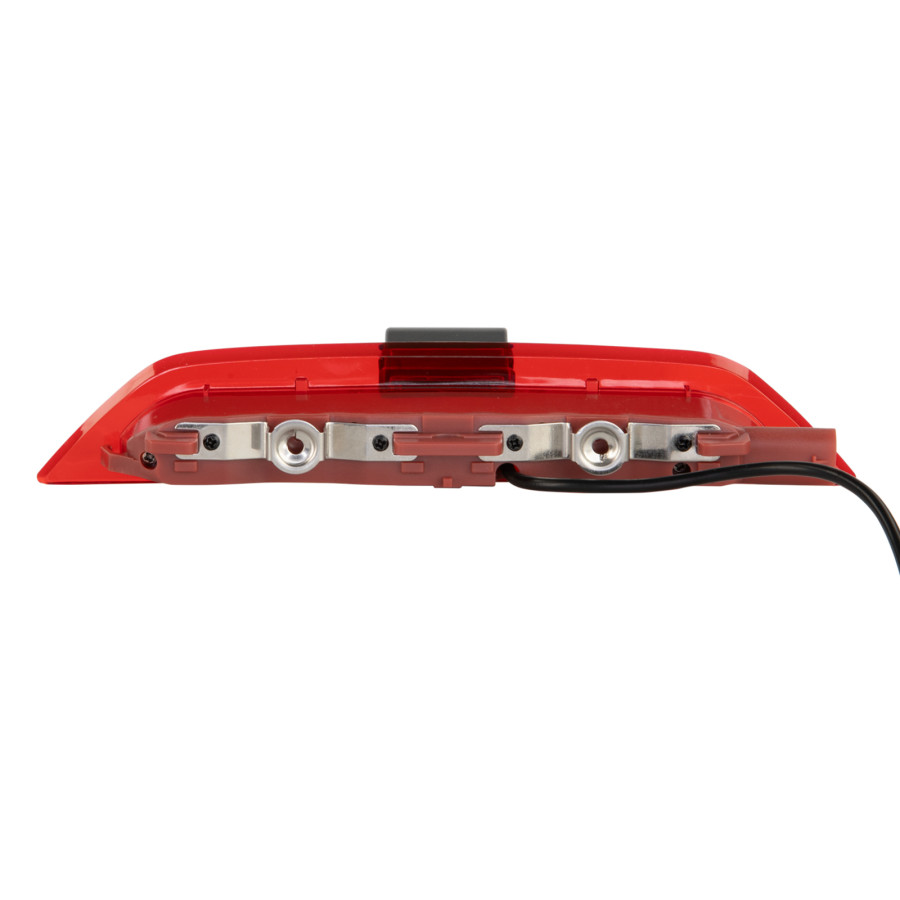

to replace the OEM 3rd brake light

with guide lines / adjustable viewing angle

Remark:

ACV cameras are suitable for continuous use at +12 V.

Before installation, check the viewing angle and alignment of the camera at the installation location using a test monitor.

Camera operating voltage: +3 V.
Camera power supply: +12 V / +24 V.

Connection without a +3V voltage converter included in the scope of delivery will damage the camera.

Vehicles with a single rear door.

connection:
red +12V switched, loadable, secured
black mass body direct

RCA(m) yellow: video

jumper:
green: activate/deactivate guides

Camera product features:

Design: plastic
Color: black/red
Extras: guide lines via jumper and adjustable viewing angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 2.6 mm
Resolution: 600 TV lines
Lens angle: diagonal 160° + 5°
Viewing angle: horizontal 115° vertical 80° + 5°
IP rating: IP68
Connection: 4-pin ACV system connector (m) Ø5.2 mm
Operating voltage: +3 V DC
Power supply: +12 V / +24 V DC > with voltage converter
Current consumption: 100 mA
Operating temperature: -20 °C - 70 °C
Storage temperature: -40 °C - 80 °C

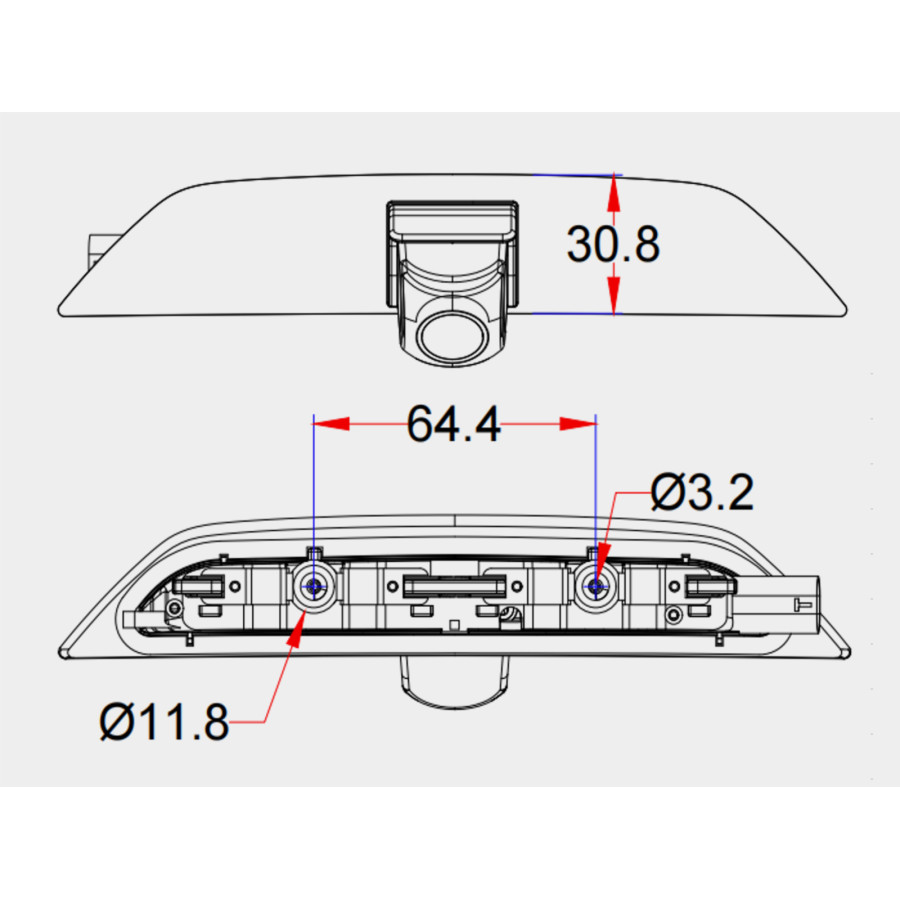

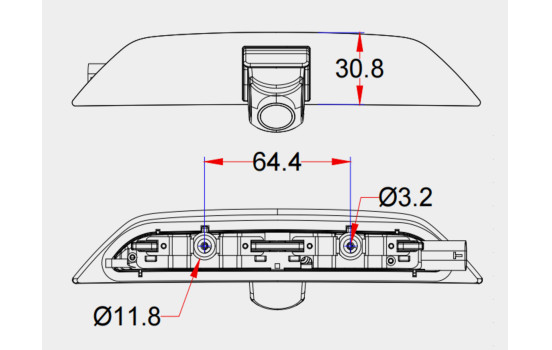

Dimensions: OEM 3rd brake light

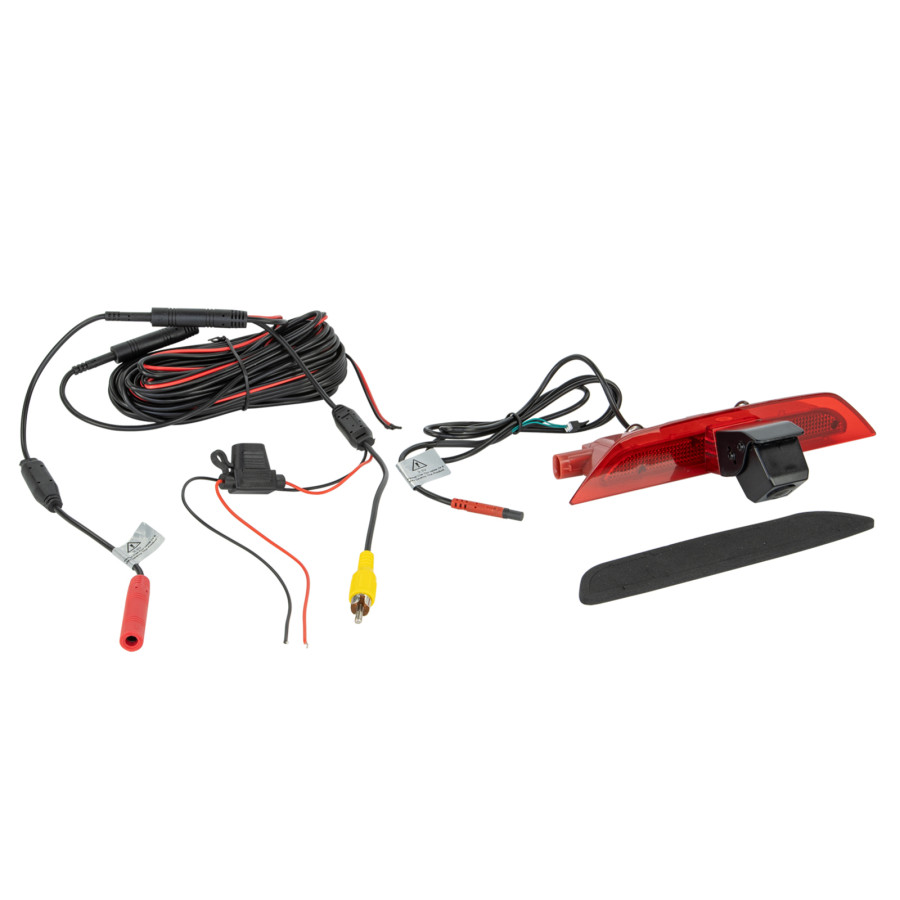

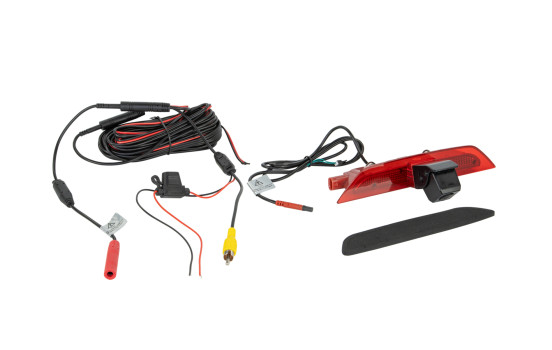

Pigtail at the camera 3.3 m +/-:
4-pin acv system connector (m) Ø5.2 mm
1 jumper

Voltage converter +3 V:
4-pin acv system connector (v) Ø10 mm / 4-pin acv system connector (m) Ø5.2 mm

Extension cable 6.5 m +/-:
4-pin ACV system connector (female) Ø 10 mm / 4-pin ACV system connector (male) Ø 5.2 mm
power cable red 3 m +/- insertion cable: connection to camera / connection reversing light on monitor
black grounding cable 3 m +/- insertion cable: connection body direct/GND on camera / body direct/GND on monitor

Connection cable 20 cm +/-:
4-pin ACV system connector (female) Ø10 mm
red: food
black: GND
RCA (m) yellow: video

Installation accessories:

camera connection with interfaces:
Solid state closing relay 2V-12V/1.5A max > article: 40-AD-REMOTE
camera connection with reversing light:
Rear-view camera voltage stabilizer reversing signal > article: 771000-6100

Optional accessory:

Camera cable extension for ACV camera 5 m > article: 771000-6305
Camera cable extension for ACV camera 10 m > article: 771000-6310
Camera cable extension for ACV camera 15 m > article: 771000-6315

Suitable for:
Ford Tourneo Connect 2022-2025
Volkswagen Caddy 2020-2025

---

application	Ready
Warranty	2 years
