ACV

Reversing camera universal Caravan double shutter 150°

Universally applicable

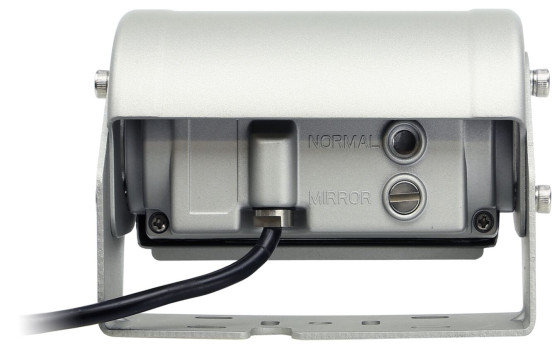

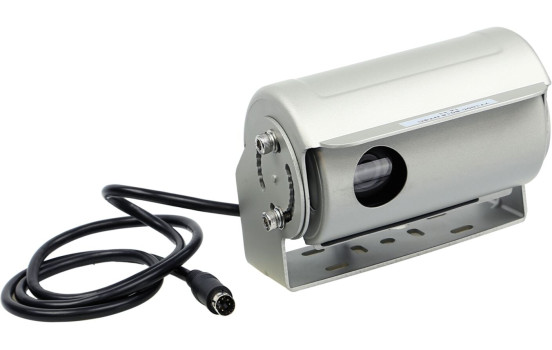

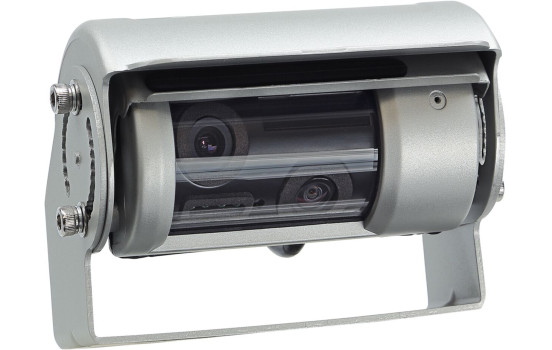

Reversing camera universal Caravan double shutter 150° Reversing camera universal Caravan double shutter 150°, Image 2 Reversing camera universal Caravan double shutter 150°, Image 3
  • Reversing camera universal Caravan double shutter 150°
  • Reversing camera universal Caravan double shutter 150°, Thumbnail 2
  • Reversing camera universal Caravan double shutter 150°, Thumbnail 3

Product number: 1688353

Manufacturer number: 771000-6015

EAN: 4026724318340

€ 605,84

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Shipment within 12 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: 056 771 9932

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Camera Product Features:
    Material: metal
    Color:Silver
    Extras: 2 camera lenses, camera heating, wipe function, audio and night vision function
    Sensor type: 1/4" Sony CCD
    Image system: PAL color
    Effective pixels: 728 x 512
    Lens: 1.9mm / F 2.0
    Min.Lux: 0 with active night vision function
    Resolution: 480 TV lines
    Viewing angle: 150° (diagonal)
    Viewing angle camera 1: horizontal 105 + 5° vertical 75 + 5°
    Viewing angle camera 2: horizontal 48 + 5° vertical 34 + 5°
    Dust and water resistant: IP68
    Connection: 6-pin connector
    Supply voltage: 12V DC voltage + 10%
    Power consumption: 200mA with night vision function enabled
    Operating temperature range: -20°C - 75°C
    Storage temperature: -40°C - 85°C
    Dimensions (with holder): L / W / H / - 127.2 mm / 91.82 mm / 88.98 mm
    Connection cable to the camera:
    1 meter cable with 6-pin connector
    Cable set:
    1.5 meter cable with 6-pin connector
    15 meter extension incl. 3 meter power cable for connection to the reversing light
    and through wiring to the connection cable on the terminal device
    0.2 meter power connection cable including fuse and video connection cable (RCA)

    Suitable for:
    Universal Various models Various years
    applicationUniversal
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV
