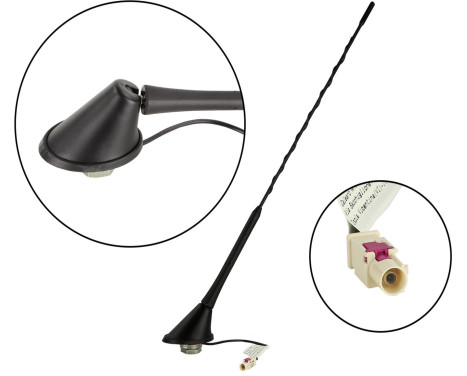

Roof antenna AM/FM 60° rod inclination 12V Phantom anti-theft

Universally applicable

Roof antenna AM/FM 60° rod inclination 12V Phantom anti-theft

Product number: 1684583

Manufacturer number: 15-7677876

EAN: 4026724122220

€ 50,82

Incl. VAT
View product specifications
Not available
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Shipment within 9 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: 056 771 9932

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

  • Specifications

    Roof antenna AM/FM
    Type 16V anti-theft

    Note:
    NEW ITEM FOR 15-7677918
    CONNECTION AND ACCESSORIES CHANGED
    OPTIONAL ACCESSORIES LISTED BELOW:
    Types of reception: AM/FM

    Mounting:
    Installation location: rear roof
    Bore round: 19 mm
    Square hole: 15mm x 15mm
    Bar length: 405 mm
    Bar slope: 60° foldable
    Bar type: anti-noise
    Thread: M5

    Dimensions:
    Total height: 440mm
    Antenna base: L = 60 mm / W = 43 mm
    Connection:
    AM/FM: Fakra B(m) white RG174 / 180 mm
    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5MHz-108MHz

    Power supply:
    AM/FM: +12V phantom power
    Energy consumption:
    AM/FM: 60mA max

    Impedance:
    AM/FM: 50 ohm

    Wave ratio:
    FM: <4.5:1
    Options:
    AM/FM:
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
    Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
    Antenna adapter Fakra(m) > ISO(m) 12V Phantom: 1524-04
    Replacement stick without base:
    Antenna rod AM/FM 41cm M5: 15-7551037

    Suitable for:
    AM FM
    Universal
    MaterialPlastic
    FootIncluding
    Length40.6 cm
    applicationSprite
    CableIncluding
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    03-10-2026
