DLS

DLS 4"/100mm 2-way component speakers RC4.2

Universally applicable

DLS 4"/100mm 2-way component speakers RC4.2 DLS 4"/100mm 2-way component speakers RC4.2, Image 2 DLS 4"/100mm 2-way component speakers RC4.2, Image 3 DLS 4"/100mm 2-way component speakers RC4.2, Image 4 DLS 4"/100mm 2-way component speakers RC4.2, Image 5 DLS 4"/100mm 2-way component speakers RC4.2, Image 6 DLS 4"/100mm 2-way component speakers RC4.2, Image 7 DLS 4"/100mm 2-way component speakers RC4.2, Image 8 DLS 4"/100mm 2-way component speakers RC4.2, Image 9
  • DLS 4"/100mm 2-way component speakers RC4.2
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 2
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 3
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 4
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 5
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 6
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 7
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 8
  • DLS 4"/100mm 2-way component speakers RC4.2, Thumbnail 9

Product number: 1688054

Manufacturer number: 610RC42

EAN: 7331644821403

€ 175,81

Incl. VAT
View product specifications
In stock
Delivery 17-07-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast delivery
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Speakers Reference

    RC4.2

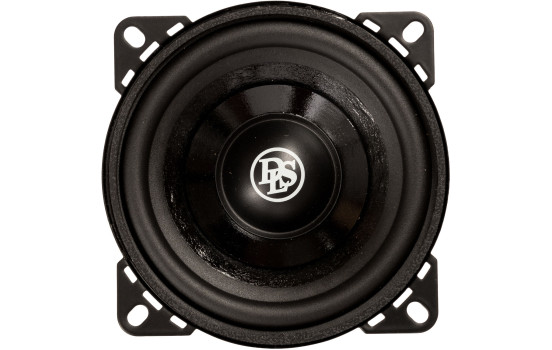

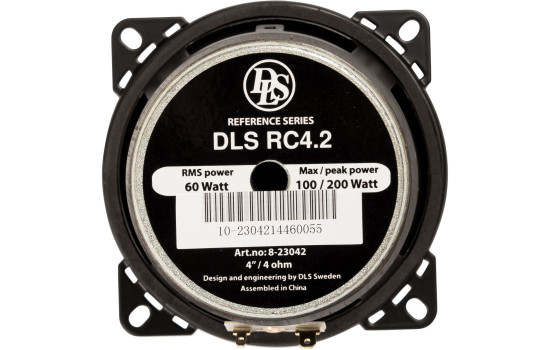

    The Reference Power choice when 4" is the maximum installation size. Coated paper woofer with rubber edge,

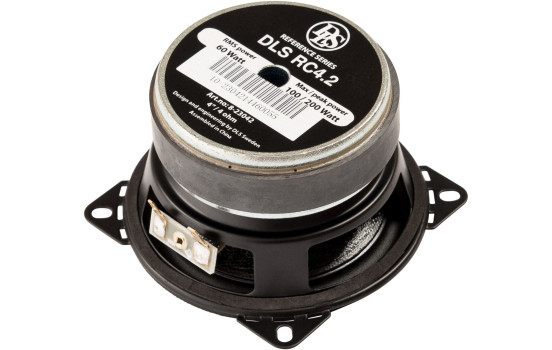

    80 mm magnet with ventilated pole for high load capacity.

    High-quality crossovers with tweeter level selection to fine-tune 25mm silk dome tweeters for perfect in-car treble balance.

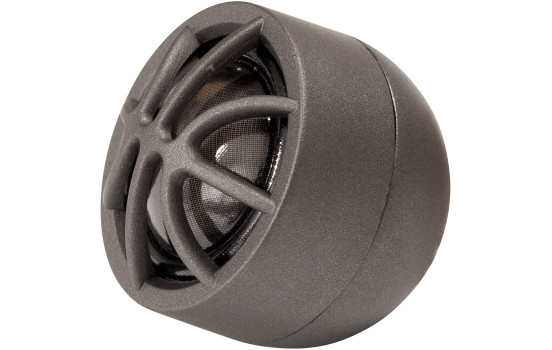

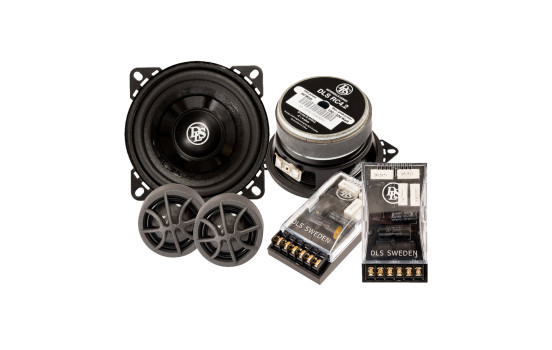

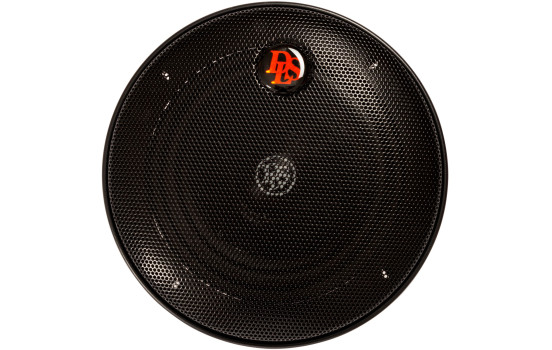

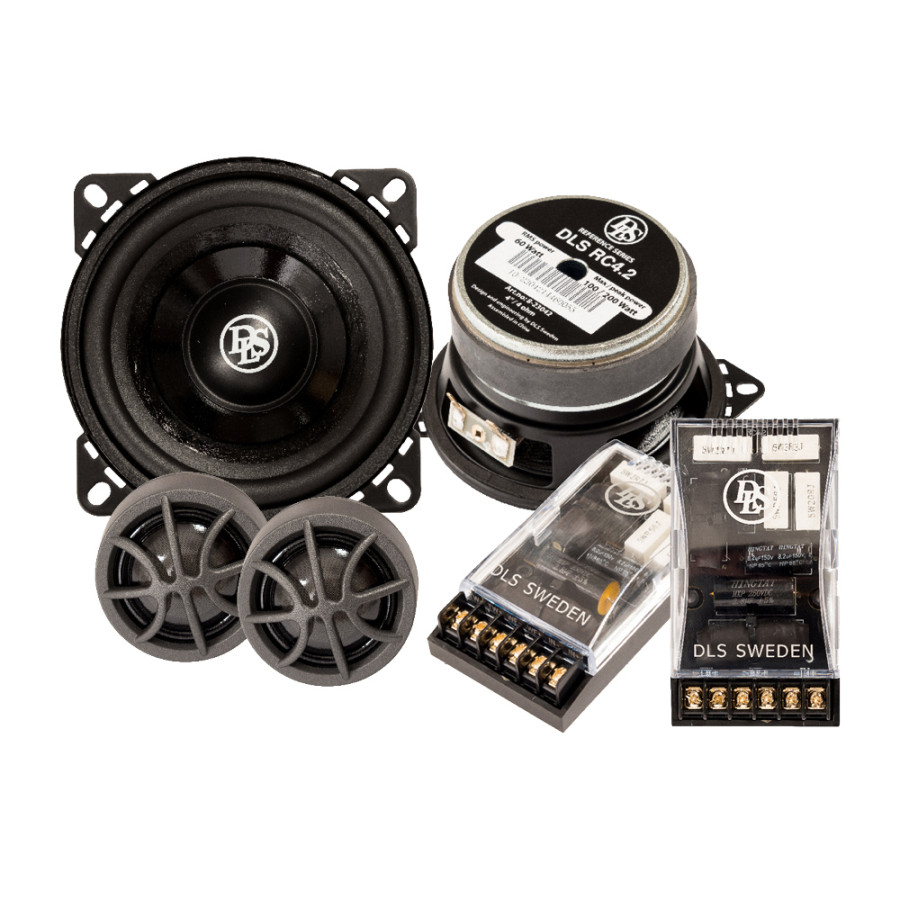

    Slanted/built-in tweeter cups and woofer grilles are included in the kit.

    Woofer size 10 cm (4?)

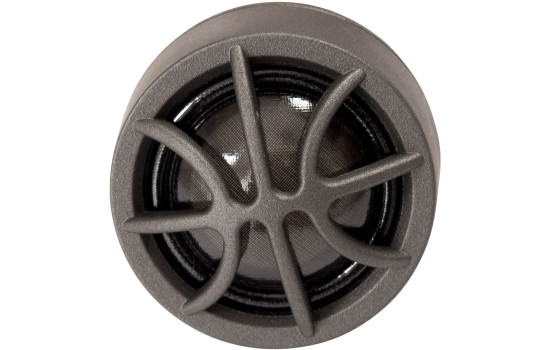

    Tweeter RC25, 25 mm (1.25?) silk dome tweeter with copper rings
    Power 60 W RMS / 100 W max / 200 W peak power
    Impedance 4 ohms
    Frequency range 65 - 22 000 Hz
    Sensitivity 86 dB (1W/1m)

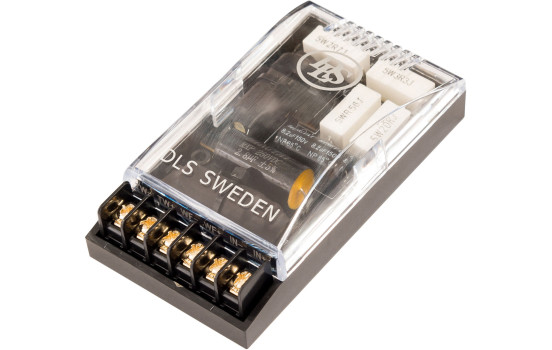

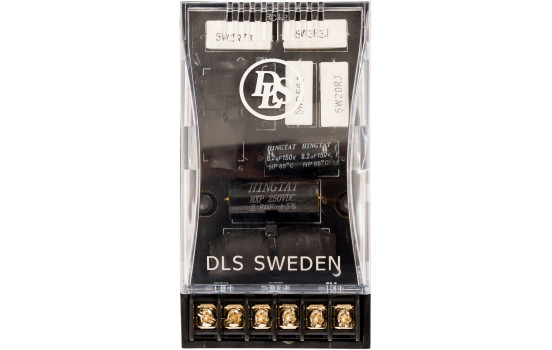

    Crossover Filterbox with 12 dB slope (HP & LP)
    Crossover point (Hz) 4500 Hz
    Dimensions of the filter box 120 x 66 x 33 mm (4.72 x 2.6 x 1.3?)
    Outer diameter of the woofer 102 mm (4?)
    Cone material Coated paper
    Magnet size 80 mm (3.15?)
    Mounting depth 57 mm (2.25?)
    Mounting hole 97 mm (3.82?)

    T/S parameters
    single V/C Fs 80 Hz Re 3.3 Ohm Qms 4.8
    Vas 1.4 liter Vas 0.05 Cuft Qes 0.68
    Qts 0.6 Sd cm² BL 5.4

    Suitable for:
    100mm
    Diameter100 mm
    Power100 watt
    applicableUniversal
    TypeComposet
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    DLS

  • Delivery time

    Expected delivery date:

    17-07-2026
