2-DIN kit Fiat Doblo (ZAF 263)/ Opel Combo D

Radio panel 2-DIN and radio connection set steering wheel remote control Fiat
acv premium quality
Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.
Installation kits contain all the parts needed to replace an OEM device.
Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.
Please note the installation recommendations for the individual components.
Steering wheel remote control connection kits provide all the necessary analog signals to operate a retrofit radio.
No vehicle features or settings are supported.
Before installation, please check the OEM device and vehicle menu for various settings.
Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.
Compare the adapter plugs shown with those in your vehicle and make sure they match visually and technically.
Also check to see if one of the specified original factory radios was installed in your vehicle.
Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.
Remark:
CAN bus
Connection: ISO / Mini ISO
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM antenna ISO(m) > DIN(m)
blue: +12V Amp Remote Control*
Installation cannot be done afterwards (see BDA)
Vehicles with Blaupunkt / Delphi / VDO OEM device
Vehicles with CAN bus in ISO power connector
Vehicles without analogue steering wheel remote control in mini ISO connector C-2
Vehicles without OEM device Visteon / Daiichi / UConnect
Vehicles with Blue&Me > Module must remain installed
Radio panel with fixed ventilation openings
DIP switch settings for the aftermarket device manufacturer (see BDA)
Suitable for the following vehicles:
Fiat Doblo (ZAF 263) 02/2010 - 01/2015
Opel Combo D (Combo D) 01/2012 - 08/2018
Color: black
The following signals are provided:
Re-imported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal
Output load capacity: 250 mA max.
Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.
Steering wheel remote control
Optional:
*Active system adapter Alfa Romeo/Lancia ISO>ISO > Article: 13-1001-50

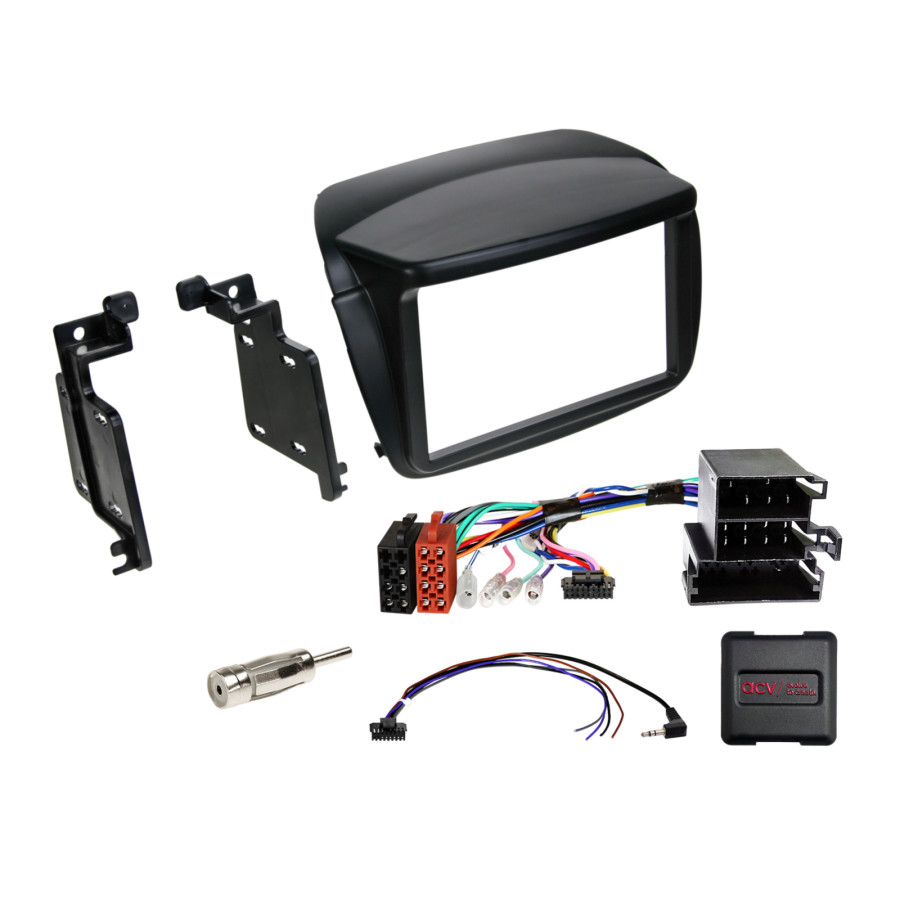

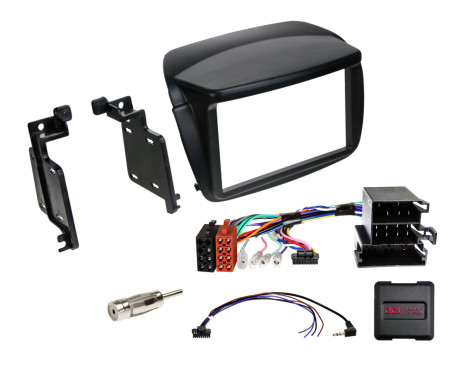

Scope of delivery:
2-DIN radio panel Fiat Doblo(ZAF 263)/Opel Combo D > Article: 381094-26
LFB Citroen/Fiat/Ford/Opel/Peugeot Mini ISO Multilead loose > Item: 42sfa004-0
Antenna adapter ISO(f)>DIN(m) loose > Article: 1500-00-0
General installation instructions:
Check:
1: Check all operating functions and vehicle setting functions of the OEM device.
2: Disassemble the OEM device so that it is de-energized.
3: De-energize all interface connections and check for correctness and continuity.
Connection and connection sequence:
1: Disconnect the interface settings and hardware configuration.
2: Check the configuration of the radio connection cable.
3: Connect the radio connection cable according to the instructions for the device to be connected later.
4: Connect all other connections according to the manual of the expansion device.
5: Connect the complete installation to the vehicle using the live connection cable.
6: Software configuration of the interface according to the instructions in the article text and in the BDA.
7: Configuration of the retrofit device according to the operating instructions for the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others
8: Steering wheel remote control and vehicle function test
Changes to the hardware configuration of the interface and the radio connection cable:
1: Disable changes
2: Connection after change see above 5 to 8
In the event of a failure of the interface or the vehicle:
1: Reset to OEM device
2: Operate OEM device
3: Calm CAN bus
4: Check the hardware configuration of the interface
5: Connect after CAN bus rest see above 5 to 8
The connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or in the technical manual are only intended as a guideline and information for trained specialist personnel.
Additional connections, changes to the wiring harness cable configuration or the use of alternative connections or connection extensions:
1: Connections and modifications may only be carried out by trained personnel
2: Connections and modifications must be checked for any errors before connection.
manufacturer's approvals or manufacturer's warranty terms that may be affected by the modifications.
3: Connections and modifications must be checked for operation and correctness by measuring and calibrating using the vehicle's wiring mapping diagram before connection.
4: Connections and changes are carried out under your own responsibility without any guarantee of operation.
5: Connections and modifications are carried out under your own responsibility, without any guarantee for damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may void the product warranty.

Suitable for:
Fiat Doblo 2010-2015
Opel Combo 2012-2018

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
